ED Series
Specially designed for:
-
Transportation
-
Industrial control
-
Military / Marine
-
Healthcare
ED700
7 inches rugged display:
-
1024x600px (WSVGA)
-
700 nits
-
Ethernet, USB, CAN 1.0 / 2.0
ED800
8 inches rugged display:
-
800x600px (SVGA) / 1024x768 (XGA)
-
500 and 1000 nits options available
-
Ethernet, USB, CAN 1.0 / 2.0 (M12 connectors)
ED1000

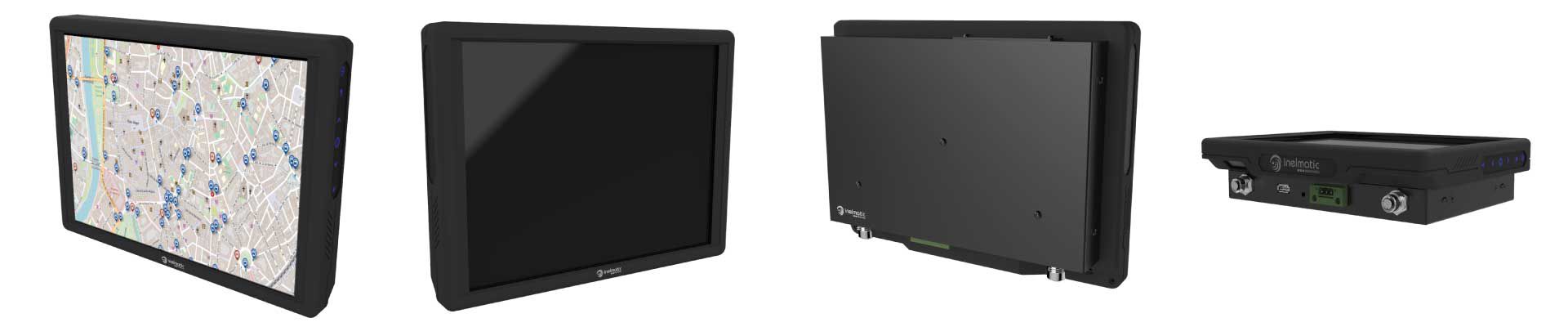

Industrial and vehicular metal frame monitor:
-
10.4" in 1024x768px
-
600 and 1000 nits options available
-
Antiglare and antireflective optical finish
ED1500
Specially designed for indoor use:
-
15" 1024x768px
-
Ethernet input (DisplayLink)
-
OEM / Branded options
ED1501

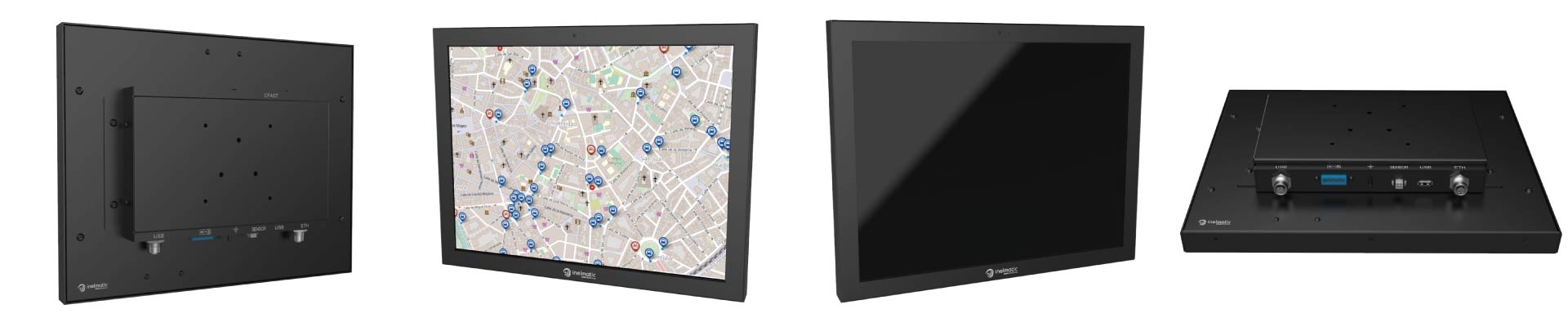

Railway passenger information (PIS) Display
-
15" in 1024x768px
-
500 nits and 1000 nits options
-
Ethernet, USB, RS485
-
EN50155, EN45545 certification
ED1502

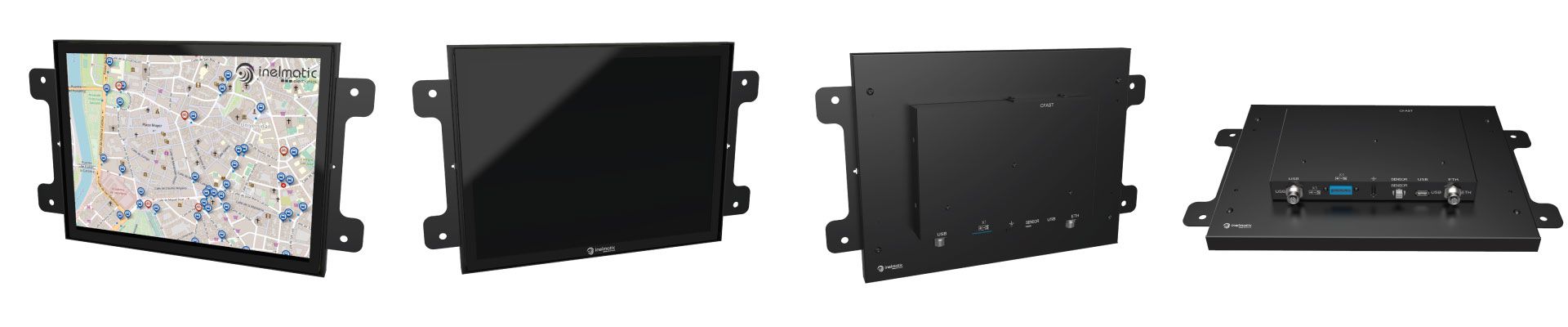

Railway passenger information (PIS) Display
-
15" in 1024x768px
-
500 nits and 1000 nits options
-
Ethernet, USB, RS485
-
EN50155, EN45545 certification
Rugged metal frame monitors with CPU - ED series

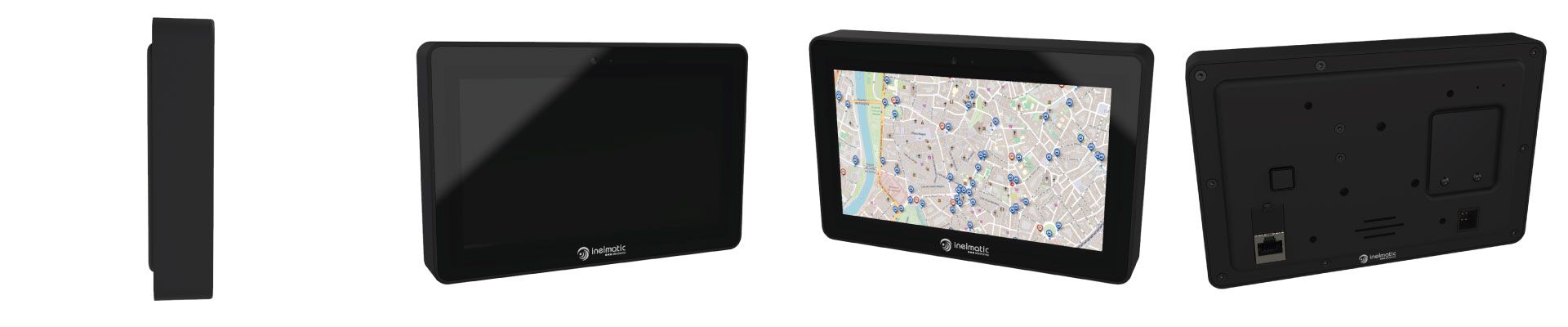

The ED Series are industrial grade and vehicular display with CPU: Intel Atom or Quad Core ARM. For automotive and transportation, this series is compliance with international regulations for a wide range power supply requirements.

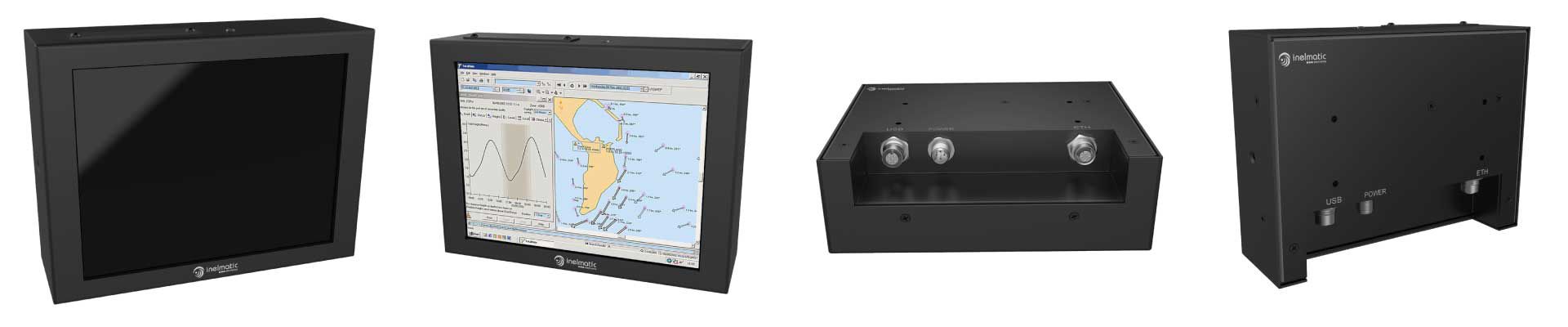

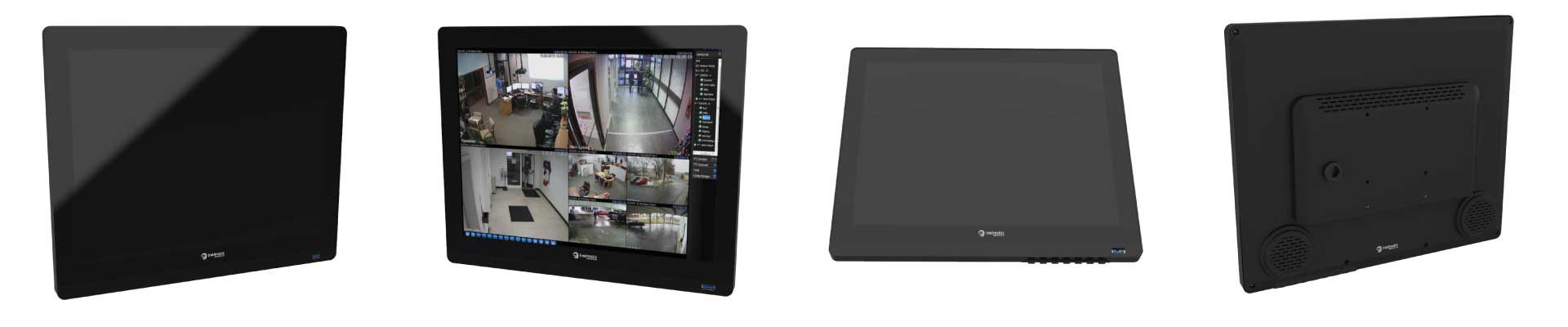

The ED Series include a wide view angle panel and high brightness TFT with a LED backlight. In terms of optical features, there is a optional treatment for Sunlight readable and transflective enhancements. Resistive & Multi-touch Projected Capacitive touch panel options available to add interactivity.
| Model | Size | Resolution | CPU |
|
ED700
|
7" |
1024x600px (WSVGA) |
Intel / ARM |
|
ED800
|
8" |
800x600px (SVGA) 1024x768px (XGA) |
Intel / ARM |
|
ED1000
|
10" |
1024x768px (XGA) |
Intel / ARM |
|
ED1500
|
15" |
1024x768px (XGA) |
Intel / ARM |
|
ED1501
|
15" |
1024x768px (XGA) |
Intel / ARM |
|
ED1502
|
15" |
1024x768px (XGA) |
Intel / ARM |
General specifications
General
7 / 8 / 10 / 15 Inches
(Ask for a specific size)
C o l o r s
256K
IP Ingress Protection
IP20, IP42, IP54, IP65 optional
Ethernet / USB /UART
Customizable interfaces
Mechanical
Dimension
(see below drawings)
Mount type
Open frame type & VESA 75mm
Operation Temperature
-25ºC to +70ºC
Vibrations
1G 2-50Hz / 10G 11ms
Applications
Automotive
Public Transportation
Industrial
Healthcare
ED700
ED700 is a 7 inches display with integrated CPU for public transportation and vehicles, specially designed for driver console / driver interface. It has very low power consumption and a rugged design. It’s the ideal solution for integration in bus fleets, bus coaches and trains.
The ED700 includes a fully configurable manual and automatic dimmer, a high featured controller with automatic and manual backlight adjustment, depending of the ambient light. Besides, the ED700 optionally includes a resistive / capacitive (PCAP) touch panel for interactivity.
The ED700 is available with Ethernet input as standard, and Optional WiFi. It can be mounted with VESA75 or stand alone mode.
General specifications
Size
7 inches TFT
Aspect
16:9 / Active Area(154.2mm x 85.9mm)
Native resolution
1024 x 600 px
Interfaces
Ethernet(10/100Mbps) / WiFi (Optional)
Audio
Optional Audio Output Stereo 2x1.5W
Touch
Resistive 5 Wires / Projected Capacitive / None
Power supply
9-36VDC / 43-160VDC / 14-160VDC
Power consumption
15W
Mounting
Stand Alone, VESA75
Warranty
24 months
Certification
ECE-R10, eMark
IP
IP42 (IP65 Optional)
Response time
16 ms
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17
Frequency
1.8GHz
DDR
Up to 4G DDR4
Graphics
Mali-T760 MP4 GPU
Storage
Internal 8 to 16G eMMC , external TF/SD
Watchdog
Configurable watchdog
CPU Specification (Intel)
Cores
E3815 Single Core / E3825 Dual Core / E3845 Quad Core
Frequency
1.46Ghz / 1.33Ghz / 1.91Ghz
DDR
Up to 4GB DDR4
Graphics
Intel Graphics
Storage
Internal 8GB to 16GB eMMC , external C-FAST / TF
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
187.8 x 124.1 x 30.45mm (see drawing)
Weight
750 gr
Enclosure
Plastic / Aluminum
Operation temperature
-25ºC to 70ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
700 nits
Dimmer
Fully configurable Dimmer with Internal Sensor (opt) and External Sensor (opt)
Backlight
LED. min.50000h
MTBF / Lifespan
Controller and LCD: 100.000h
Contrast
800:1
Angle
170º H, 170º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight readable, NVIS B compliant (opt)
I/O
Ethernet
1 x Base 10/100, Optional Gigabit, M12 Connector D Coded
USB
USB 2.0 x 1 Type A
Ignition
Integrated digital input for IGN control
RS232/485
Optional RS232 / RS485 Port (M12 Connector)
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional DVI / HDMI Output
Audio
Optional Line In / Line Out
ED800
ED800 is a 8 inches monitor with integrated CPU for transportation and public vehicles. Integrating Intel ATOM Bay Trail or Apollo Lake CPUs. Conceived for fleet management using a rugged chassis with special coating for marine applications. Including armoured resistive touch panel to add interactivity while maintaining its reliability under salt water splashes.
The ED800 is available with Ethernet , USB and RS485 in M12 connectors. It can be mounted with VESA75. Optional dash and panel mount accessories are available.
General specifications
Size
8 inches TFT
Aspect
4:3
Native resolution
800 x 600 / 1024 x 768px
Interfaces
Ethernet / USB / RS485
Audio
Optional Audio Output
Touch
Resistive 5 Wires / Projected Capacitive
Power supply
9-36V DC / 43-160VDC / 14-160VDC
Power consumption
18W (300 nits) / 27W (750 nits)
Mounting
Stand Alone, rear custom fixtures
Warranty
24 months
Certification
CE* (*upon request)
Response time
16 ms
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17
Frequency
1.8GHz
DDR
Up to 4GB DDR4
Graphics
Mali-T760 MP4 GPU
Storage
Internal 8GB to 16G eMMC , external TF/SD
Watchdog
Configurable watchdog
CPU Specification (Intel)
Cores
E3815 Single Core / E3825 Dual Core / E3845 Quad Core / E3350 / E4200
Frequency
1.46Ghz / 1.33Ghz / 1.91Ghz
DDR
Up to 4GB DDR4
Graphics
Intel Graphics
Storage
Internal 8GB to 16GB eMMC , external C-FAST / TF
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
198.5 x 148.5 x 29.5 mm (see drawing)
Weight
2 Kg
Enclosure
Steel and Aluminum, Powder Paint
Operation temperature
-20ºC to 70ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
500/1000 nits
Backlight
LED. min. 50.000h
MTBF / Lifespan
Controller and LCD: 100.000h
Contrast
Min 1000:1
Angle
178º H, 178º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight readable, NVIS B compliant (opt)
I/O
Ethernet
1 x Base 10/100, Optional Gigabit, M12 Connector D Coded
Daisy Chan
DVI/HDMI or Ethernet
USB
USB 2.0 x 1 Type A
Ignition
Integrated digital input for IGN control
RS232/485
RS232 / RS485 Port (M12 Connector)
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional DVI / HDMI Output
Audio
Optional Line In / Line Out
ED1000
ED1000 is a 10 inches monitor with integrated CPU for transportation and public vehicles. Integrating Bay Trail or Apollo Lake CPUs. Conceived for fleet management, such as bus, tram and trail driver's console. It's lightweight and rugged, including a projected capacitive touch panel with tempered glass and sunlight readable enhancement.
The ED1000 includes fully configurable manual/automatic dimmer to adopt to the light conditions. It also includes a diagnostic port, bringing the possibility to control the dimmer and system status from the customer's application.
The ED1000 is available with Ethernet , USB and R485 ports in M12 connectors. It can be mounted with VESA75 for stand alone usage or from the sides for panel integration.
General specifications
Size
10.4 inches TFT
Aspect
4:3
Native resolution
1024 x 768px
Interfaces
Ethernet / USB / RS485
Audio
Optional Audio Output Stereo 2x1.5W
Touch
Resistive 5 Wires / Projected Capacitive / None
Power supply
9-36V DC / 43-160VDC / 14-160VDC
Power consumption
<20W
Mounting
Stand Alone
Warranty
24 months
Certification
EN50155*, EN45545* (*upon request)
IP
IP42
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17
Frequency
1.8GHz
DDR
Up to 4GB DDR4
Graphics
Mali-T760 MP4 GPU
Storage
Internal 8GB to 16GB eMMC , external TF/SD
Watchdog
Configurable watchdog
CPU Specification (Intel)
Cores
E3815 Single Core / E3825 Dual Core / E3845 Quad Core / E3930 Dual Core
Frequency
1.46Ghz / 1.33Ghz / 1.91Ghz / 1.2GHz
DDR
Up to 8GB DDR4
Graphics
Intel Graphics
Storage
Internal 8GB to 32GB eMMC , external C-FAST / TF
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
247.5 x 184.3 x 57.5 mm (see drawing)
Weight
1.5 Kg
Enclosure
Plastic and Aluminum, Powder Paint
Operation temperature
-20ºC to 70ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
600 / 1000 nits
Backlight
LED. min. 50.000h
MTBF / Lifespan
Controller and LCD: 100.000h
Contrast
Min 800:1
Angle
178º H, 178º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight readable, NVIS B compliant (opt)
I/O
Ethernet
1 x Base 10/100, Optional Gigabit, M12 Connector D Coded
Daisy Chan
DVI/HDMI or Ethernet
USB
USB 2.0 x 1 Type A, USB 2.0 x 1 M12 Connector A coded
Ignition
Integrated digital input for IGN control
RS232/485
RS232 / RS485 Port (M12 Connector)
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional DVI / HDMI Output
Audio
Optional Line In / Line Out
ED1500
The ED1500 is a Ethernet Display with PC, low cost and low power consumption, with PoE (power over ethernet) power supply. It's specially designed to give the possibility of a remotely located display for video management systems, such as screens for CCTV applications. Including a front USB, it brings the possibility to add up to 16 displays to a Windows / Linux system by using a Ethernet cable only.
ED1501
ED1501 is a 15 inches open frame display with integrated ATOM Integrating Bay Trail or Apollo Lake CPUs (ARM Quad option available), specially designed for railway (tram and train) refitting and upgrading existing systems. Including Ethernet, USB and RS485 ports in M12 connectors. Including a long lifetime LED backlight with 500 nits brightness and EN50155 and EN45545 certifications. Optionally, an anti-vandal or touch projected capacitive multi-touch panel can be integrated.
ED1502
ED1502 is a 15 inches metal frame display with integrated ATOM Integrating Bay Trail or Apollo Lake CPUs (ARM Quad option available), specially designed for railway (tram and train). Including Ethernet, USB and RS485 ports in M12 connectors. Including a long lifetime LED backlight with 500 nits brightness and EN50155 and EN45545 certifications. Optionally, an anti-vandal or touch projected capacitive multi-touch panel can be integrated.
