MF Series
Specially designed for wide sectors:
-
Transportation
-
Industry
-
Military / Marine
-
Healtcare
-

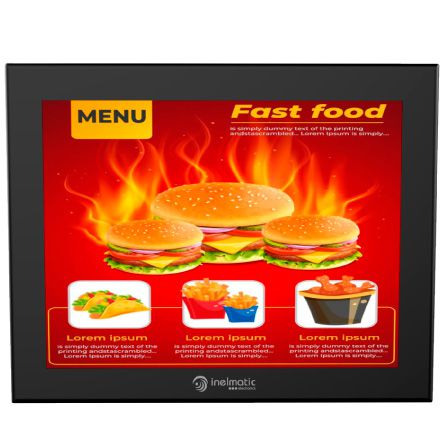

Digital Signage / Advertising

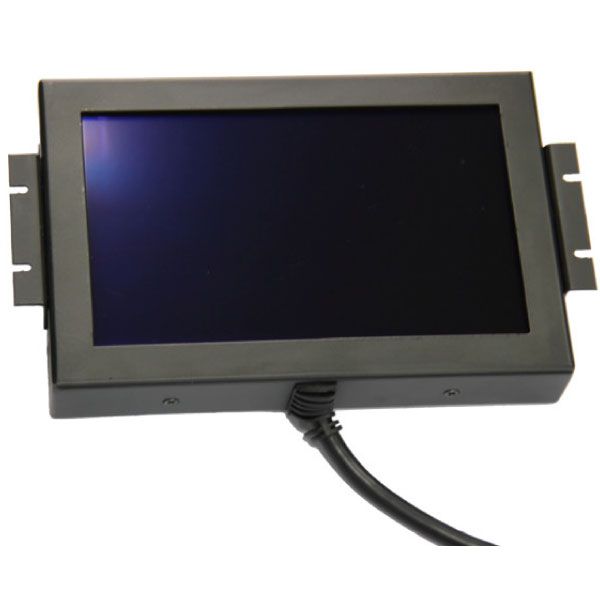

MF700
7 inches rugged display:
-
800x480px (WVGA)
-
600 nits
-
VGA & audio inputs

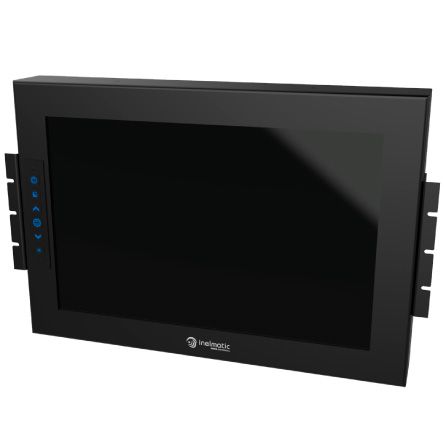

MF800, MF1000, MF1200
Metal frame displays fully customizable:
-
8", 10", 12" (ask for specific size)
-
600 - 1000 nits
-
VGA, DVI, Composite video, S-Video inputs
-

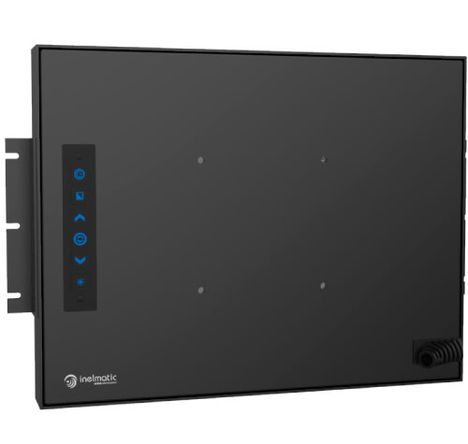

Optional hooks
-
Antiglare and antireflective optical finish
MF1010
Industrial and vehicular metal frame monitor:
-
10.1" in 1280x600px
-
200 nits with a 500:1 contrast
-
USB input

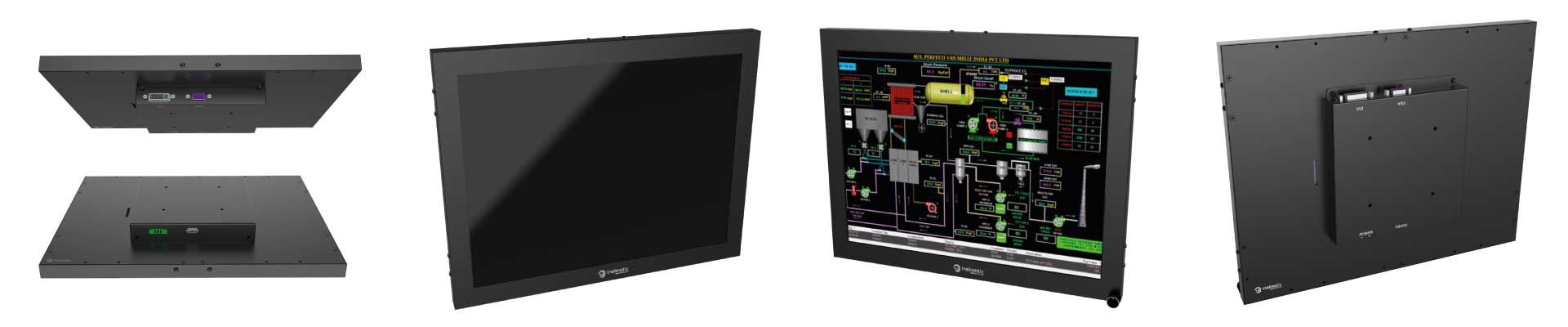

MF1500, MF1700, MF1900
Industrial touch monitor:
-
15", 17", 19" SXGA monitor
-
350 / 500 / 800 nits
-
VGA/DVI, optional HDMI, S-Video, C-Video
-
Resistive or capacitive touch screen

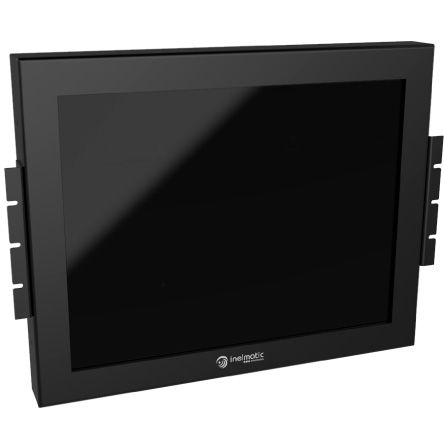

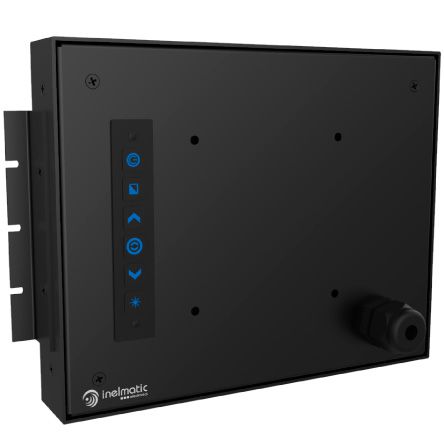

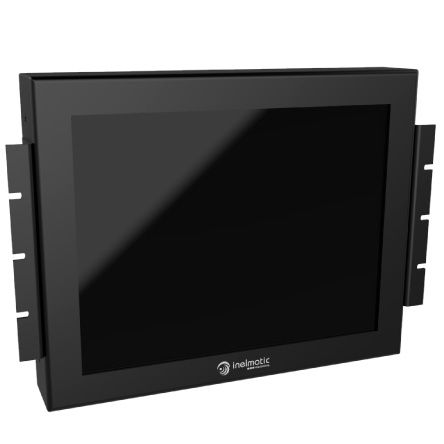

Industrial metal displays - MF series
MF Series are folded sheet metal frame industrial grade monitors. This serie includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sun light.
Besides, all of them optionally include a resistive touch panel with USB/RS232 controller, adding interactivity for low budget projects. For advanced projects, it is possible to add a rugged PCT (Projected Capacitive Multi-touch) touch screen for higher light transmission but thicker glass, anti-vandal, and no recalibration is required. Industries such as Medical Equipment and Industrial Instrument are looking toward a product with no fragile to scratches and cleaning, or required continued calibration due to drift, were not transparent enough, and in some instances did not work with a gloved hand.
In the I/O part, it is available VGA and Audio input as standard, optional DVI, Composite Video and S-Video inputs. All inputs are available as factory option on the rear panel. Optionally it includes “all-in-one cable”, with a lockable connector (SCSI) or DSUB connector for an easy and quick installation.
| Model | Size | Resolution | Keypad |
|
MF700
|
7" |
800x400px (WVGA) |
Side, Rear |
|
MF800
|
8" |
800x600px (SVGA) |
Rear |
|
MF1000
|
10" |
1024x768px (4:3) |
Rear |
|
MF1010
|
10" |
1280x600px |
None |
|
MF1200
|
12" |
1024x768px (4:3) |
Rear |
|
MF1216
|
12" |
1280x800px
|
Front |
|
MF1500
|
15" |
1024x768px (4:3) |
Rear |
|
MF1700
|
17" |
1280x1024px (SXGA) |
Rear |
|
MF1900
|
19" |
1280x1024px (SXGA) |
Rear |
General specifications
General
7 / 8 / 10 / 12 / 15 / 17 / 19 Inches
(Ask for a specific size)
C o l o r s
256K
Autopower on/off
Composite video input
LVDS / VGA / DVI / HDMI
Customizable inputs
Mechanical
Dimension
(see below drawings)
Mount type
Open frame type & VESA 75mm
Operation Temperature
-10ºC to +70ºC
Vibrations
1G 2-50Hz / 10G 11ms
Applications
Automotive
Industrial
Healthcare
NVIS

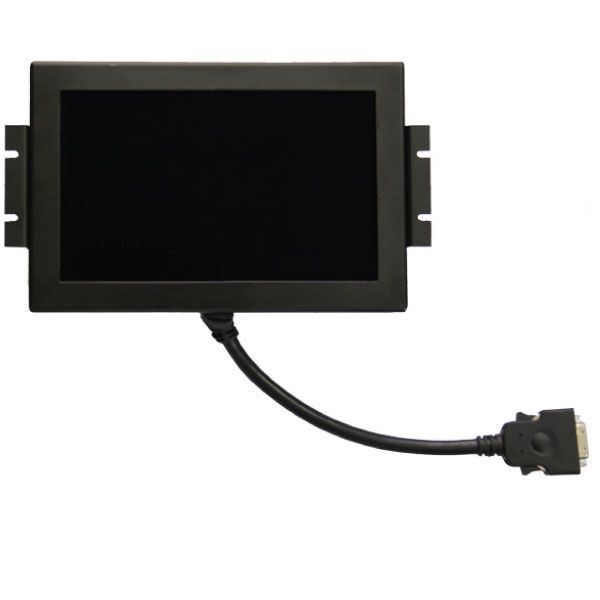

MF700
The MF700 is available with VGA and Audio input as standard, optional designed by Inelmatic Electronics, brings the possibility of outdoor usage by its metal chassis for harsh environment design and direct sunlight readability enhancements.
It includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sun light.
Besides, the MF700 optionally includes a resistive touch panel with USB/RS232 controller, adding interactivity for low budget projects. MF700 also includes a rugged PCT (Projected Capacitive Multi-touch) touch screen as option which is not only with higher light transmission but thicker glass, anti-vandal, and no recalibration is required. Industries such as Medical Equipment and Industrial Instrument are looking toward a product with no fragile to scratches and cleaning, or required continued calibration due to drift, were not transparent enough, and in some instances did not work with a gloved hand.
The MF700 is available with VGA and Audio input as standard, optional DVI, Composite Video and S-Video inputs. All inputs are available as factory option on the rear panel. Optionally it includes “all-in-one cable”, with a lockable connector (SCSI) or DSUB connector for an easy and quick installation.
There are two enclosures ready for a custom installation according customer needs.
General specifications
Size
7 inches WVGA TFT
Aspect
16:9
Native resolution
800x480px
Inputs
VGA / DVI / HDMI /
2/3 x Composite Video
Audio
No Audio
Touch Panel
Resistive 4 wires USB/RS232, Endurance>2M touch. PCT multi-Touch optional.
Power supply
7-36V DC automotive car/truck suitable
Power consumption
Normal 6W, Highbright 8W
Mounting
Vesa75, Stand alone and headrest accessories (opt)
Warranty
12 months international, 24 months Europe
Certification
CE*, e-mark*, EN50155* (*upon request)
Applications
Automotive car/truck suitable
Response time
16 ms
Mechanical specifications

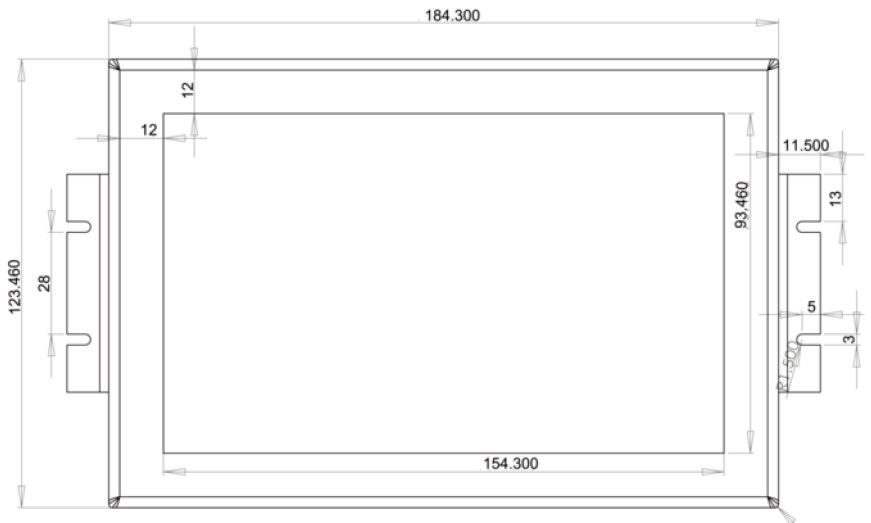

Dimensions
184.3 x 123.46 x 30 mm
Weight
900 gr
Enclosure
Metal folding
Operation temperature
-35ºC to 85ºC
Vibrations
1G 2-500Hz
Shock
20G 11ms
Optical specifications
Brightness
600 nits
Backlight
LED backlight
Backlight lifetime
min. 50.000h
Contrast
500:1
Angle
160º H, 140º V
Outdoor readability
MIL-STD-3009
Enhancements
Sunlight readable, NVIS B compliant (opt)
MF800
MF800 is a 8 inches folded sheet metal frame industrial monitor designed by Inelmatic Electronics, brings the possibility of outdoor usage by its metal chassis for harsh environment design and direct sunlight readability enhancements.
It includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sun light.
Besides, the MF800 optionally includes a resistive touch panel with USB/RS232 controller, adding interactivity for low budget projects. MF800 also includes a rugged PCT (Projected Capacitive Multi-touch) touch screen as option which is not only with higher light transmission but thicker glass, anti-vandal, and no recalibration is required. Industries such as Medical Equipment and Industrial Instrument are looking toward a product with no fragile to scratches and cleaning, or required continued calibration due to drift, were not transparent enough, and in some instances did not work with a gloved hand.
The MF800 is available with VGA and Audio input as standard, optional DVI, Composite Video and S-Video inputs. All inputs are available as factory option on the rear panel. Optionally it includes “all-in-one cable”, with a lockable connector(SCSI) or DSUB connector for an easy and quick installation.

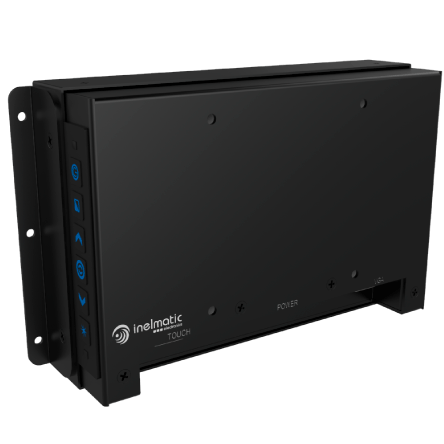

An enclosure with hooks is also available:
General specifications
Size
8 inches SVGA TFT
Aspect
4:3
Native resolution
800x600px
Inputs
VGA / DVI / HDMI / 2 or 3 x Composite Video
Audio
No Audio
Touch Panel
Resistive 4 wires USB/RS232, Endurance>2M touch. PCT multi-Touch optional.
Power supply
9-36V DC automotive car/truck suitable
Power consumption
Normal 6W, Highbright 8W
Mounting
Stand alone and headrest accessories (opt)
Warranty
12 months international, 24 months Europe
Certification
CE*, e-mark*, EN50155* (*upon request)
Applications
Automotive car/truck suitable
Response time
16 ms
Mechanical specifications
Dimensions
197.8 x 157.3 x 33.4 mm
Weight
1000 gr
Enclosure
Metal folding
Operation temperature
-35ºC to 85ºC
Vibrations
1G 2-500Hz
Shock
20G 11ms
Optical specifications
Brightness
500 / 1000 nits
Backlight
LED backlight
Backlight lifetime
min. 50.000h
Contrast
500:1
Angle
160º H, 140º V
Outdoor readability
MIL-STD-3009
Enhancements
Sunlight readable, NVIS B compliant (opt)
MF1000
MF1000 is a rugged 10" XGA folded sheet metal frame monitor with waterproof function, which follows IP65 ingress protection (IP67 optional), low power consumption, super fast response time. It’s the ideal solution for outdoor usage, or harsh environments.
It includes a high-performance controller with automatic and manual backlight adjustment, depending on ambient light, making it suitable for applications from darkest night (NVIS) to sunlight. In addition, the MF1000 optionally includes a resistive / capacitive (PCAP) touch panel with USB controller, which adds interactivity.
The MF1000 is available with VGA input as standard and optional DVI / HDMI inputs in a “all-in-one cable”, with a lockable connector for an easy and quick installation.
General specifications
Size
10.4 inches XGA TFT
Aspect
4:3
Native resolution
1024 x 768px (XGA)
Inputs
VGA / DVI / HDMI
Audio
No Audio
Touch Panel
Resistive 4 or 5 Wires. Interface USB, optional RS232
Power supply
9-36V DC
Power consumption
12-14W
Mounting
Panel type (custom), VESA 75mm
Warranty
12 months international, 24 months Europe
Certification
CE*, e-mark*, EN50155* (*upon request)
Applications
Industrial / Digital signage / Advertising
Response time
16 ms
Mechanical specifications
Dimensions
260.2 x 201.4 x 28.5mm (see drawing)
Weight
1.2Kg
Enclosure
Steel and Aluminum, Wet Paint (Powder Paint optional)
Operation temperature
-20ºC to 70ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
300 / 500 / 1000 nits
Backlight
LED backlight
Backlight lifetime
min. 50.000h
Contrast
500:1
Angle
178º H, 150º V
Outdoor readability
Anti-glare/Anti-reflective
Enhancements
Sunlight Readable and Transflective

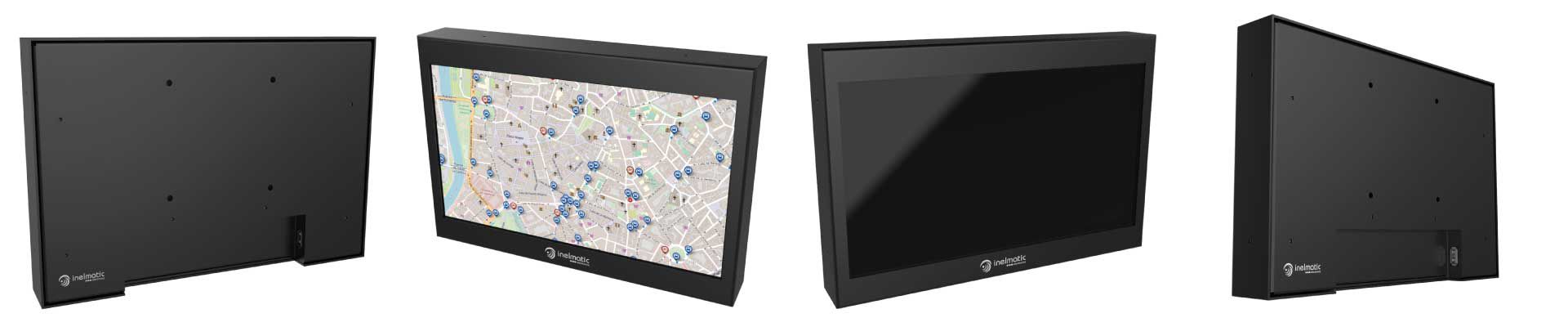

MF1010
MF1010 is a 10.1" (1280 x 600px) folded sheet metal frame monitor with waterproof function, which follows IP65 ingress protection (IP67 optional), low power consumption, super fast response time. It’s the ideal solution for outdoor usage, or harsh environments, such as digital signage advertising displays or outdoor ticket vendor kiosks.
It includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sun light. Besides, the MF1010 optionally includes a resistive / capacitive (PCAP) touch panel with USB controller, adding interactivity.
The MF1010 is available with only USB input as standard. Anyway, configurable inputs are available as factory option on the rear panel.
General specifications
Size
10.1 inches XGA TFT
Aspect
32:15
Native resolution
1280 x 600px
Inputs
USB
Audio
No Audio
Touch Panel
Resistive 4 or 5 wires
Power supply
5VDC - 1A
Power consumption
5W
Mounting
Panel Type, Custom Option, VESA75 optional
Warranty
12 months international, 24 months Europe
Certification
CE*, e-mark*, EN50155* (*upon request)
Applications
Industrial / Digital signage / Advertising
Response time
16 ms
Mechanical specifications
Dimensions
245.0 x 165.7 x 36.0 mm (see drawing)
Weight
1200 gr
Enclosure
Steel and Aluminum, Wet Paint (Powder Paint optional)
Operation temperature
-20ºC to 70ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
200 nits
Backlight
LED backlight
Backlight lifetime
min. 50.000h
Contrast
500:1
Angle
178º H, 150º V
Optical Finish
Anti-glare/Anti-reflective
Enhancements
Sunlight Readable and Transflective
MF1200
MF1200 is a rugged 12" folded sheet metal frame monitor with waterproof function, which follows IP65 ingress protection (IP67 optional), low power consumption, super fast response time. It’s the ideal solution for outdoor usage, or harsh environments.
It consists of a high-performance controller with automated and also manual backlight modification, depending on ambient light, making it ideal for applications from darkest night (NVIS) to bright sunlight. In addition, the MF1200 features a resistive / capacitive (PCAP) touch panel with USB controller, which includes interactivity. The keypad for display control remains on the rear.
The MF1200 is available with VGA input as standard and optional DVI / HDMI inputs in a “all-in-one cable”, with a lockable connector for an easy and quick installation.
General specifications
Size
12.1 inches XGA TFT
Aspect
4:3
Native resolution
1024x768px
Inputs
VGA / DVI / HDMI
Audio
No Audio
Touch Panel
Resistive 4 or 5 Wires. Interface USB, optional RS232
Power supply
9-36VDC / 48VDC, 72VDC, 110VDC optional
Power consumption
12-14W
Mounting
Panel Type, VESA 75mm, Custom Option
Warranty
12 months international, 24 months Europe
Certification
(Contact us)
Applications
Industrial / Digital signage / Advertising
Response time
16 ms
Mechanical specifications
Dimensions
294x 233.3 x 31 mm (see drawing)
Weight
1.5Kg
Enclosure
Steel and Aluminum, Wet Paint (Powder Paint optional)
Operation temperature
-35ºC to 75ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
350 / 500 / 1000 nits
Backlight
LED backlight
Backlight lifetime
min. 50.000h
Contrast
700:1
Angle
160º H, 140º V
Optical finish
Anti-glare/Anti-reflective
Enhancements
Sunlight Readable and Transflective
MF1216
MF1216 is a rugged 12" folded sheet metal frame monitor monitor with waterproof function, which follows IP65 ingress protection (IP67 optional), low power consumption, super fast response time. It’s the ideal solution for outdoor usage, or harsh environments. The keypad is in the front panel.
It includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sun light. Besides, the MF1216 optionally includes a resistive / capacitive (PCAP) touch panel with USB controller, adding interactivity.
The MF1216 is available with VGA input as standard and optional DVI / HDMI inputs in a “all-in-one cable”, with a lockable connector for an easy and quick installation.
MF1500
MF1500 is a rugged 15" folded sheet metal frame monitor with waterproof function, which follows IP65 ingress protection (IP67 optional), low power consumption, super fast reponse time. It’s the ideal solution for outdoor usage, or harsh environments.
It contains a high-function controller with automated and also manual backlight adjustment, depending on ambient light, making it perfect for applications from nighttime darkness (NVIS) to glaring sunlight. In addition, the MF 1500 includes a resistive/capacitive touch panel (PCAP) with USb controller, which includes interactivity.
The MF1500 is available with VGA input as standard, optional DVI / HDMI, USB inputs. All inputs are available as factory option on the rear panel. Optionally it includes “all-in-one cable”, with a lockable connector for an easy and quick installation.
General specifications
Size
15 inches XGA TFT
Aspect
4:3
Native resolution
1024x768px
Inputs
VGA / DVI / HDMI / 2xAV (opt)
Audio
No Audio
Touch Panel
Resistive 4 or 5 Wires / Projected Capacitive. Interface USB, Optional RS232
Power supply
9-36VDC / 48VDC, 72VDC, 110VDC Optional
Power consumption
14W
Mounting
Panel Type, VESA 100mm (custom)
Warranty
24 month
Certification
CE*, e-mark*, EN50155* (*upon request)
Applications
Industrial / Digital Signage
Response time
16 ms
Mechanical specifications
Dimensions
358.8 x 282.7 x 43.2 mm (see drawing)
Weight
4200 gr
Enclosure
Steel and Aluminum, Powder Paint
Operation temperature
-35ºC to 75ºC
Vibrations
1G -2500Hz
Shock
10G 11ms
Optical specifications
Brightness
350 / 500 / 800 nits
Backlight
LED backlight
Backlight lifetime
min. 50.000h
Contrast
700:1
Angle
160º H, 140º V
Optical finish
Anti-glare/Anti-reflective
Enhancements
Sunlight Readable and Transflective
MF1700
MF1700 is a rugged 17" folded sheet metal frame monitor with waterproof function, which follows IP65 ingress protection (IP67 optional), low power consumption, super fast response time. It’s the ideal solution for outdoor usage, or harsh environments.
It includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sun light. Besides, the MF1700 optionally includes a resistive / capacitive (PCAP) touch panel with USB controller, adding interactivity.
The MF1700 is available with VGA, DVI, HDMI, Composite Video and S-Video inputs. All inputs are available as factor option on the rear panel.
General specifications
Size
17 inches SXGA TFT
Aspect
4:3
Native resolution
1280x1024px
Inputs
VGA / DVI / HDMI / S-Video / C-Video
Audio
Optional Stereo 2x2W
Touch Panel
Resistive 5 Wires, Interface: USB or RS232
Power supply
9-36V DC
Power consumption
16 W
Mounting
VESA 75mm, customization available
Warranty
24 months
Certification
CE*, e-mark*, EN50155* (*upon request)
Applications
Industrial / Digital Signage
Response time
5 ms
Mechanical specifications
Dimensions
315.8 x 260.3 x 33mm (see drawing)
Weight
3.68 Kg
Enclosure
Steel and Aluminum
Operation temperature
-20ºC to 70ºC
Vibrations
1G 2-500Hz
Shock
20G 11ms
Optical specifications
Brightness
250 nits
Backlight
LED backlight
Backlight lifetime
min. 50.000h
Contrast
1000:1
Angle
170º H, 160º V
Optical Finish
Anti-glare surface
MF1900

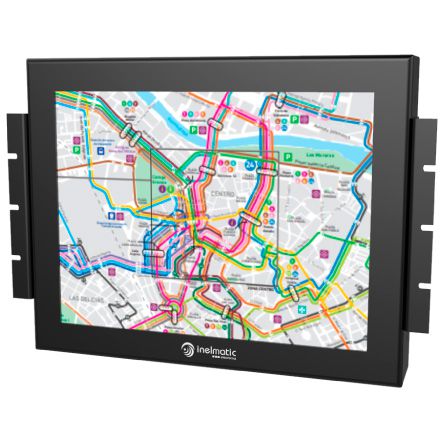

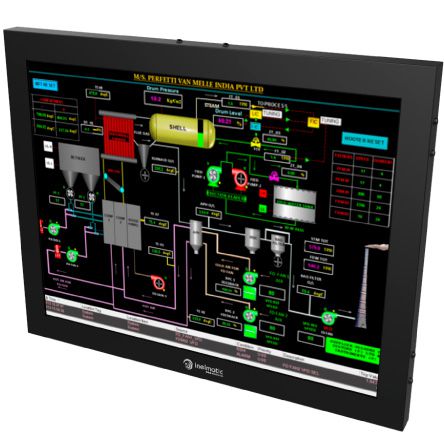

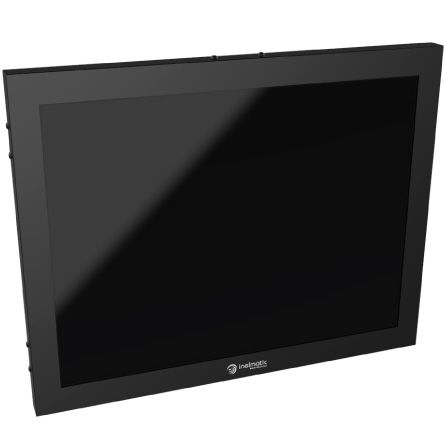

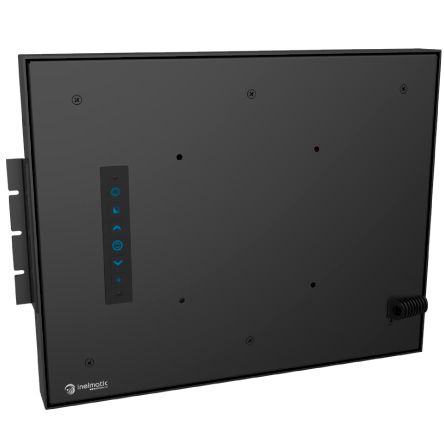

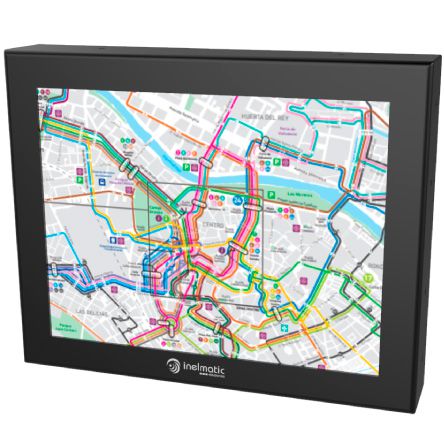

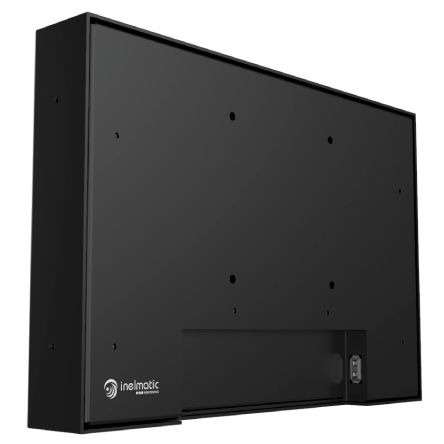

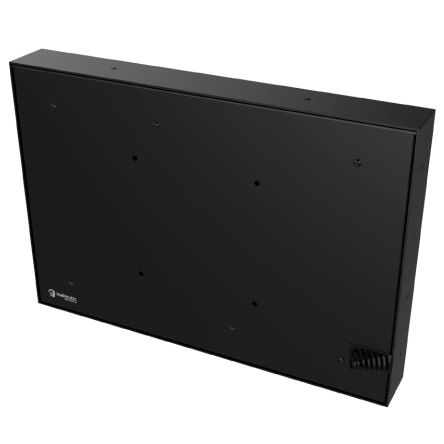

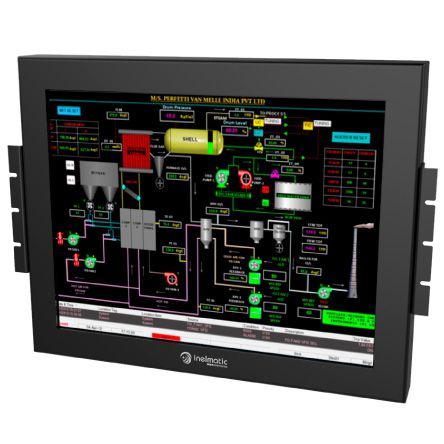

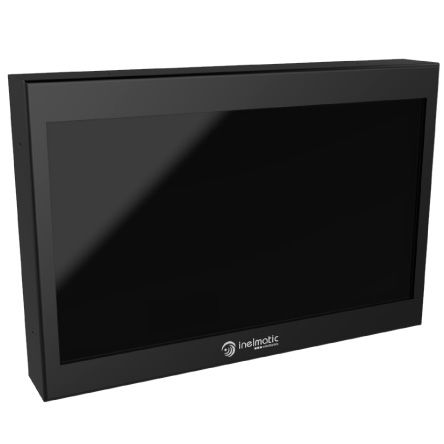

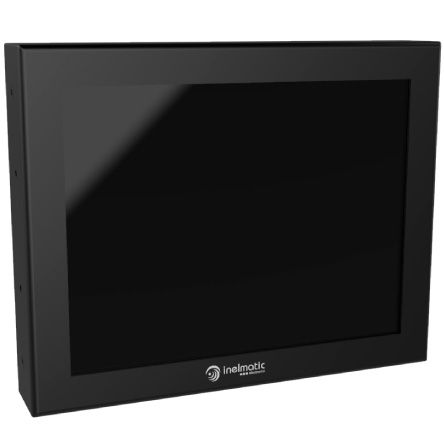

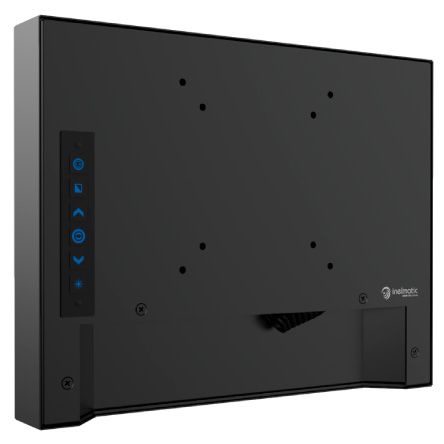

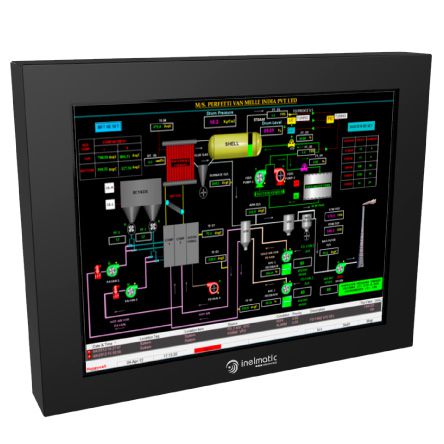

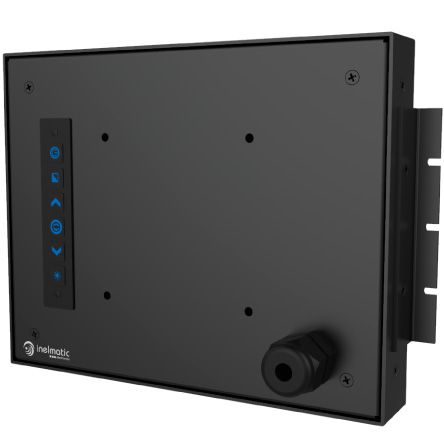

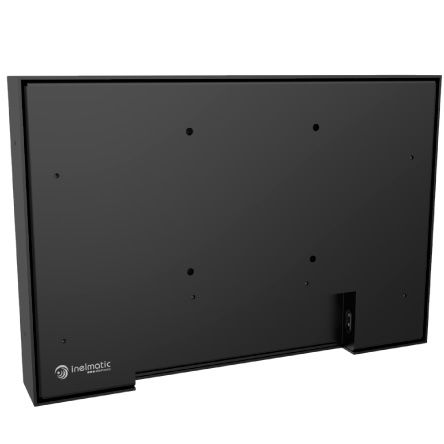

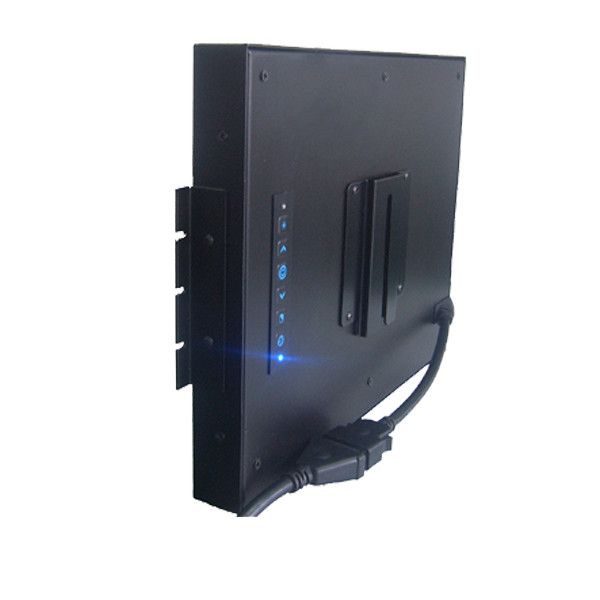

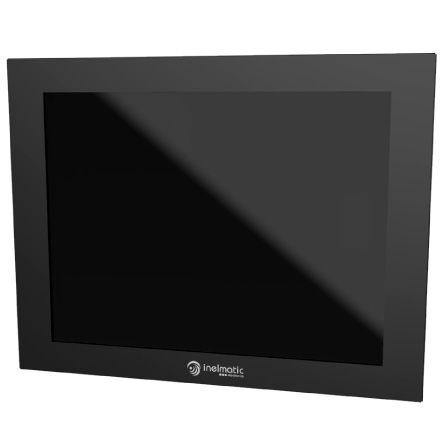

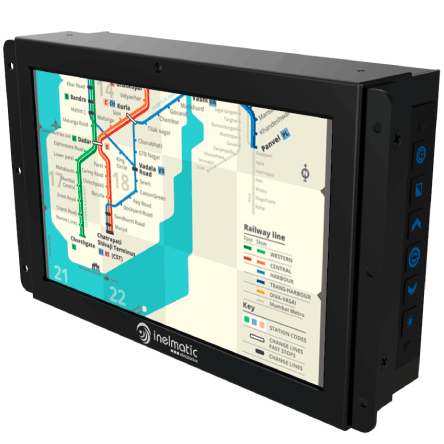

MF1900 is a rugged 19" folded sheet metal frame monitor with waterproof function, which follows IP65 ingress protection (IP67 optional), low power consumption, super fast response time. It’s the ideal solution for outdoor usage, or harsh environments.
It consists of a high-performance controller with automated and also manual backlight modification, depending on ambient light, making it ideal for applications from darkest night (NVIS) to bright sunlight. In addition, the MF1900 features a resistive / capacitive (PCAP) touch panel with USB controller, adding interactivity.

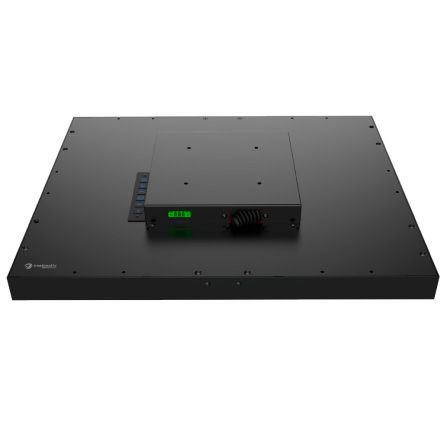

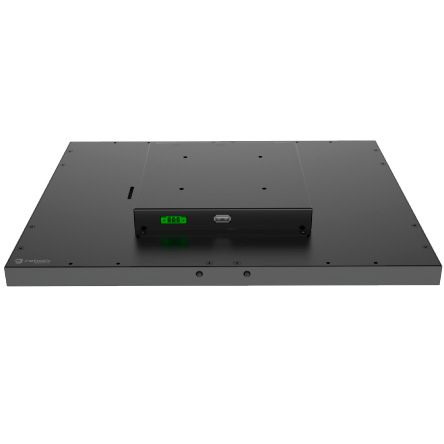

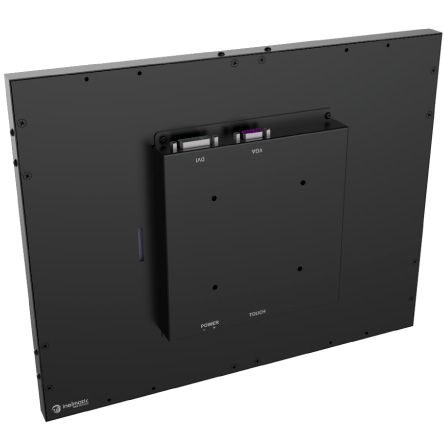

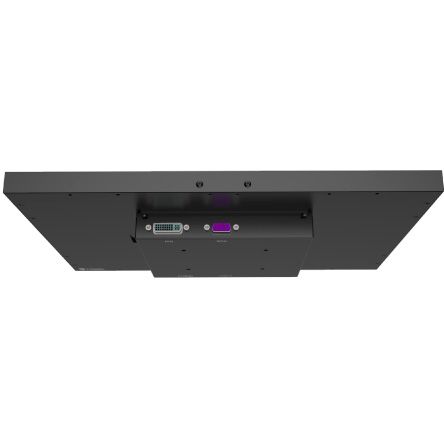

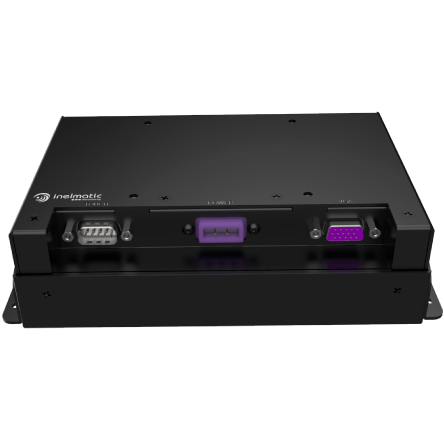

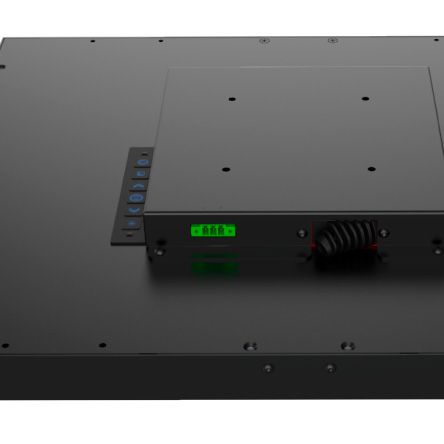

The MF1900 is available with VGA, DVI, HDMI, Composite Video and S-Video inputs. All inputs are available as factor option on the rear panel.
Contact
Technical support
Our support team will help you to achieve your requirements
