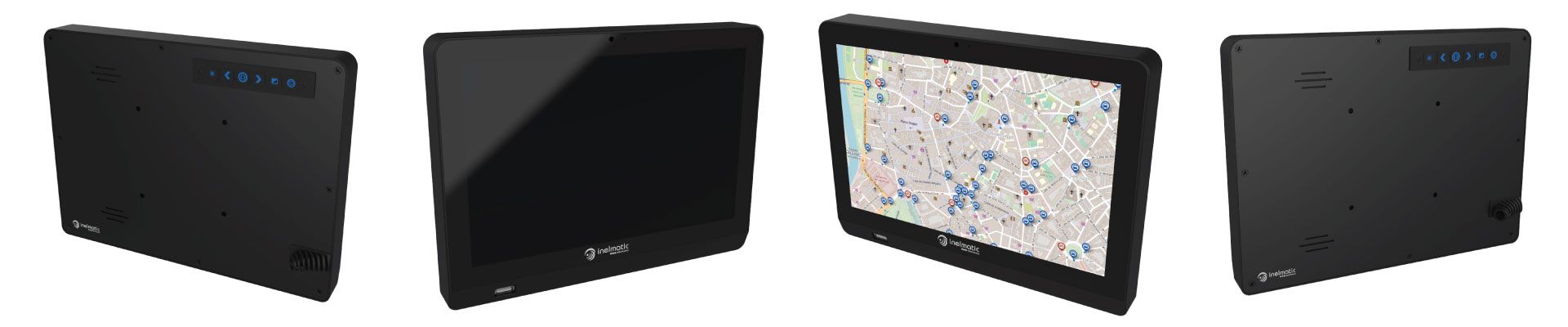

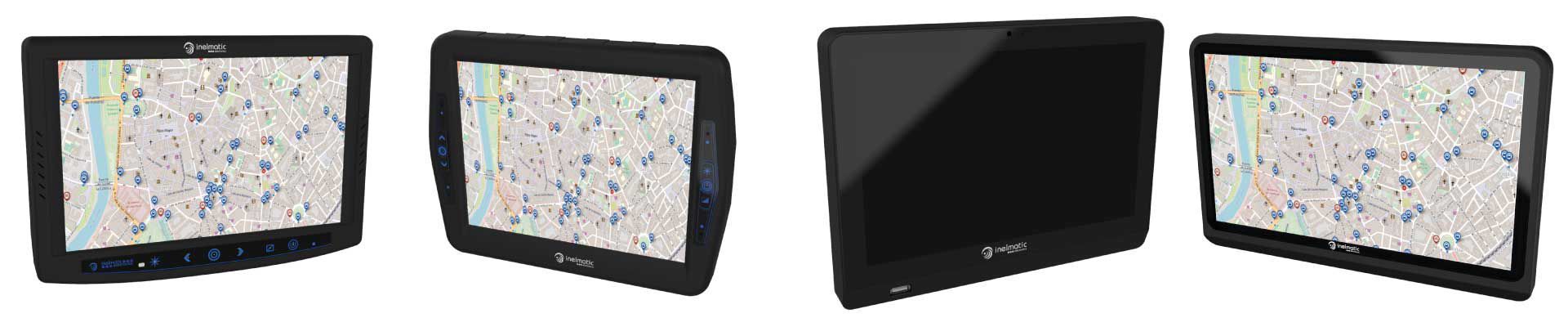

Sunlight readable vehicle Displays - XF series

XF Series are industrial grade and automotive rugged monitors, including LED backlight with 400nits, 600nits (HB) and 1200nits (SHB) brightness versions, wide angle panel with Sunlight readable options in Resistive & Multi-touch Projected Capacitive touch panels.

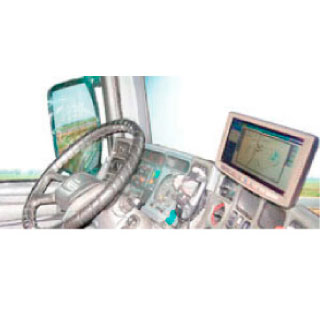

This serie is a great option to install in the car dashboard or fascia. Police and ambulance fleet vehicles mount our devices in the largest cities of Europe.

These rugged monitors include a high featured controller including automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight ( LCD sunlight readable ). These enhancements have been researched and developed in the  Inelmatic Optical laboratory©.

Optical enhancements are very important when screens are installed in critical vehicles such as firefighter trucks or emergency public transport vehicles.

Model Size Resolution Keypad
XF700
7"
800x480px (XVGA)
Front
XF800
8"
800x600px (SVGA)
Front
XF1000
10"
1024x768px (XGA)
Side
XF1010
10.1"
1920x1200px (WUXGA)
Rear
XF101
10.1"
1024x600px (WSVGA)
None (software)
XF1330
13.3"
1280x1080px (SXGA)
Rear
XF1560
15.6" 1920x1080px (HD)
Rear

Specifications

Generals

7 / 8 / 10.1 / 13.3 / 15.6 Inches

(Ask for a specific size)

C o l o r s

256K

Autopower on/off

2.5m & 4.5m cable (custom)

All-in-one cable with IP67 connectors

Mechanicals

Dimension

(see below drawings)

Mount type

VESA 75mm & Standalone accessories

Operation Temperature

-40ºC to +85ºC

Vibrations

1G 2-50Hz / 10G 11ms

Applications

Automotive


Public transportation


Industrial


Healthcare

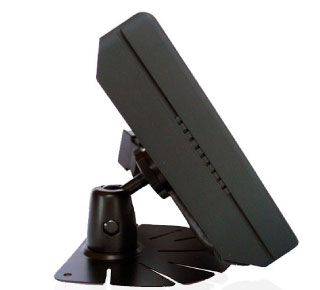

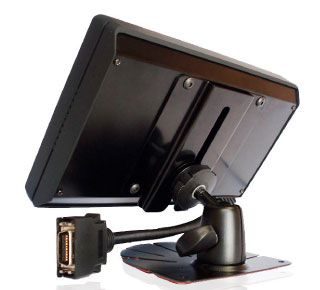

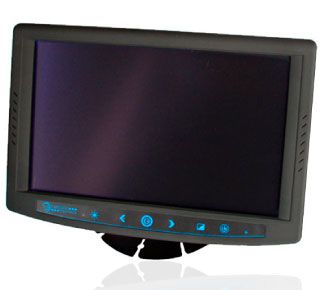

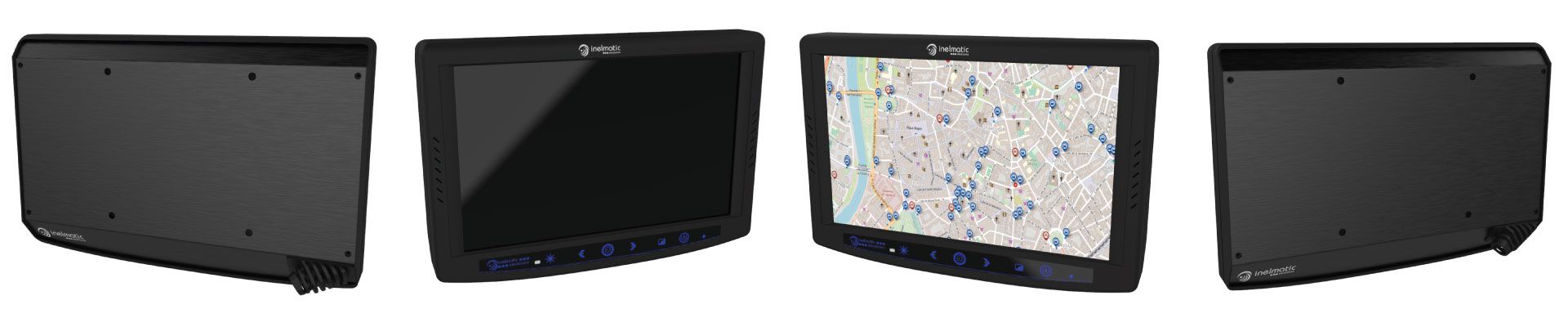

XF700


XF700 is a 7 inch XVGA (800x480px) monitor designed by Inelmatic Electronics, which brings the possibility of minimize the needed space for any computer application which demands a display. It’s the perfect the Human Machine Interface (HMI) for restricted space and harsh environments, like personal vehicles, public transportation vehicles and any other situation where the dimensions and image quality is important, even under strong ambient light or direct sunlight.

It includes a video scaler chipset supporting standard VESA from 640 x 480px up to 1920x1440px including the native resolution 800x480px for a perfect pixel-match on the most demanding image accuracy. The optional touch panel with USB or RS232 interface adds an efficient human interface which brings full interactivity and high reliability.

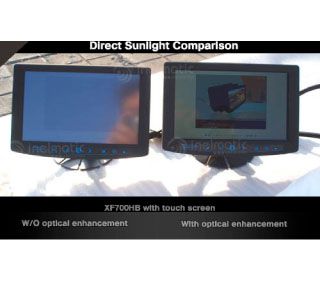

In addiction, the XF700 includes the latest generation of LED backlight with passive enhancement, to achieve a high brightness keeping the lowest power consumption. Besides, the manual and  automatic dimmer bring the possibility of match the brightness to the ambient light, it makes the display able to work from darkest conditions without disturb the driver’s visibility, up to high brightness for the strongest light environments..

General specifications

Size

7 inches

Aspect

16:9

Native resolution

800x480px XVGA

Inputs

VGA / DVI / HDMI, 3 x Composite Video

Audio

2 x 1 W

Touch Panel

Resistive 4 wires USB/RS232

Projected capacitive (PCT) multi-touch

Power supply

7-36VDC automotive car/truck suitable

Power consumption

6W

Mounting

VESA 75, Stand alone and headrest accessories

Warranty

12 months international, 24 months Europe

Certification

CE*, e-mark*, EN50155*  (*upon request)

Applications

Automotive (Car - Truck - Ambulance - Firefight)

Connection

All in one cable, 2.5m and 4.5m

Mechanical specifications

Dimensions

183 x 125 x 31mm

Weight

600 gr

Enclosure

Aluminium chasis/rear. PVC-ABS front

Operation temperature

-35ºC to 85ºC max (-20ºC to 60ºC continuous)

Vibrations

1G 2-500Hz

Shock

20G 11ms

Optical specifications

Brightness

600 / 1000 nits

Backlight

LED backlight

Backlight lifetime

30.000h / 50.000h

Contrast

500:1

Angle

140º H, 110º V

Outdoor readability

MIL-STD-3009

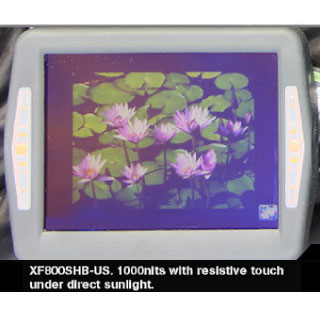

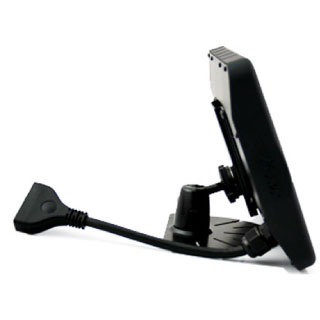

XF800


XF800 is a 8 inch SVGA (800x600px) rugged vehicle monitor designed by Inelmatic Electronics, brings the possibility of outdoor usage by its IP65 chassis for harsh environment design and direct sunlight readability enhancements.

The XF800 includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight.

Besides, the XF800 optionally includes a resistive touch panel with USB/RS232 controller, adding interactivity for low budget projects. XF800 also includes a rugged PCT (Projected Capacitive Multi-touch) touch screen as option which is not only with higher light transmission but thicker glass, anti-vandal, and no recalibration is required. Industries such as Medical Equipment and Industrial Instrument are looking toward a product with no fragile to scratches and cleaning, or required continued calibration due to drift, were not transparent enough, and in some instances did not work with a gloved hand.

The XF800 is available with VGA and Audio input as standard, optional HDMI/DVI, Composite Video and S-Video inputs. All inputs are available as factory option on the rear panel. Optionally it includes “all-in-one cable”, with a lockable connector(SCSI) or DSUB connector for an easy and quick installation

General specifications

Size

8 inches

Aspect

4:3

Native resolution

800 x 600 px SVGA

Inputs

VGA / DVI / HDMI, 3 x Composite Video

Audio

2 x 1.8 W

Touch Panel

Resistive 4 wires USB/RS232

Projected capacitive (PCT) multi-touch

Power supply

9-36VDC automotive car/truck suitable

Power consumption

Normal 6W, HB 8W

Mounting

Stand alone and headrest accessories

Warranty

12 months international, 24 months Europe

Certification

CE*, e-mark*, EN50155*  (*upon request)

Applications

Automotive (Car - Truck - Ambulance - Firefight)

Connection

All in one cable, 2.5m and 4.5m (IP67)

Mechanical specifications

Dimensions

214 x 165.9 x 27 mm

Weight

860 gr

Enclosure

Aluminium chasis/rear. PVC-ABS front

Operation temperature

-35ºC to 85ºC max (-20ºC to 60ºC continuous)

Vibrations

1G 2-500Hz

Shock

20G 11ms

Optical specifications

Brightness

300 / 500 / 1000 nits

Backlight

LED backlight

Backlight lifetime

30.000h / 50.000h

Contrast

500:1

Optical Finish

Anti-glare / anti-reflective (opt)

Enhancements

Sunlight readable and transflective (opt)

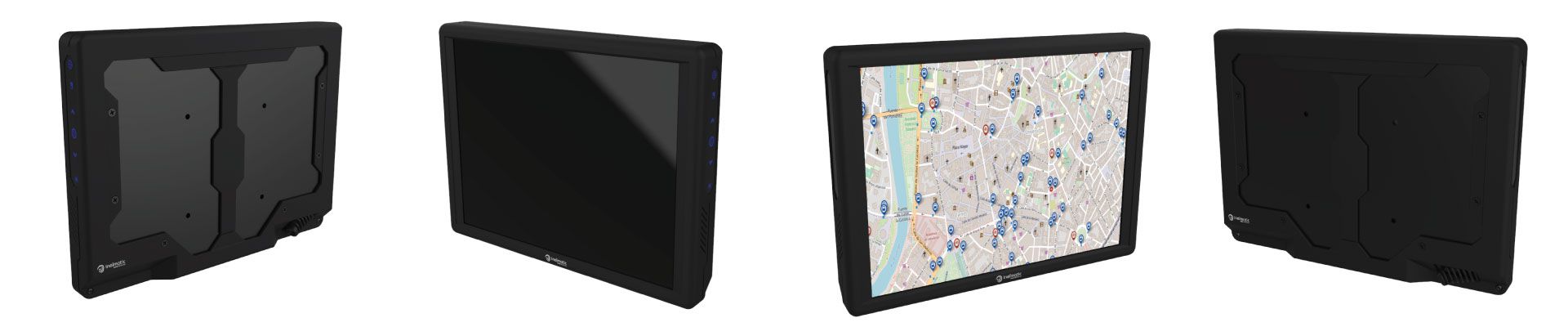

XF1000

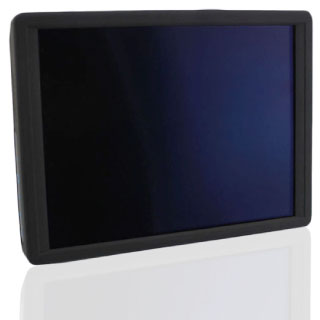

 XF1000 is a 10.4 inches industrial grade XGA (1024x768px) monitor, including LED backlight with 400nits, 600nits (HB) and 1200nits (SHB) brightness versions, wide angle panel with Sunlight readable options in Resistive & Multi-touch Projected Capacitive touch panels.

XF1000 includes a high featured controller including automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight. Besides, theXF1000 optionally includes a resistive touch panel with USB controller, adding interactivity.

The XF1000 is available with VGA and Audio input as standard, optional DVI, Composite Video and S-Video inputs. All inputs are available as factory option on the rear panel. Optionally it includes “all-in-one cable”, with a lockable conector for an easy and quick installation.

General specifications

Size

10.4 inches

Aspect

4:3

Native resolution

1024 x 768px XGA

Inputs

VGA / DVI / HDMI, 3 x Composite Video

Audio

2 x 1.8 W

Touch Panel

Resistive USB/RS232

Projected Capacitive (PCT) multi-touch

Power supply

9-36VDC automotive car/truck suitable

Power consumption

Normal 7W, HB 8W, SHB: 13W

Mounting

Stand alone and headrest accessories

Warranty

12 months international, 24 months Europe

Certification

CE*, e-mark*, EN50155*  (*upon request)

Applications

Automotive (Car - Truck - Ambulance - Firefight)

Connection

All in one cable, 2.5m and 4.5m (IP67)

Mechanical specifications

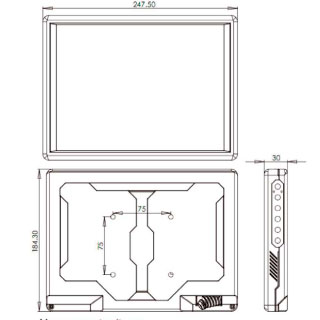

Dimensions

247.5 x 184.3 x 30 mm

Weight

900 grs

Enclosure

Aluminium chasis/rear. PVC-ABS front with anti-polish painting

Operation temperature

-35ºC to 70ºC max (-20ºC to 60ºC continuous)

Vibrations

1G 2-500Hz

Shock

20G 11ms

Protection

IP54 chassis

Optical specifications

Brightness

400 / 600 / 1200 nits

Backlight

LED backlight

Backlight lifetime

30.000h / 50.000h

Contrast

500:1

NVIS

Optional NVIS B compliant

Outdoor readability

MIL-STD-3009

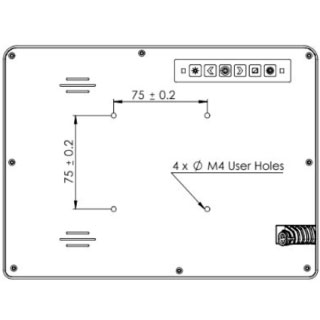

XF1010


XF1010 is a 10.1 inches WUXGA (1920x1200px) monitor, including LED backlight with 600 nits brightness with wide viewing angle panel. It includes Sunlight readable options in Resistive & Multi-touch Projected Capacitive touch panels with I2C/USB/RS232 controller.

XF1000 includes a high featured controller including automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight. Also optical enhancements as anti-glare, anti-reflective can be optionally added. It has been designed with a slim frame and reduced depth.

XF1010 inputs are LVDS, VGA, HDMI. All inputs are available as factory option. Optionally it includes“ all-in-one cable”, with a lockable conector for an easy and quick installation.

General specifications

Size

10.1 inches

Aspect

16:10

Native resolution

1920 x 1200px  WUXGA

Inputs

LVDS / VGA / DVI / HDMI

Audio

2 x 1.5 W

Touch Panel

Resistive 4 / 5 wires

Projected Capacitive I2C/RS232

Power supply

9-36VDC

Power consumption

10W

Mounting

VESA75

Warranty

12 months international, 24 months Europe

Certification

CE*, e-mark*, EN50155*  (*upon request)

Applications

Automotive (Car - Truck - Ambulance - Firefight)

Connection

All in one cable, 2.5m and 4.5m (IP67)

Mechanical specifications

Dimensions

251.2 x 186.8 x 27 mm

Weight

700 grs

Enclosure

Plastic and Aluminium, wet painting

Operation temperature

-20ºC to 70ºC max

Vibrations

1G 2-500Hz

Shock

10G 11ms

Protection

IP54 chassis

Optical specifications

Brightness

600 nits

Backlight

LED backlight

Backlight lifetime

50.000h

Contrast

900:1

NVIS

Optional NVIS B compliant

Outdoor readability

MIL-STD-3009

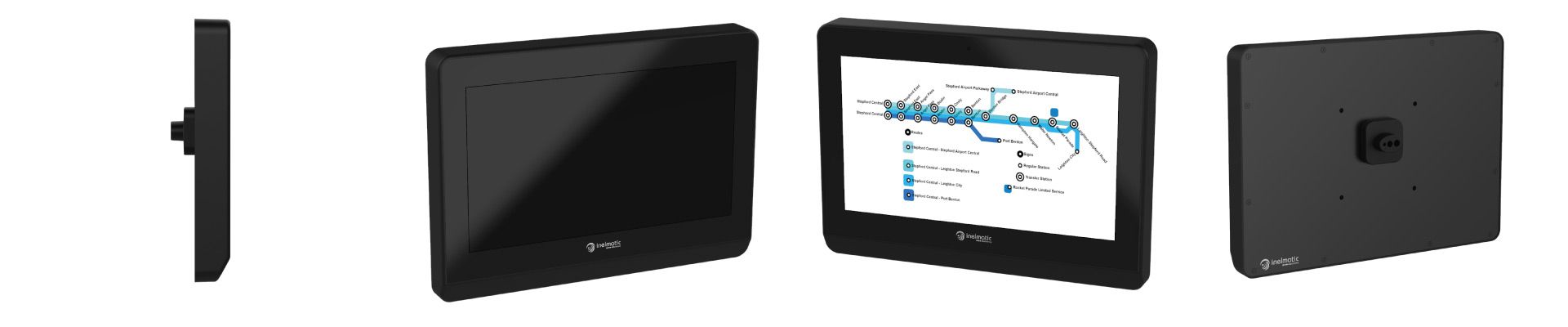

XF101


XF101 is a 10.1 inches HD monitor, including LED backlight with 300 - 600 nits brightnes version with wide viewing angle panel. It includes Sunlight readable options with Multi-touch Projected Capacitive touch panels with USB/RS232 controller.

XF101 includes a high featured controller including optional fully automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight. Also optical enhancements as anti-glare, anti-reflective can be optionally added. It has been designed with a slim frame and reduced depth.

XF101 inputs are VGA, HDMI, DVI. All inputs are available as factory option.

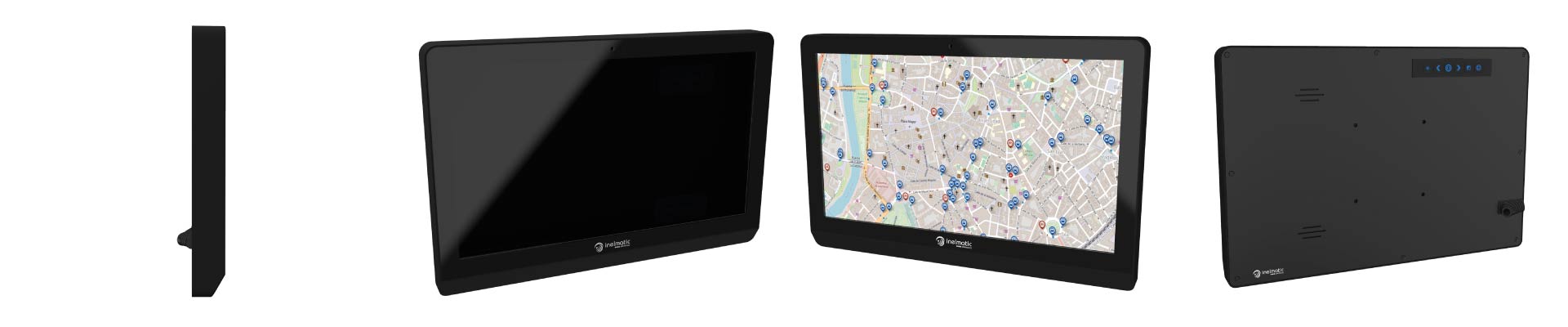

XF1330


XF1330 is a 13.3 inches SXGA (1280x1080px) monitor, including LED backlight with 300 - 700 nits brightness version with wide viewing angle panel. It includes Sunlight readable options in Multi-touch Projected Capacitive touch panels with USB/RS232 controller.

XF1330 includes a high featured controller including optional fully automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight. Also optical enhancements as anti-glare, anti-reflective can be optionally added. It has been designed with a slim frame and reduced depth.

XF1330 inputs are VGA, HDMI, DVI. All inputs are available as factory option.

General specifications

Size

13.3 inches

Aspect

16:9

Native resolution

1280 x 1080px SXGA

Inputs

VGA / DVI / HDMI

Audio

2 x 1.5 W (opt)

Touch Panel

Projected Capacitive, USB-RS232

Power supply

9-36VDC

Power consumption

10W - 14W

Mounting

VESA75

Warranty

12 months international, 24 months Europe

Certification

CE*, e-mark*, EN50155*  (*upon request)

Applications

Automotive (Car - Truck - Ambulance - Firefight)

Connection

All in one cable, 2.5m and 4.5m (IP67)

Mechanical specifications

Dimensions

330.6 x 221 x 27 mm

Weight

800 grs

Enclosure

Plastic and Aluminium, wet painting

Operation temperature

-20ºC to 70ºC max

Vibrations

1G 2-500Hz

Shock

10G 11ms

Protection

IP65 front

Optical specifications

Brightness

300 - 700 nits

Backlight

LED backlight

Backlight lifetime

30.000h

Contrast

1000:1

Optical finish

Anti-glare / Anti-reflective

Enhancements

Sunlight Readable - Transflective enhancements

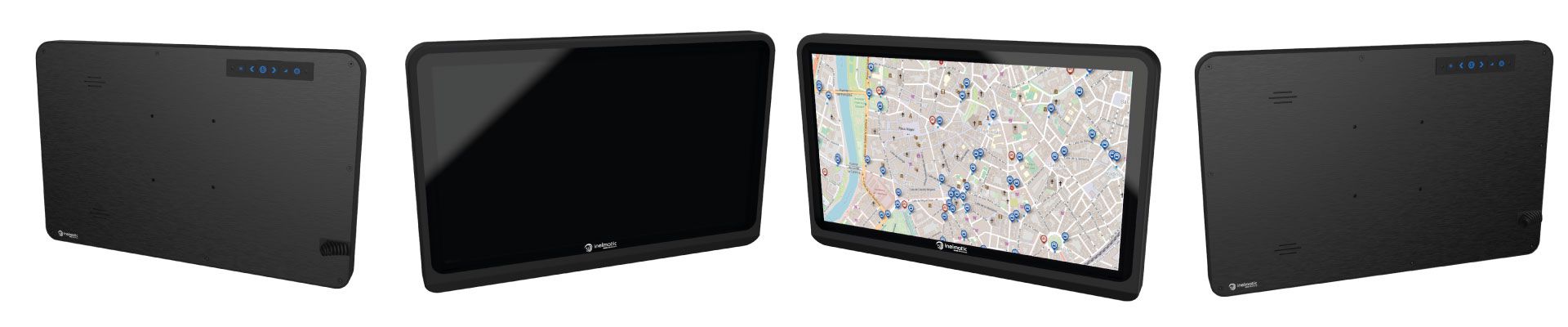

XF1560


XF1560 is a 15.6 inches HD (1920x1080px) monitor, including LED backlight with 300 - 600 nits brightness version with wide viewing angle panel. It includes Sunlight readable options in Multi-touch Projected Capacitive touch panels with USB/RS232 controller.

XF1560 includes a high featured controller including optional fully automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight. Also optical enhancements as anti-glare, anti-reflective can be optionally added. It has been designed with a slim frame and reduced depth.

XF1560 inputs are VGA, HDMI, DVI. All inputs are available as factory option.

General specifications

Size

15.6 inches

Aspect

16:9

Native resolution

1920 x 1080px HD

Inputs

VGA / DVI / HDMI

Audio

2 x 1.5 W (opt)

Touch Panel

Projected Capacitive, USB-RS232

Power supply

9-36VDC

Power consumption

10W - 14W

Mounting

VESA75

Warranty

12 months international, 24 months Europe

Certification

CE*, e-mark*, EN50155*  (*upon request)

Applications

Automotive (Car - Truck - Ambulance - Firefight)

Connection

All in one cable, 2.5m and 4.5m (IP67)

Mechanical specifications

Dimensions

330.6 x 221 x 27 mm

Weight

800 grs

Enclosure

Plastic and Aluminium, wet painting

Operation temperature

-20ºC to 70ºC max

Vibrations

1G 2-500Hz

Shock

10G 11ms

Protection

IP65 front

Optical specifications

Brightness

300 - 600 nits

Backlight

LED backlight

Backlight lifetime

30.000h

Contrast

1200:1

Optical finish

Anti-glare / Anti-reflective

Enhancements

Sunlight Readable - Transflective enhancements
