EDP501

5 inches rugged display:

800x480px (WVGA)
400 / 800 nits
Power / UART inputs

EDP501

EDP701

7 inches rugged display:

800x480px (WVGA)
600 nits
Power & UART inputs

EDP701

EDP800

Industrial and vehicular metal frame Panel PC:

8" in 800x600px / 1024x768px
500/1000 nits with a 1000:1 contrast
Antiglare and antireflective optical finish

EDP800

EDP1000

Industrial and vehicular metal frame monitor with CPU:

10.4" in XGA 1024x768px (4:3)
300/500/1000 nits with a 1000:1 contrast
Aluminium IP65 front / IP20 rear

EDP1000

Panel PC and screen with Intel/ARM CPU - EDP series

EDP Series are industrial grade and vehicular display with CPU: Intel Atom or Quad Core ARM. For automotive integration, for example bus driver display or train driver display, this serie is compliance with international regulations for a wide range power supply requirements.

EDP Series include a wide view angle panel and high brightness TFT with a LED backlight. In terms of optical features, there is a optional treatment for Sunlight readable and transflective enhancements. If you want to add interactivity to the products a Resistive & Multi-touch Projected Capacitive touch panel are also available.

The enclosure has been designed specially with a modern frame in metal and aluminium. In all this serie models the dimmer is fully configurable in automatic and manual mode.

Model	Size	Resolution	CPU
EDP501	5"	800x480px (WVGA)	Intel / ARM
EDP701	7"	800x480px (WVGA)	Intel / ARM
EDP800	8"	800x600px (SVGA) 1024x768px (XGA)	Intel / ARM
EDP1000	10"	1024x768px (XGA)	Intel / ARM

General specifications

General

5 / 7 / 8 / 10 Inches

(Ask for a specific size)

C o l o r s

256K

IP - Ingress Protection

IP20, IP42, IP54, IP65 optional

Ethernet / USB / UART

Customizable inputs

Mechanical

Dimension

(see below drawings)

Mount type

Open frame & Panel mount

Operation Temperature

-25ºC to +70ºC

Vibrations

1G 2-500Hz / 10G 11ms

Applications

Automotive

Railway

Train, metro, tram

Industrial

Industrial machines

Healthcare / Hospital

Medical devices integration

EDP501

EDP501 is a 5 inches (WVGA 800x480px) panel or wall mount screen with integrated CPU for transportation and public vehicles. It has been designed for a very low power consumption and a super fast response time. It’s the ideal solution for integration in bus fleets, bus coaches and railways to obtain important data in real time.

The EDP501 includes a fully configurable manual and automatic dimmer, a high featured controller with automatic and manual backlight adjustment, depending on the ambient light. This very important for public transportation vehicle drivers which makes it suitable for any type of outdoor lighting, including direct sunlight. Besides, the EDP501 optionally includes a chemical strengthened CS glass and a projected capacitive (PCAP) touch panel.

The EDP501 is available with Ethernet and UART inputs. It can be mounted with VESA75 or in panel mount mode.

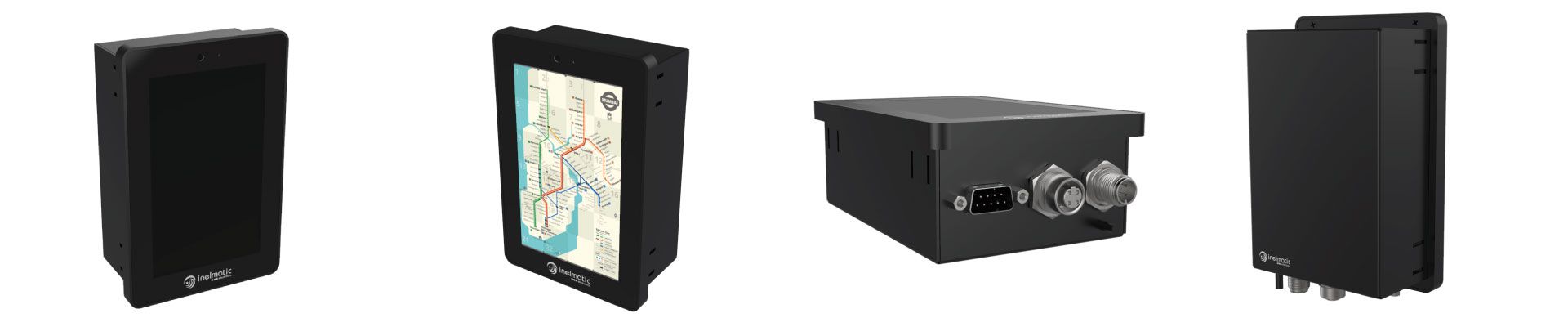

EDP501 includes a fully configurable manual and automatic dimmer - Inelmatic

EDP501 is a 5 inches panel or wall mount screen with integrated CPU for transportation and public vehicles - Inelmatic

EDP501 optionally includes a chemical strengthened CS glass and a projected capacitive touch panel - Inelmatic

EDP501 is available with Ethernet and UART inputs - Inelmatic

General specifications

Size

5 inches WVGA TFT

Aspect

5:3

Native resolution

800 x 480 px

Inputs

Power / UART

Audio

Optional Audio Output Stereo 2x1.5W

Touch

CS Glass / Projected Capacitive Touch

Power supply

9-36VDC / 43-160VDC / 14-160VDC - M12 A Coded

Power consumption

<15W

Mounting

Open Frame / Panel Mount

Warranty

24 months

Certification

EN50155* EN45545* (*upon request)

IP65 front, IP40 rear. Optional full IP65

Response time

16 ms

CPU Specification (ARM)

Cores

Quad-core ARM Cortex-A17

Frequency

1.8GHz

DDR

Up to 4GB DDR4

Graphics

Mali-T760 MP4 GPU

Storage

Internal 8GB to 16GB eMMC , external TF/SD

Watchdog

Configurable watchdog

Mechanical specifications

Dimensions

92 x 140 x 50 mm (see drawing)

Weight

1.5 Kg

Enclosure

Aluminum, Powder Paint

Operation temperature

-25ºC to 70ºC

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

400 / 800 nits

Dimmer

Fully configurable Dimmer with Internal Sensor (opt)

Backlight

LED. min. 50.000h @400nits , 40.000h @ 800 nits

MTBF / Lifespan

Controller and LCD: 100.000h

Contrast

Min 500:1

Angle

130º H, 140º V

Optical finish

Anti-glare / Anti-reflective / None

Enhancements

Sunlight Readable and Transflective Enhancements Available

I/O

Ignition

Integrated digital input for IGN control

RS232/RS485

Optional RS232 / RS485 Port (M12 Connector)

EDP501 Datasheet

Ask for a quote

EDP701

EDP701 is a 7 inches (800x480px) WVGA panel mount Panel PC for transportation and public vehicles. It has been designed for a very low power consumption and a super fast response time. It’s the ideal solution for integration in railway vehicles such as train, metro and subway.

This design consists of a fully configurable guide and also an automated dimmer, a high-performance controller with automated and manual backlight adjustment, depending on ambient light. In addition, the EDP701 additionally includes a chemically enhanced CS glass and a projected capacitive touch panel (PCAP).

The EDP701 is offered with Ethernet and UART inputs. It can be installed in VESA75 or panel mount configuration.

EDP701 optionally includes a chemical strengthened CS glass and a projected capacitive touch panel - Inelmatic

EDP701 is a 7 inches WVGA panel mount Panel PC for transportation and public vehicles - Inelmatic

EDP701 is a 7 inches (800x480px) WVGA panel mount Panel PC for transportation - Inelmatic

EDP701 is a 7 inches WVGA panel mount Panel PC for transportation - Inelmatic

EDP701 is available with Ethernet and UART inputs - Inelmatic
