Panel PC and screen with Intel/ARM CPU - EDP series

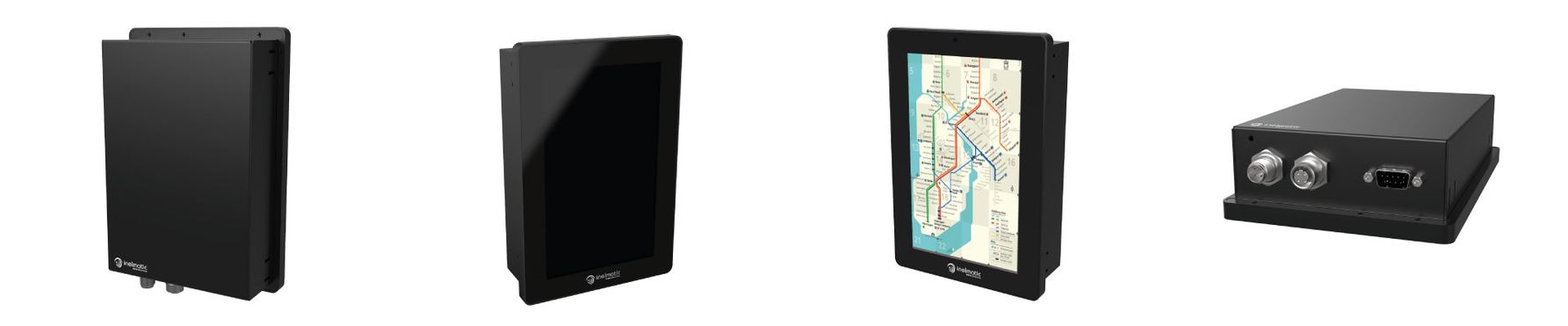

EDP Series are industrial grade and vehicular display with CPU: Intel Atom or Quad Core ARM. For automotive integration, for example bus driver display or train driver display, this serie is compliance with international regulations for a wide range power supply requirements.

EDP Series include a wide view angle panel and high brightness TFT with a LED backlight. In terms of optical features, there is a optional treatment for Sunlight readable and transflective enhancements. If you want to add interactivity to the products a Resistive & Multi-touch Projected Capacitive touch panel are also available.

The enclosure has been designed specially with a modern frame in metal and aluminium. In all this serie models the dimmer is fully configurable in automatic and manual mode.

Model Size Resolution CPU
EDP501
5"
800x480px (WVGA)
Intel / ARM
EDP701
7"
800x480px (WVGA)
Intel / ARM
EDP800
8"
800x600px (SVGA)
1024x768px (XGA)
Intel / ARM
EDP1000
10"
1024x768px (XGA)
Intel / ARM

General specifications

General

5 / 7 / 8 / 10 Inches

(Ask for a specific size)

C o l o r s

256K

IP - Ingress  Protection

IP20, IP42, IP54, IP65 optional

Ethernet / USB / UART

Customizable inputs

Mechanical

Dimension

(see below drawings)

Mount type

Open frame & Panel mount

Operation Temperature

-25ºC to +70ºC

Vibrations

1G 2-500Hz / 10G 11ms

Applications

Automotive

Railway

Train, metro, tram

Industrial

Industrial machines

Healthcare / Hospital

Medical devices integration

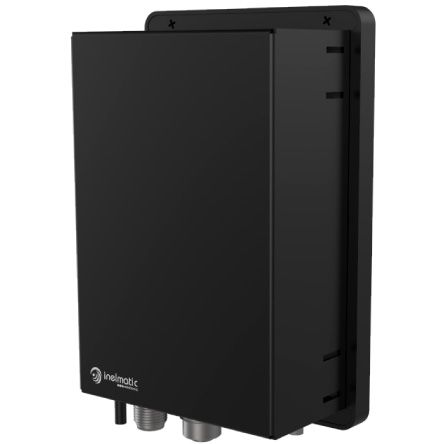

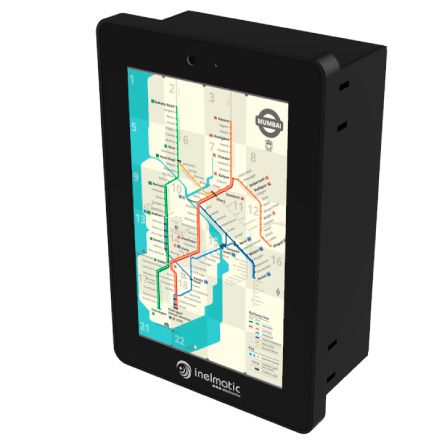

EDP501


EDP501 is a 5 inches (WGA 800x480px) panel or wall mount screen with integrated CPU for transportation and public vehicles. It has been designed for a very low power consumption and a super fast response time. It’s the ideal solution for integration in bus fleets, bus coaches and railways to obtain important data in real time.

The EDP501 includes a fully configurable manual and automatic dimmer, a high featured controller with automatic and manual backlight adjustment, depending on the ambient light. This very important for public transportation vehicle drivers which makes it suitable for any type of outdoor lighting, including direct sunlight. Besides, the EDP501 optionally includes a chemical strengthened CS glass and a projected capacitive (PCAP) touch panel.

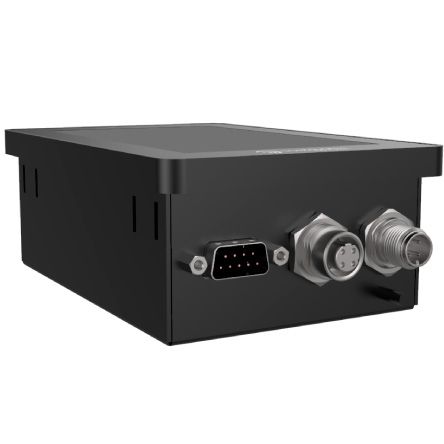

The EDP501 is available with Ethernet and UART inputs. It can be mounted with VESA75 or in panel mount mode.

General specifications

Size

5 inches WGA TFT

Aspect

5:3

Native resolution

800 x 480 px

Inputs

Power / UART

Audio

Optional Audio Output Stereo 2x1.5W

Touch

CS Glass / Projected Capacitive Touch

Power supply

9-36VDC / 43-160VDC / 14-160VDC - M12 A Coded

Power consumption

<15W

Mounting

Open Frame / Panel Mount

Warranty

24 months

Certification

EN50155* EN45545*  (*upon request)

IP

IP65 front, IP40 rear. Optional full IP65

Response time

16 ms

CPU Specification (ARM)

Cores

Quad-core ARM Cortex-A17

Frequency

1.8GHz

DDR

Up to 4GB DDR4

Graphics

Mali-T760 MP4 GPU

Storage

Internal 8GB to 16GB eMMC , external TF/SD

Watchdog

Configurable watchdog

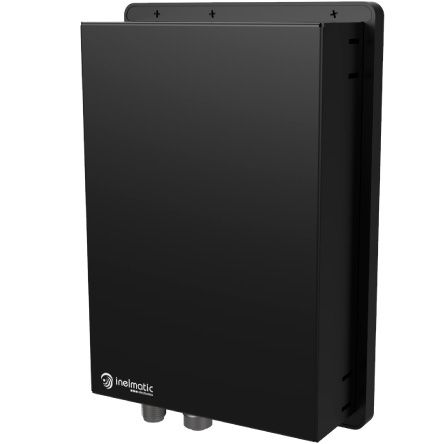

Mechanical specifications

Dimensions

92 x 140 x 50 mm (see drawing)

Weight

1.5 Kg

Enclosure

Aluminum, Powder Paint

Operation temperature

-25ºC to 70ºC

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

400 / 800 nits

Dimmer

Fully configurable Dimmer with Internal Sensor (opt)

Backlight

LED. min. 50.000h @400nits , 40.000h @ 800 nits

MTBF / Lifespan

Controller and LCD: 100.000h

Contrast

Min 500:1

Angle

130º H, 140º V

Optical finish

Anti-glare / Anti-reflective / None

Enhancements

Sunlight Readable and Transflective Enhancements Available

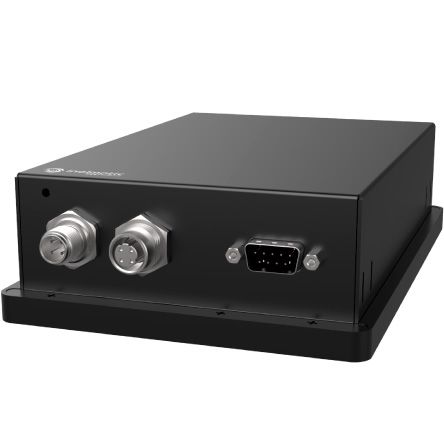

I/O

Ignition

Integrated digital input for IGN control

RS232/RS485

Optional RS232 / RS485 Port (M12 Connector)

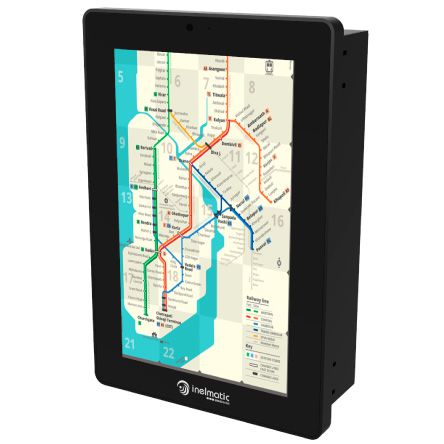

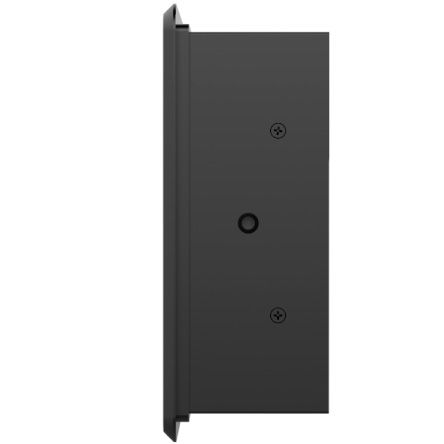

EDP701


EDP701 is a 7 inches (800x480px) WVGA panel mount Panel PC for transportation and public vehicles. It has been designed for a very low power consumption and a super fast response time. It’s the ideal solution for integration in railway vehicles such as train, metro and subway.

This model includes a fully configurable manual and automatic dimmer, a high featured controller with automatic and manual backlight adjustment, depending on the ambient light. Besides, the EDP701 optionally includes a chemical strengthened CS glass and a projected capacitive (PCAP) touch panel.

The EDP701 is available with Ethernet and UART inputs. It can be mounted with VESA75 or Panel mount mode.

General specifications

Size

7 inches WVGA

Aspect

5:3

Native resolution

800 x 480 px

Inputs

Power / UART

Audio

Optional Audio Output Stereo 2x1.5W

Touch

CS Glass / Projected Capacitive Touch

Power supply

9-36VDC / 43-160VDC / 14-160VDC - M12 A Coded

Power consumption

<15W

Mounting

Panel Mount

Warranty

24 months

Certification

EN50155* EN45545*  (*upon request)

IP

IP65 front, IP40 rear. Optional full IP65

Response time

25 ms

CPU Specification (ARM)

Cores

Quad-core ARM Cortex-A17

Frequency

1.8GHz

DDR

Up to 4GB DDR4

Graphics

Mali-T760 MP4 GPU

Storage

Internal 8GB to 16GB eMMC , external TF/SD

Watchdog

Configurable watchdog

Mechanical specifications

Dimensions

127.5 x 188.5 x 50 mm (see drawing)

Weight

1.5 Kg

Enclosure

Aluminum, Powder Paint

Operation temperature

-25ºC to 70ºC

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

600 nits

Dimmer

Fully configurable Dimmer with Internal Sensor (opt)

Backlight

LED. min. 50.000h

MTBF / Lifespan

Controller and LCD: 100.000h

Contrast

Min 500:1

Angle

130º H, 140º V

Optical finish

Anti-glare / Anti-reflective / None

Enhancements

Sunlight Readable and Transflective Enhancements Available

I/O

Ignition

Integrated digital input for IGN control

RS232/RS485

Optional RS232 / RS485 Port (M12 Connector)

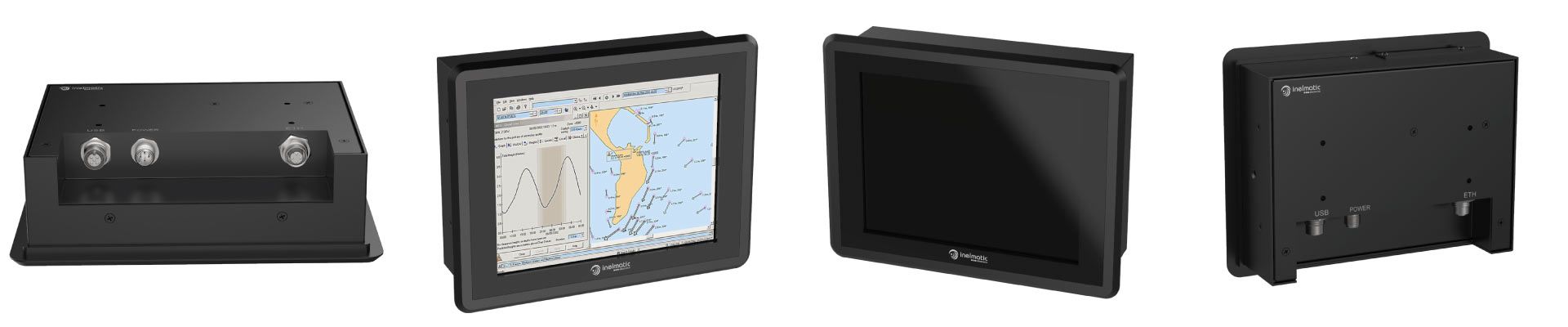

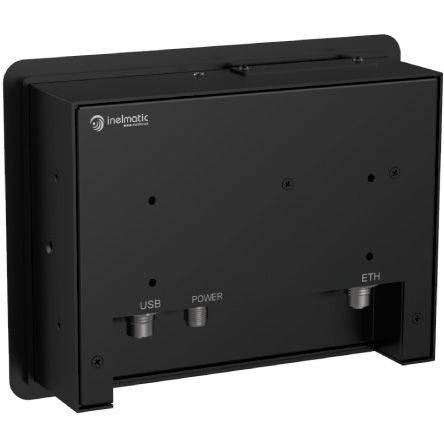

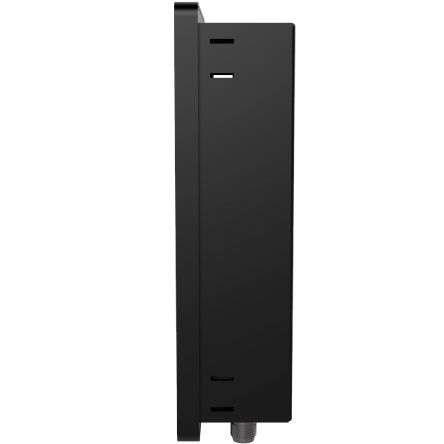

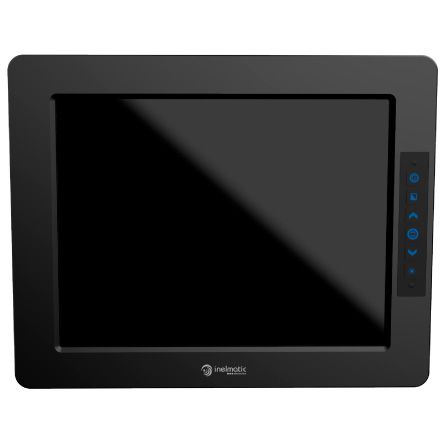

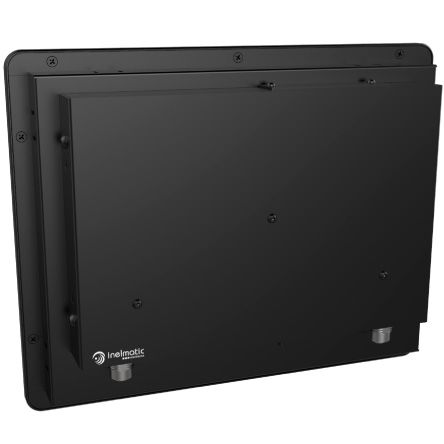

EDP800


EDP800 is a 8 inches (800x600px / 1024x768px) panel mount or stand-alone display with integrated CPU for industrial and automotive purposes. It’s a good choice for HMI and factory machines integration because the enclosure has been built in aluminium and steel.

It includes a fully configurable automatic and manual backlight controller, depending on the ambient light. Besides, the EDP800 optionally includes a resistive / projected capacitive (PCAP) touch panel.

The EDP800 is available with Ethernet and USB inputs. It can be panel or wall mounted with VESA75 fixtures and stand-alone.

General specifications

Size

8 inches TFT (SVGA / XGA)

Aspect

4:3

Native resolution

800x600px / 1024x768px

Inputs

Ethernet / WiFi (optional)

Audio

Optional Audio Output

Touch

Resistive 5 wires / Projected Capacitive

Power supply

9-36VDC / 43-160VDC / 14-160VDC - Isolated -M12 A Coded

Power consumption

18W (500nits) / 27W (1000 nits)

Mounting

Panel mount, Stand-alone, rear custom fixtures

Warranty

24 months

Certification

EN50155*, EN50126*, EN61643-21-2001*  (*upon request)

IP

IP65 front, IP40 rear. Optional full IP65

Response time

16 ms

CPU Specification (ARM)

Cores

Quad-core ARM Cortex-A17

Frequency

1.8GHz

DDR

Up to 4GB DDR4

Graphics

Mali-T760 MP4 GPU

Storage

Internal 8GB to 16GB eMMC , external TF/SD

Watchdog

Configurable watchdog

CPU Specification (Intel)

Cores

E3815 Single Core / E3825 Dual Core / E3845 Quad Core

Frequency

1.46Ghz / 1.33Ghz / 1.91Ghz

DDR

Up to 4GB DDR4

Graphics

Intel Graphics

Storage

Internal 8GB to 16GB eMMC , external C-FAST

Watchdog

Configurable watchdog

Mechanical specifications

Dimensions

220.5 x 171.5 x 64.8mm (see drawing)

Weight

2 Kg

Enclosure

Steel and Aluminum, Powder Paint

Operation temperature

-20ºC to 70ºC

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

700 nits

Dimmer

Configurable with Internal sensor (incl) and External sensor (opt)

Backlight

LED. min.50000h

MTBF / Lifespan

Controller and LCD: 80.000h

Contrast

1000:1

Angle

178º H, 178º V

Optical finish

Anti-glare / Anti-reflective / None

Enhancements

Sunlight readable, NVIS B compliant (opt)

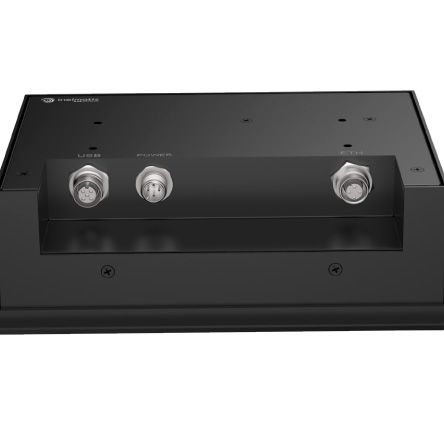

I/O

Ethernet

1 x Base 10/100, Optional Gigabit, M12 Connector D Coded

USB

USB 2.0 x 1 Type A / (M12 connector)

Ignition

Integrated digital input for IGN control

RS232/RS485

RS232 / RS485 Port (M12 Connector)

Digital I/O

8 Input / 4 In 4 Out (Optional)

Video

Optional DVI / HDMI Output

Audio

Optional Line In / Line Out

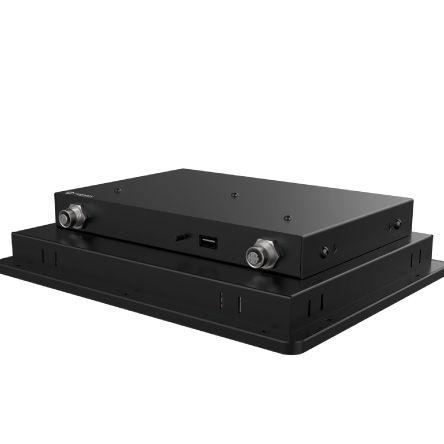

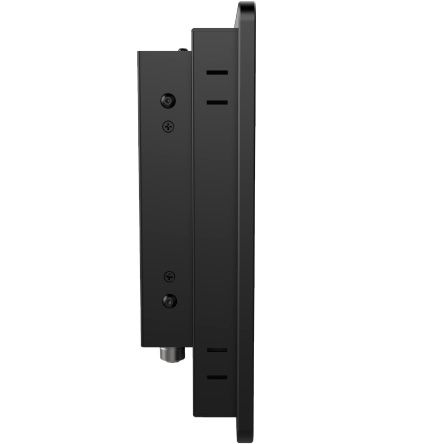

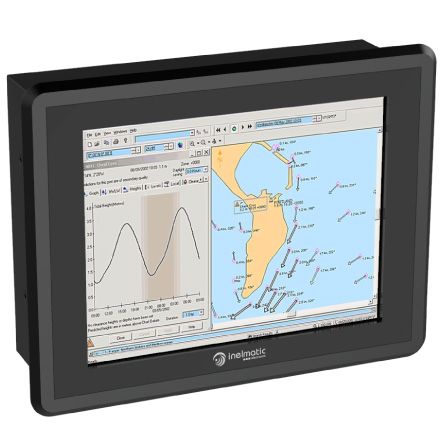

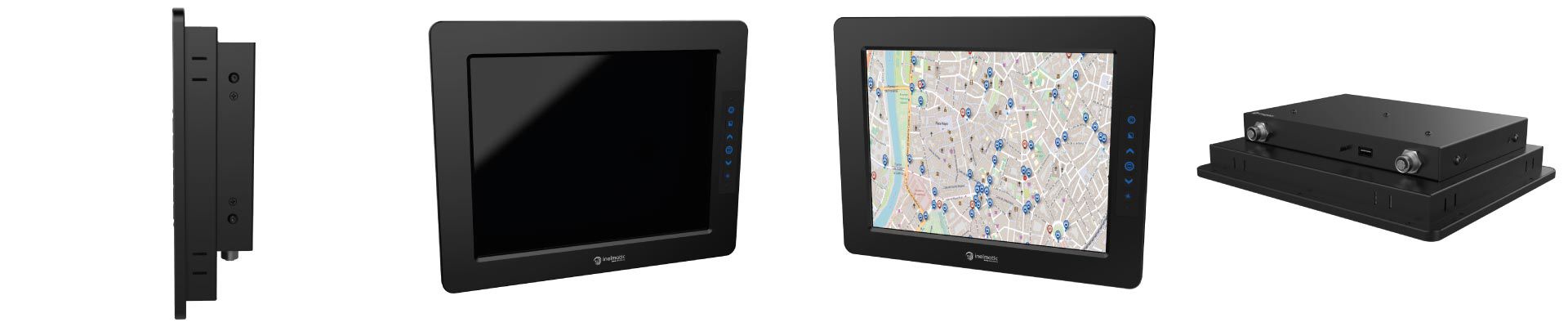

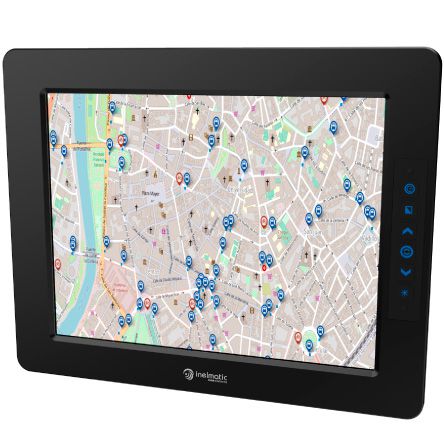

EDP1000


EDO1000 is a 10.4 inches XGA (1024x768px) panel mount embedded computer ready for industrial and Military vehicles integration. It’s IP65 front ingress protection brings a perfect solution for dusty and high humidity environments

It mounts a fully configurable manual and automatic dimmer, which adjust the backlight depending on the ambient light. This is crucial in military and Marine vehicles where lighting conditions change suddenly. It optionally includes a projected capacitive (PCAP) touch panel.

The EDO1000 is available with Ethernet and USB inputs. It can be mounted with VESA75 or Panel mount mode.

General specifications

Size

10 inches WGA TFT

Aspect

5:3

Native resolution

1024 x 768 px

Inputs

USB / Ethernet (standard and M12 connectors)

Audio

Optional Stereo 2x2W

Touch

Projected Capacitive / None

Power supply

12VDC / 24VDC / 43-160VDC / 12-150VDC

Power consumption

25W (max)

Mounting

Panel Mount, VESA 75mm

Warranty

24 months

Certification

CE* / EN50155* / e-mark* (*upon request)

IP

IP65 front, IP20 rear

Response time

20 ms

CPU Specification (Intel)

Cores

Intel® Atom™ SoC E3845/E3825/E3815

Frequency

1.8GHz

DDR

Onboard DDR3L 1066/1333 2G (Up to 4GB)

Graphics

Mali-T760 MP4 GPU

Optional

3G/4G modem, Wi-Fi, BLE 4.0

Mechanical specifications

Dimensions

270 x 215 x 57 mm (see drawing)

Weight

2.7 Kg

Enclosure

Aluminum

Operation temperature

-25ºC to 70ºC

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

300 / 500 / 1000 nits

Dimmer

Fully configurable Dimmer with Internal Sensor (opt)

Backlight

LED. min. 50.000h @400nits , 40.000h @ 800 nits

MTBF / Lifespan

Controller and LCD: 100.000h

Contrast

Min 1000:1

Angle

178º H, 178º V

Optical finish

Anti-glare / Anti-reflective / None

Enhancements

Sunlight Readable and Transflective Enhancements Available

I/O

Output

DVI/HDMI output for secondary display

RS232/RS485

Optional RS232 / RS485 Port (M12 Connector)

Contact

Technical support

Our support team will help you to achieve your requirements
