Rugged computer Series
Specially designed for wide sectors:
-
Transportation
-
Industry
-
Military / Marine
-
Healtcare
VDS1600
Vehicle Digital Signage controller
-
ARM Cortex A9 CPU, Single, Dual, Quad options
-
Power supply car/truck ready (9-36VDC)
-
Input: DVI, 2 x USB, RS232 / RS485, Stereo Audio output
TPC2000
Railway / train embedded computer:
-
Intel Atom N2600 / N2800
-
Ethernet port
-
9-36VDC wide power range
-
Rugged fanless design
VC1700
Embedded fanless industrial and vehicular computer:
-
9VDC-36VDC Isolated
-
ATOM E38xx, E39xx, N3550
-
Input: DVI, 4 x USB, 3 x RS232 / RS485, Stereo Audio output
Embedded and rugged computer series
We have developed a series of computers fit for purpose for Industrial, Railway, Bus/Car and Commercial Military applications. Integrating Intel ATOM or ARM CPUs and very rich Input / Output and Wireless communications.
Our computers are designed to meet the most demanding power supply requirements, including battery-powered vehicles (ISO-7637), Railway (EN50155) and military (MIL-STD-1275). We choose high-quality solid-state components to reach the highest reliability and MTBF. All our products have long life-cycles, ranging from 5 years minimum, up to 30 years, in order to fit our customer's project requirements.
General specifications
CPU
CPU
Intel ATOM / ARM
Memory
2-8GB DDR / 8-32GB Flash Storage
Interfaces
RS232, RS485, CAN BUS, Ethernet, IBIS, IBIS-2, IBISplus
Power Supply ranges
6-36VDC, 48VDC/72VDC/110VDC
Wireless
WiFi
802.11a/b/g 2.4Ghz 5GHz
Bluetooth
BLE 4.0, BLE 5.0, BLE5.2
WAN
GPRS/2G/3G/4G/5G Modems
IoT - Internet of Things
LoRaWAN, Sixfox, Zigbee
O/S, BSP & Software
Linux
Ubuntu, Red Hat, QT Linux
Android
Android 4.2, 5.1, 6, 7.1, 8.0
Windows
Windows 10 IoT OEM licensing
SDK & Source Code Samples
Tools for remote control and firmware upgrade.
Applications
Railway
Train, Tram, Subway, Driver & Passenger Displays
Bus
Coach, Bus, Private mass transport
Taxi fleets
Public and private personal transport
Ambulances
Health transportation fleets
Industrial
Control, Monitoring, SCADA
ATM
Automatic Teller Machines
Parking Management
Ticketing and access control
Marine Displays
Waterproof up to IP67
Airport check-in counters
Public transport check-in counters
Point of Sales
Rugged Terminals and kiosks
Point of Information
Rugged points of information
Smart Home / IoT
Internet of things, Smart home

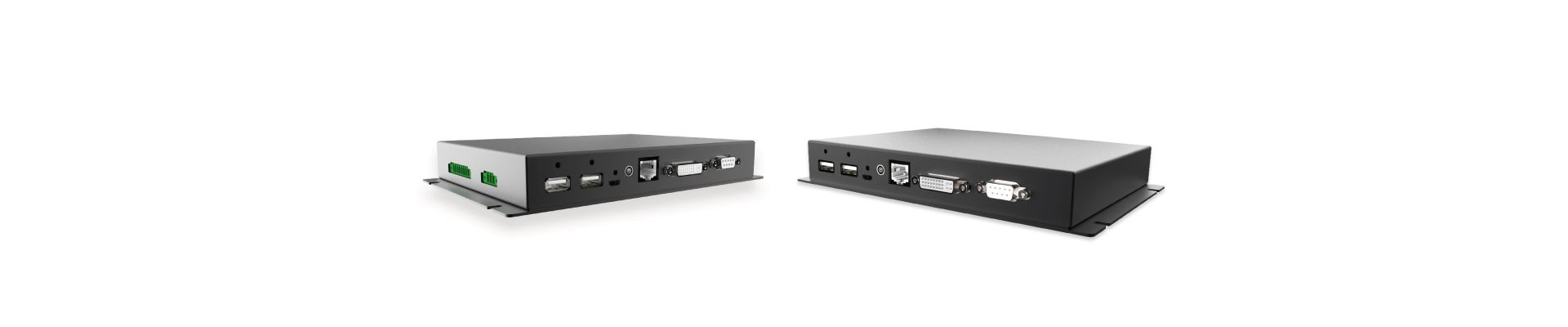

VDS1600
Low cost embedded, compact & lightweight players
Infotainment content player for digital signage, including Intel ATOM or ARM CPU and extensive Input / Output options. High reliability, high MTBF and warranted >10 years lifecycle.
They are perfect for content reproduction in the public transportation or public spaces.
VDS1600 has been installed with our infotainment solutions for bus and railway (BA Series).
Designed to fit a wide range of vehicles, including trains, bus, coaches, police cars, ambulances...
Processor specifications
CPU
IMX6 Single, Dual, Quad
Frequency
800MHz, 1GHz
L2 Cache
Single, Dual: 512KB / Quad: 1024KB
Graphics
Vivante GC2000 + VIvanteGC320 + Vivance GC355
Others
Full HD, IPU x 2, Security
Memory
RAM
1GB to 4GB DDR3
Storage
eMMC 2GB + SATA Port + CFAST
Input / Output
Video
DVI-D optional: HDMI, LVDS
USB 2.0
1 Host, 1 x OTG
UART
1 x RS232 / RS485
Ethernet
Base T 10/100M x 1 (optional 2nd interface)
Digital I/O
2 Input (Isolated 5-50VDC) / 2 Output (Isolated Open Collector, 100mA)
Wireless
BLE 4.0, Wifi, 4G
Mechanical and Environment
Dimmension
200 x 135 x 30 mm
Weight
400 gr
Enclosure
Aluminium
Operation Temp.
-20ºC to 70ºC
Storage Temp.
-30ºC to 85ºC
Vibrations / Shock
2G 2-500Hz / 25G 6ms / EN60068-2-64 / EN60068-2-6 / EN60068-2-29
MTBF
100000 h
Certification
*CE / *Emark (Power Supply ISO16750-2 / ISO76837-2)
Electrical
Power Supply
12/24VDC bus/truck suitable (9-36VDC ISO-16750)
Power Consumption
7W Max.
Protection
Replaceable Fuse 2A

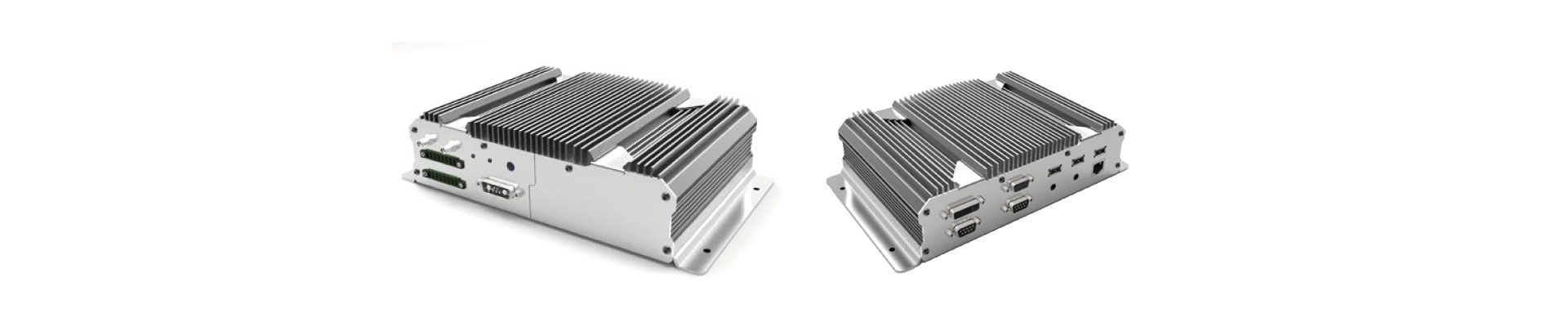

TPC2000
In vehicle computers made to last
Barebone vehicle computers with integrated Intel ATOM or ARM CPU and extensive Input / Output options. High reliability, high MTBF and warranted >10 years lifecycle.
Designed to fit a wide range of vehicles, including trains, bus, coaches, police cars, ambulances...
This computer is affordable and customizable at MOQ 50pcs.
General specifications
CPU
Intel Atom N2600/N2800 1.86GHz processor
Chipset
Intel PCH NM10 Express
Memory
Soldered onboard DDR3 2GB at 1066MHz SDRAM
I/O Interface Front
1 x System reset button
1 x 7W2 power input / 3.81mm terminal block
1 x 8 GPIO, 8 x 3.81mm terminal block
2 x SMA connector, GPS & 3G
2 x LED for power, storage
1 x Accesible SSD tray, SIM and CFast with protecting cover
I/O Interface Rear
1 x DVI
1 x DB9: RS232
1 x Line-out, 1 x Mic-in: Jack 3mm
1 x RJ45: 10/100/1000Mbps Ethernet
Power
Option A
9 - 36VDC, E-mark (*)
Option B
12-150 VDC, EN50155
Ignition
Ignition control included
Power On / Off
Selectable Power on / Shut down delay
Digital input
Wide input range 5-150VDC, Insulated>1500VDC
Digital output
Insulated open collector up to 30VDC, current sink 30mA
Additional specifications
Expansion
1 x SATA interface
5 x USB 2.0
3 x PCIE
1 x LPC
1 x TF socket
1 x I2C
1 x SPI
4 x UART
1 x RS485
1 x PWM
1 x wire bus
1 x CAN bus
Operating system
Windows XP, Windows 7
Operating temp.
-20ºC to 70ºC
Storage temp.
-35ºC to 80ºC

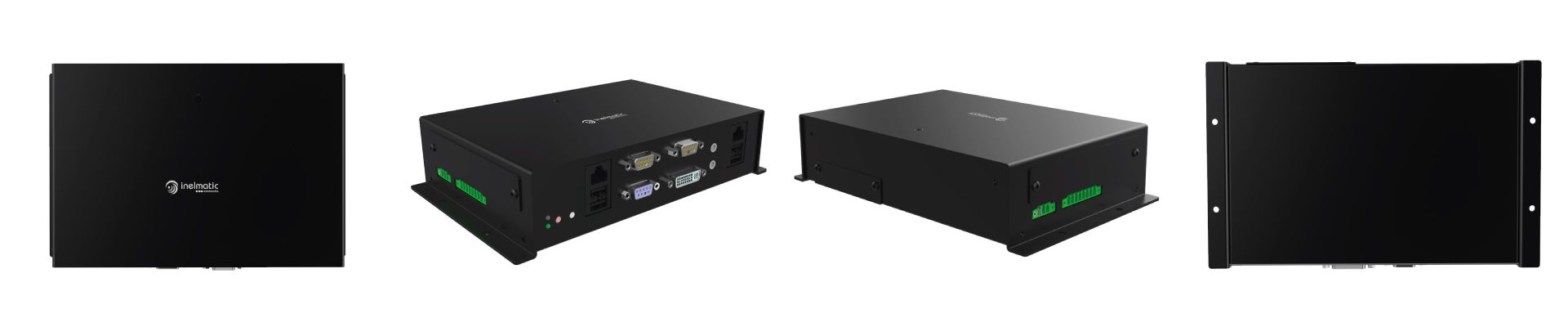

VC1700
Cost effective embedded computers
Industrial and factory automation computers designed to be reliable and achieve the longest MTBF. Including rich I/O, heat management proprietary technology and isolated power supply input from 9 to 36VDC and 16 to 160VDC.
We offer both Intel Atom and ARM CPU options, including extensive support for the O/S installation and BSP customization.
VC1700 is a Embedded Fanless Computer with ATOM processor and up to 4GB DDR3.
Processor specifications
CPU
ATOM E38XX, ATOM E39XX, N3350
Frequency
1.33GHz -2.4GHz
Cores
Single, Dual, Quad
Graphics
Intel Graphics (upto 4K)
Others
High Video Processing Capabilities
Memory
RAM
1GB to 4GB DDR3
Storage
eMMC 2GB + SATA Port + CFAST
Input / Output
Video
DVI-D optional: HDMI, LVDS
USB 2.0
4
UART
3 x RS232 / RS485
Ethernet
2 x Base T 10/100M
Digital I/O
4 Input (Isolated 5-50VDC) / 4 Output (Isolated Open Collector, 100mA)
Wireless
Optional BLE 4.0, Wifi, 4G
Mechanical and Environment
Dimmension
200 x 135 x 48 mm
Weight
400 gr
Enclosure
Aluminium
Operation Temp.
Standard 0ºC to 60ºC
Extended -20ºC to 70ºC
Storage Temp.
-30ºC to 85ºC
Vibrations / Shock
2G 2-500Hz / 25G 6ms / EN60068-2-64 / EN60068-2-6 / EN60068-2-29
MTBF
100000 h
Certification
*CE / *Emark (Power Supply ISO16750-2 / ISO76837-2)
Electrical
Power Supply
12/24VDC bus/¨truck suitable (9-36VDC ISO-16750), Optionally Isolated
Power Consumption
12W Max (E3825)
Protection
Resetable Fuse 2A
