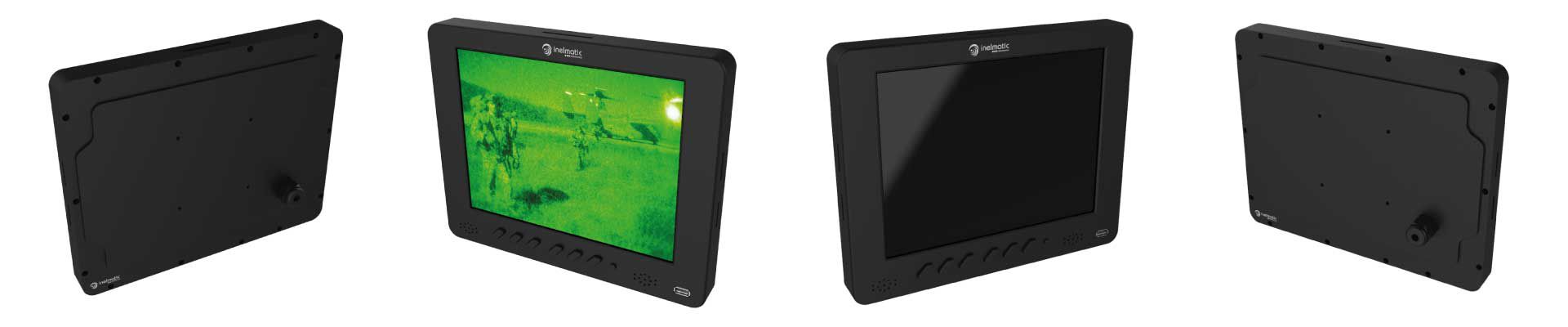

Military/defense & Marine displays - PR series
PR Series are industrial grade and military screens, especially designed for harsh environments with dirt, dust and humidity. The enclosure has been built in steel and aluminium.
They are designed to work in environments where temperature conditions are extreme. The operation temperature range is from -35ºC to 70ºC.
In the front panel there are fully customizable keys to meet with the customer requirements.
Customer can add a resistive or capacitive touch screen panel with I2C, USB or RS232 interface.
This serie is compliance with the MIL-STD 810 certification in shock and vibrations.
(Ask for a specific size)
C o l o r s
LVDS / VGA / DVI / HDMI
(see below drawings)
Open frame type & VESA 75mm
-35ºC to +70ºC
1G 2-50Hz / 10G 11ms
Marine and defense
for military purposes

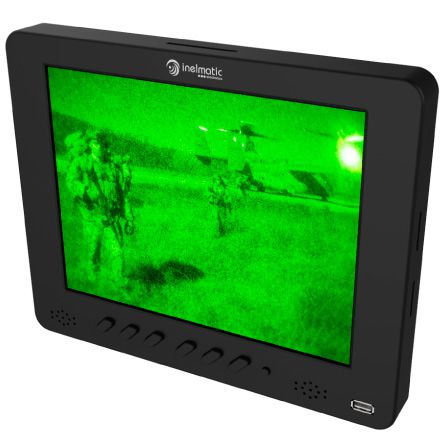

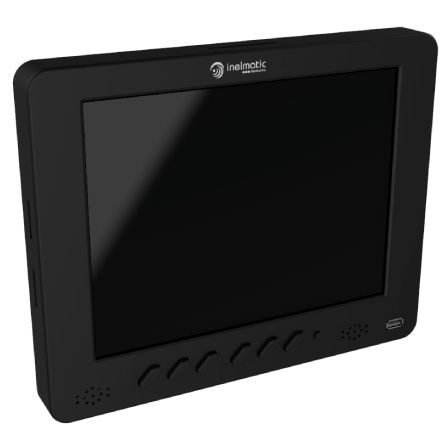

PR1000 is a 10.4 inches XGA monitor (1024x768px). It includes up to 6 fully custom front keys. if necessary, a touch panel can be added: Resistive (4 or 5 wires) or Projected Capacitve (I2C / USB / RS232).
In the input signal part, LVDS, VGA, HDMI, or DVI are factory selectable and stereo audio with 1.6W speakers.
The enclosure has been built in steel and aluminium. The Ingress Protection level is IP65 (except USB connector which has a special dust cover).
It supports wide range power supply fron 6VDC to 36VDC.
The PR1000 includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light,
10 inches XGA TFT
LVDS/VGA/HDMI/DVI (factory Selectable)
Resistive 4 or 5 Wires / Projected capacitive.
Open Frame Type, VESA75 (customization available)
MIL-STD 810 Shock / Vibrations
Industrial / Defense: Military and Marine

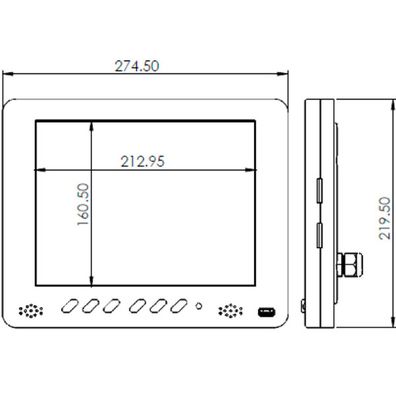

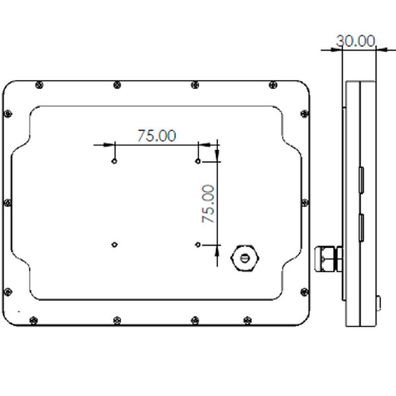

274.5 x 219.5 x 30 mm (see drawing)
Steel and Aluminum, Wet Paint (Powder Paint optional)
-35ºC to 70ºC
178º H, 178º V
Sunlight Readable and Transflective
Our support team will help you to achieve your requirements
