BA Series
Specially designed for public transportation
-
Bus
-
Railway
-
Metro / Subway
-
Tram

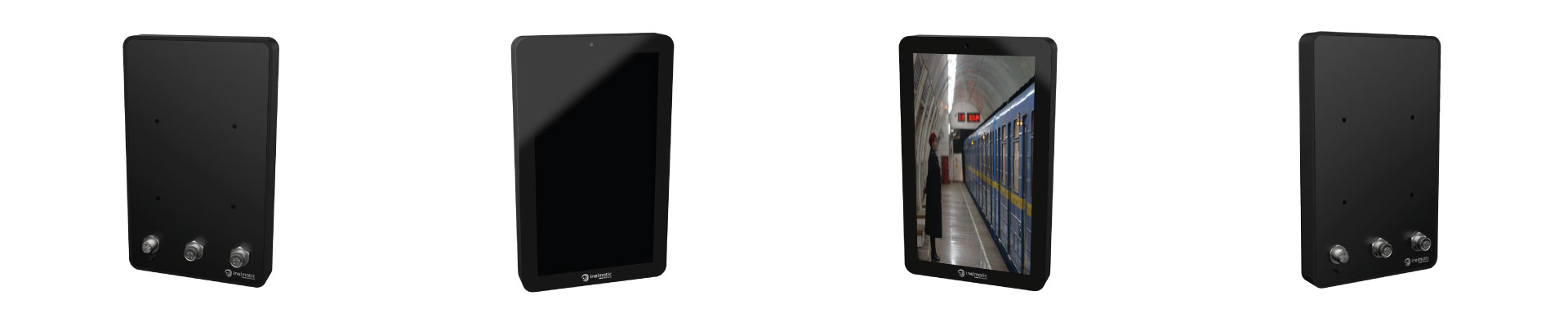

BA905
Embedded display for vehicle integration as digital mirror:
-
9" in 1280x720px (HD 720)
-
700 nits
-
Railway certification (EN50155, EN45545-2)
BA1230
Passenger Infotainment system with:
-
12.3" in 1920x720px
-
1000 nits
-
Railway certification (EN50155, EN45545-2)
BA1335
Passenger Infotainment system with:
-
13.3" in 1920x1080px
-
400 nits
-
Railway certification (EN50155, EN45545-2)
BA1560
Passenger Infotainment system
-
15.6" in 1920x1080px (FHD)
-
1000 nits
-
Railway certification (EN50155, EN45545)

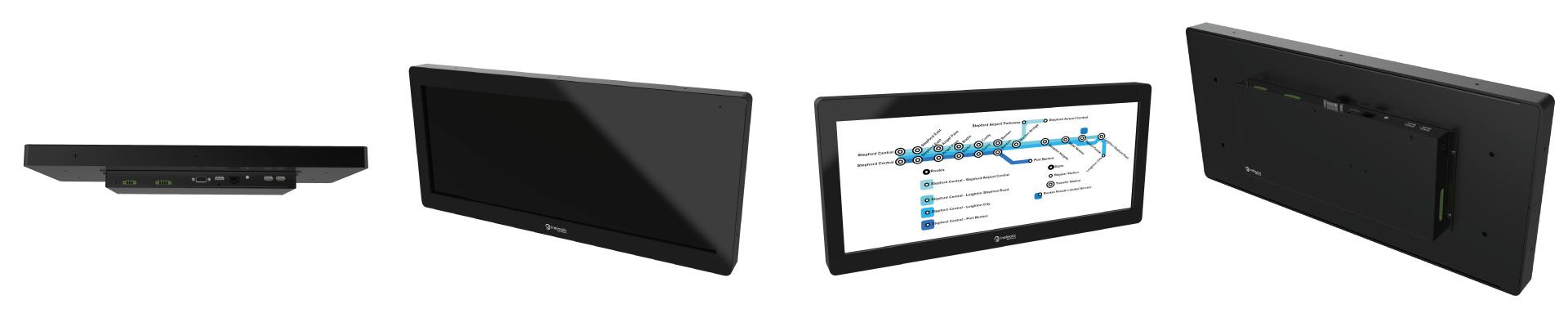

BA2001 / BA2006
Passenger Infotainment system screen
-
20" 1920x720px
-
Railway certification (EN50155, EN45545)
-
Without CPU (BA2001) - With CPU (BA2006)

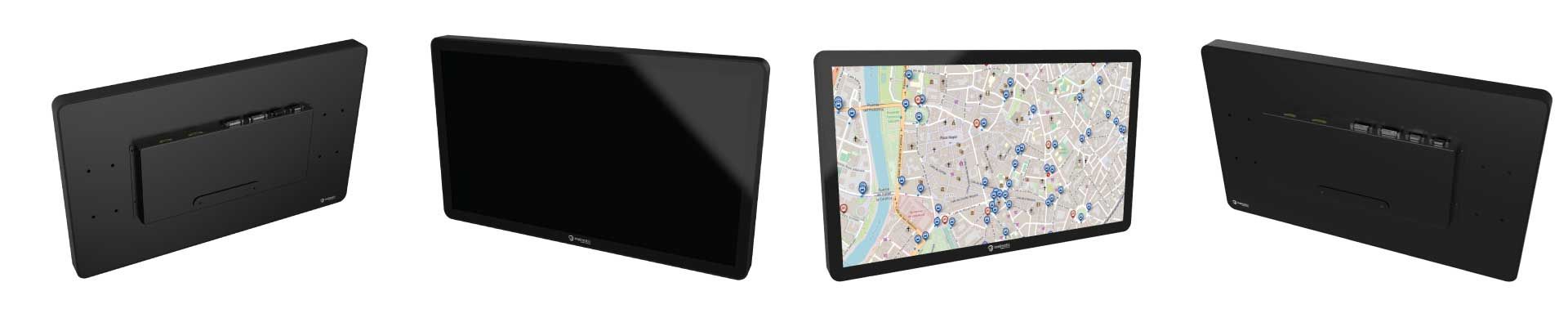

BA2380
Passenger Infotainment system screen monitor:
-
23.8" 1920x1080px Full HD 1080
-
DVI, Optional VGA, HDMI inputs
-
Wide range power suppy (11VDC - 160VDC)
BA2902 / BA2903
Passenger Infotainment system screen:
-
29" 1920x720px
-
29" 1920x720px
-
Railway certification (EN50155, EN45545)
-
White (BA2902) - Black (BA2903)¨enclosure
BA2905 / BA2906
Passenger Infotainment systems with integrated CPU
-
29" 1920x540px
-
Inputs: BA2905 (M12) - BA2906 (Standard)
-
Railway certification (EN50155, EN45545)
BA3201
Passenger Infotainment Display
-
32" 1920x1080px
-
Railway certification (EN50155, EN45545)

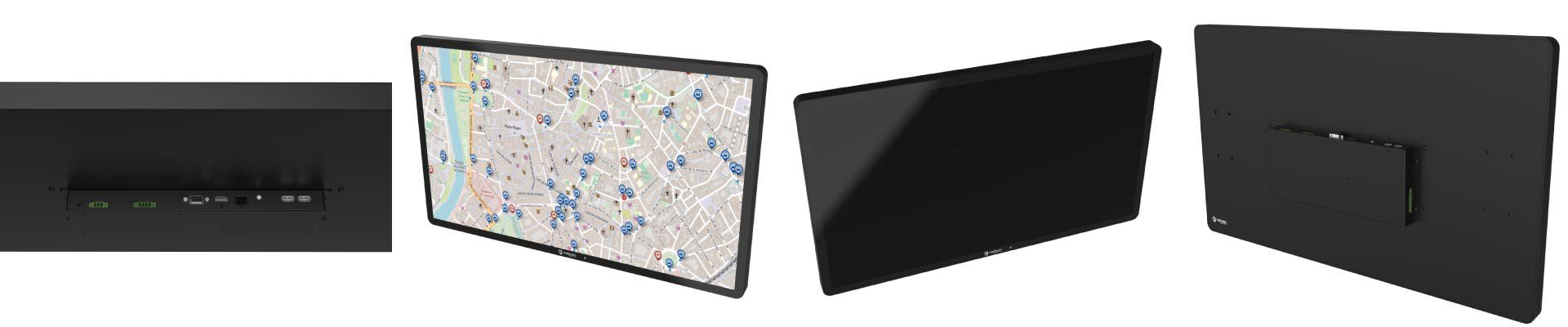

BA3205 - BA3206
Passenger Infotainment screen with CPU ARM / Intel:
-
32" 1920x1080px
-
Inputs: BA3205 (M12) - BA3206 (Standard)
-
Railway certification (EN50155, EN45545)
Infotainment displays for Bus & Train - BA series
BA Series are passenger information and infotainment systems which enable transport operators to bring to passengers accurate and dynamic information to ensure they have a safe and smooth journey:
-
Next stop information
-

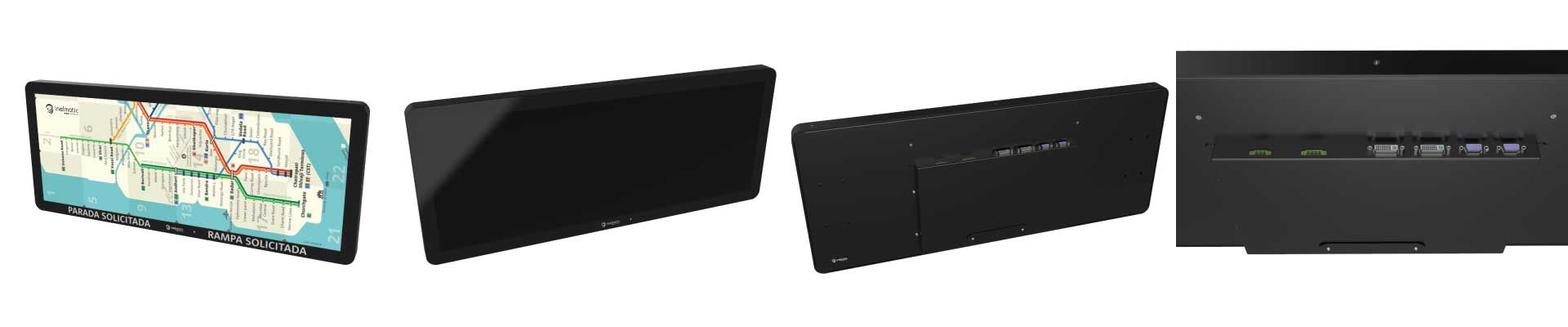

Detailed route information
-
Network maps
-
Operator information
-
News feed
-
Advertisements
All our products are flexible modular infotainment systems and we offer solutions for all requirements. All products in the catalog are available in several display sizes and product lines (Slave, IP/Ethernet and Compact). Our flexibility allow us to meet and exceed customers’ demands.
In the optical part, products include optionally, anti-glare, anti-reflective and transflective enhancements. It also include a high featured controller including automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight (LCD sunlight readable). The Inelmatic optical laboratory researches new materials and technologies to improve the user visual experience.
| Model | Size | Resolution | CPU |
|
BA905
|
9" |
1280x720px (HD 720) |
Yes |
|
BA1230
|
12.3" |
1920x720px |
No |
|
BA1335
|
13.3" |
1920x1080px | Yes |
|
BA1560
|
15.6" |
1920x1080px (FHD 1080) |
No |
|
BA2001
|
20" |
1920x720px
|
No |
|
BA2006
|
20" |
1920x720px
|
Yes |
|
BA2380
|
23" |
1920x1080px (FHD 1080) |
No |
|
BA2902
|
29" |
1920x720px (white) |
No |
|
BA2903
|
29.3" |
1920x720px (black) |
No |
|
BA2905
|
29" |
1920x540px (M12 connectors) |
Yes |
|
BA2906
|
29.3" |
1920x540px |
Yes |
|
BA3201
|
32" |
1920x1080px (FHD 1080) | No |
|
BA3205
|
32" |
1920x1080px (M12 input) | Yes |
|
BA3206
|
32" |
1920x1080px (FHD 1080) | Yes |
General specifications
General
9 to 32 Inches
(Ask for a specific size)
C o l o r s
256K
Wide power supply
From 9VDC to 36VDC / 72/110VDC
LVDS / VGA / DVI / HDMI / Ethernet
Customizable inputs
Mechanical
Minimized frame size
(see below drawings)
Mount type
VESA 75mm and M6x8 for larger sizes
Operation Temperature
Up to -20ºC to +70ºC (see each model)
Vibrations
1G 2-50Hz / 10G 11ms
Applications
Car / automotive
Bus
Railway / metro
Industrial
BA905
BA905 is a 9 inches XGA monitor (1920 x 720 px) with high brightness (700 nits) LED backlight and wide viewing angle. It includes a projected capacitive touch panel with a glass and PMMA in the cover lens. It is perfect for industrial and vehicular applications because it supports VGA / DVI / HDMI / Display Port and Ethernet / USB / RS232 / RS485 inputs. In some projects it has been integrated as digital rear mirror in bus and railway fleets.
It's compliant with automotive power supplies from 9-36VDC and railway 24/72/110VDC (EN50155). Isolated with M12 A Coded connectors.
It has been built in aluminum and it operates in harsh environments from -25ºC to 70ªC.
Optical finish including optionally, anti-glare, anti-reflective and, sunlight readable and transflective enhancements.
General specifications
Size
9 inches TFT
Aspect
8:3
Native resolution
1920x720px - HD 720
Inputs
Ethernet / USB / UART
Audio
Optional Audio Output Stereo 2x1.5W / 2x5W
Cover Lens / Touch
CS Glass / PMMA / Projected Capacitive Touch
Power supply
9-36VDC / 43-160VDC / 14-160VDC - Isolated -M12 A Coded
Power consumption
Average: 10W. Maximum 15W
Mounting
Stand Alone
Warranty
24 months
Certification
EN50155* EN45545* (*upon request)
IP
IP65 front, IP42 rear. Optional full IP65
Response time
15 ms
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17
Frequency
1.8GHz
DDR
Up to 4G DDR4
Graphics
Mali-T760 MP4 GPU
Storage
Internal 8GB to 16GB eMMC , external TF/SD
Watchdog
Configurable watchdog
CPU Specification (Intel)
Cores
E3815 Single Core / E3825 Dual Core / E3845 Quad Core
Frequency
1.46Ghz / 1.33Ghz / 1.91Ghz
DDR
Up to 4G DDR4
Graphics
Intel Graphics
Storage
Internal 8GB to 16GB eMMC , external C-FAST / TF
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
140 x 229.4 x 23mm (see drawing)
Weight
1500 gr
Enclosure
Aluminum
Operation temperature
-25ºC to 70ºC (-30 to 85ºC peak)
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
700 nits (typ)
Backlight
LED. min. 50.000h (autodimming function)
MTBF / Lifespan
Controller and LCD: >100,000h
Contrast
Min 1000:1
Angle
170º H, 170º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight readable and Transflective enhancements
I/O
Ethernet
1 x Base 10/100, Optional Gigabit, M12 Connector D Coded
USB
USB 2.0 (M12 connector)
Ignition
Integrated digital input for IGN control
RS232/RS485
Optional RS232 / RS485 Port (M12 Connector)
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional DVI / HDMI Output
Audio
Optional Line In / Line Out
BA1230
BA1230 is a 12.3 inches XGA monitor (1920 x 720 px) with high brightness (1000 nits) and wide viewing angle. It includes a touch panel (resistive and projected capacitive). It is perfect for industrial and vehicular applications because it supports DVI, VGA and HDMI inputs (fully customizable).
It is a good choice for passenger information in public transportation such as metro, city buses and train.
This display is compliant with automotive power supplies from 9-36VDC, 72VDC, 110VDC, according with railway applications (EN50155).
It has been built with steel and aluminum and it operates in harsh environments from -40ºC to 85ªC.
Optical finish including optionally, anti-glare, anti-reflective and, sunlight readable and transflective enhancements.
General specifications
Size
12.3 inches XGA TFT
Aspect
8:3
Native resolution
1920x720px
Inputs
DVI / VGA / HDMI
Audio
(optional)
Touch Panel
Resistive 4 or 5 Wires / Projected Capacitive Multi-touch
Power supply
9-36VDC, 72VDC, 110VDC
Power consumption
22W / 30W
Mounting
Panel Type, Custom Option, VESA75 optional
Warranty
24 months
Certification
CE*, e-mark*, EN50155* (*upon request)
Applications
Industrial / Vehicular
Response time
16 ms
Mechanical specifications
Dimensions
324.5 x 142.74 x 28mm (see drawing)
Weight
1500 gr
Enclosure
Steel and Aluminum
Operation temperature
-40ºC to 85ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
1000 nits +/-15%
Backlight
LED backlight
Backlight lifetime
min. 50.000h
Contrast
1000:1
Angle
178º H, 178º V
Optical finish
Anti-glare/Anti-reflective
Enhancements
Sunlight Readable and Transflective
BA1335
BA1335 is a 13.3 inches Full HD monitor (1920 x 1080 px) with high brightness, LED backlight and wide viewing angle. Includes a fully configurable manual and automatic dimmer and extensive power options. It supports VGA / DVI / HDMI / Display Port and Ethernet / USB / RS232 / RS485 inputs. It is perfect for applications in public transportation and industry.
It is compatible with 9-36 VDC, 43-160 VDC and 14-160 VDC power supplies. Isolated with M12 A Coded connectors.
It has been built in aluminum and it operates in harsh environments from -20ºC to 70ªC.
Optical finish including optionally, anti-glare, anti-reflective and, sunlight readable and transflective enhancements.
General specifications
Size
13.3 inches TFT
Aspect
16:9
Native resolution
1920x1080px
Inputs
Ethernet / USB
Audio
Optional Audio Output Stereo 2x1.5W / 2x5W
Cover Lens / Touch
CS Glass / Projected Capacitive Touch
Power supply
9-36VDC / 43-160VDC / 14-160VDC
Power consumption
Average: 20W. Maximum 30W
Mounting
Wall / Roof Mount / VESA
Warranty
36 months
Certification
R10*, e-mark* EN50155* EN45545* (*upon request)
IP
IP20. Optional front IP65
Response time
25 ms
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17Dual Cortex-A72 + Quad Cortex-A53 - 64-bit CPU
Frequency
1.8GHz / 2Ghz / 1.5Ghz
DDR
Up to 4G DDR4
Graphics
Mali-T760 MP4 GPU / Mali-T860 MP4
Storage
Internal 8GB to 16GB eMMC
Watchdog
Configurable watchdog
CPU Specification (Intel)
Cores
E3815 / E3825 / E3845 / E3930 / E3930 / N3350
Frequency
1.46Ghz / 1.33Ghz / 1.91Ghz / 2.0Ghz / 2.0Ghz /2.4Ghz
DDR
Up to 8G DDR4
Graphics
Intel Graphics
Storage
Internal 8GB to 32GB eMMC , external C-FAST / TF
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
(see drawing)
Weight
<3Kg
Enclosure
Aluminum and Powder Paint
Operation temperature
-20ºC to 70ºC
Vibrations
2G 2-500Hz
Shock
25G 6ms
Optical specifications
Brightness
400 nits
Backlight
LED. min. 50.000h (autodimming function)
MTBF / Lifespan
Controller and LCD: >100,000h
Contrast
Min 800:1
Angle
178º H, 178º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight readable and Transflective enhancements
I/O
Ethernet
1 x Base 10/100 (RJ45 connector)
USB
USB 2.0 (A Type connector)
RS232/RS485
Optional RS232 / RS485 Port
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional HDMI / Displayport Output
Audio
Optional Line In / Line Out
BA1560
BA1560 is a15.6-inch (1920 x 1080) XGA display with 450, 800 and also 1000 nits illumination alternatives as well as a wide viewing angle. It consists of a projected resistive and capacitive touch panel. It is best for industrial and automotive applications due to the fact that it sustains DVI, VGA and HDMI inputs totally customized.
It has been created with a slim structure and minimal depth. The housing has been developed with steel and aluminum, operating in harsh atmospheres from -40ºC to 85ºC.
This display is certified with automotive power supply materials of 9-36VDC, 72VDC, 110VDC according with railway applications (EN50155).
The optical surface consists of additional enhancements, anti-glare, anti-reflective and sunlight readable and transflective enhancements.
General specifications
Size
15.6 inches HD TFT
Aspect
16:9
Native resolution
1920x1080px
Inputs
DVI / VGA / HDMI
Audio
Optional Stereo Audio
Touch Panel
Resistive 4 or 5 Wires / Projected Capacitive Multi-touch
Power supply
9-36VDC, 72VDC, 110VDC
Power consumption
22W / 30W
Mounting
Panel Type, Custom Option, VESA75 optional
Warranty
24 months
Certification
CE*, e-mark*, EN50155* (*upon request)
Applications
Industrial / Vehicular
Response time
16 ms
Mechanical specifications
Dimensions
375.8 x 228 x 25mm (see drawing)
Weight
2000 gr
Enclosure
Steel and Aluminum
Operation temperature
-40ºC to 85ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
450 / 800 / 1500 nits
Backlight
LED backlight
Backlight lifetime
min. 50.000h
Contrast
1000:1
Angle
178º H, 178º V
Optical finish
Anti-glare/Anti-reflective
Enhancements
Sunlight Readable and Transflective
BA2001
BA2001 is a 20 inches stretched BAR display (1920 x 720 px) with high brightness (350 - 500 - 1000 - 1500 nits)and also wide viewing angles. It consists of a projected resistive and capacitive touch panel. It is ideal for industrial and vehicular applications as it supports fully customizable DVI, VGA and HDMI inputs.
It has been manufactured with a slim frame and reduced depth. The housing has been constructed with steel and aluminum and also operates in harsh environments from -40ºC to 85ºC.
This display is certified with automotive power supplies of 9-36VDC, 72VDC, 110VDC, according to railway applications (EN50155).
Optical coating that additionally includes anti-glare, anti-reflective, sunlight readable and transflective enhancements.
General specifications
Size
20 inches HD TFT
Aspect
16:9
Native resolution
1920x720px
Inputs
DVI In + Daisy Chain Output , HDMI / VGA Optional
Audio
Optional Audio Output Stereo 2x1.5W / 2x5W
Cover Lens / Touch
CS Glass / Safety Glass / Projected Capacitive / None
Power supply
12VDC / 24VDC / 9-36VDC / 43-160VDC / 14-160VDC
Power consumption
28W average, 35W max. Power-On in-rush current: 10A
Mounting
Stand alone
Warranty
24 months
Certification
EN50155* EN45545* (*upon request)
Applications
Industrial / Vehicular
Response time
16 ms
IP
IP65 front, IP40 rear. Optional full IP65
Mechanical specifications
Dimensions
519.4 x 235 x 55mm (see drawing)
Weight
5 Kgr
Enclosure
Aluminum, Powder Paint
Operation temperature
-25ºC to 60ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
350 nits - 500 nits - 1000 nits - 1500 nits
Backlight
LED backlight
Backlight lifetime
min. 50.000h
Contrast
1000:1
Angle
178º H, 178º V
Optical finish
Anti-glare/Anti-reflective
Enhancements
Sunlight Readable and Transflective
BA2005 - BA2006
BA2005 and BA2006 are a very wide 20 inches native TFT monitor (1920 x 720 px) with CPU. They include high brightness and wide viewing angle, mounting a 500 nits LED backlight with a PMMA cover lens which brings a IP65 front and IP40 rear (opt. full IP65). Also includes a projected capacitive touch panel (PCAP).
BA2905 and BA2906 include CPU, Quad-core ARM Cortex-A 17 or Intel (Single core, Dual core, Quad core). It has been designed with slim frame and reduced depth. The enclosure has been built with steel and aluminum and it operates in harsh environments from -25ºC to 55ªC.
Both Panel PC support wide power supplies from 9-36VDC, 43-160VDC, 14-160VDC, according with automotive and railway regulations. It is perfect for industrial and vehicular applications because it supports DVI, VGA and HDMI inputs (fully customizable). Optical finish includes, optionally, anti-glare, anti-reflective and transflective treatments. Dimmer is fully configurable, manual and automatic.
BA2005 includes Ethernet, USB and RS485 in M12 connectors (Power Supply M12 A Coded) for railway applications.
BA2006 includes standard Ethernet, USB and RS485 connectors.
General specifications
Size
20 inches TFT
Aspect
16:9
Native resolution
1920 x 720px
Inputs
Ethernet / WiFi (BA2005 M12 connectors)
Audio
Optional Audio Output Stereo 2x1.5W / 2x5W
Cover Lens / Touch
CS Glass / Safety Glass / Projected Capacitive / None
Power supply
12VDC / 24VDC / 9-36VDC / 43-160VDC / 14-160VDC (BA2005 M12 A Coded)
Power consumption
25W
Mounting
Stand Alone. 4 x M8 fixing
Warranty
24 months
Certification
EN50155* EN45545* (*upon request)
IP
IP65 front, IP40 rear. Optional full IP65
Response time
16 ms
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17
Frequency
1.8GHz
DDR
Up to 4GB DDR4
Graphics
Mali-T760 MP4 GPU
Storage
Internal 8GB to 16GB eMMC , external TF/SD
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
517.9 x 233.5 x 59.8 mm (see drawing)
Weight
2.3 Kg
Enclosure
Steel and Aluminum. Powder Paint / Anodized
Color: Black. Custom colors available
Operation temperature
-25ºC to 60ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
500 nits
Backlight
LED. min. 50.000h
MTBF / Lifespan
Controller and LCD: >80,000h
Contrast
Min 1000:1
Angle
178º H, 178º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight Readable and Transflective Enhancements Available
I/O
Ethernet
1 x Base 10/100, Optional Gigabit, M12 Connector D Coded
Daisy Chain
DVI/HDMI or Ethernet
USB
USB 2.0 x 1 M12 connector, USB 2.0 x 1 Type A
Ignition
Integrated digital input for IGN control
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional DVI / HDMI Output
Audio
Optional Line In / Line Out
BA2380
BA2380 is a very wide 23 inches native FHD TFT monitor (1920 x 1080 px) with high brightness and wide viewing angle. It mounts a 550 nits LED backlight with a PMMA cover lens which brings a IP65 front and IP40 rear (opt. full IP65). Also includes a projected capacitive touch panel (PCAP).
It has been designed with slim frame and reduced depth. The enclosure has been built in aluminum and it operates in harsh environments from -10ºC to 55ªC.
BA2380 supports wide power supplies from 11-36VDC, 43-160VDC, 14-160VDC, according with automotive and railway regulations. It is perfect for industrial and vehicular applications because it supports DVI, optional VGA and HDMI inputs (fully customizable).
Optical finish including optionally, anti-glare, anti-reflective, sunlight readable and transflective enhancements.
General specifications
Size
23.8 inches HD TFT
Aspect
16:9 (HD 1080)
Native resolution
1920x1080px
Inputs
DVI / optional VGA / HDMI
Audio
Audio Output Stereo 2x1.5W / 2x5W
Cover Lens / Touch
CS Glass / PMMA / Projected Capacitive Touch
Power supply
11-36VDC / 43-160VDC / 14-160VDC
Power consumption
30W max. Power-On in-rush current: 10A
Mounting
Open Frame / Panel Mount
Warranty
24 months
Certification
CE*, e-mark*, EN50155* (*upon request)
Applications
Industrial / Vehicular
Response time
10 ms
IP
IP65 front, IP40 rear
Mechanical specifications
Dimensions
567.8 x 340.8 x 30mm (see drawing)
Weight
4000 gr
Enclosure
Aluminum, Powder Paint
Operation temperature
-10ºC to 55ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
550 nits
Backlight
LED backlight
Backlight lifetime
min. 50.000h
Contrast
1000:1
Angle
178º H, 178º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight Readable and Transflective
BA2902 (white) - BA2903 (black)
BA2902 - BA2903 is a 29.3 inches TFT stretched monitor display (1920 x 720 px) with high brightness and also wide viewing angles. It features 900 nits LED backlightwith a PMMA cover lens with IP65 front and IP42 back (opt. full IP65). It additionally consists of a projected capacitive touch panel (PCAP).
It has been developed with a slim frame and also decreases the depth. The housing has been constructed from steel and aluminum and also operates in harsh environments from -25°C to 55°C.
This version supports a wide range of power supplies from 9-36VDC, 14-16VDC, 14-160VDC, in accordance with automotive and also railway regulations. It is ideal for industrial and vehicular applications as it supports fully customizable DVI, VGA and HDMI inputs..
Optical coating including optional anti-glare, anti-reflective, sunlight readable and transflective enhancements.
General specifications
Size
29 inches TFT
Aspect
8:3
Native resolution
1920x720px (+/-10px)
Inputs
DVI/VGA , Optional RJ45 waterproof connector
Outputs
DVI/VGA for Slave Display Optional
Audio
Optional Audio Output Stereo 2x1.5W / 2x5W
Cover Lens / Touch
Tempered Glass or PMMA. Optional up to 7H hardness.
Power supply
12/24VDC bus/truck suitable (10-36VDC ISO-16750)
Power consumption
55W @ 900nits / 30W @500nits
Mounting
Type Wall mount, Roof mount, Desk Mount
Warranty
24 months
Certification
CE* / e-mark* (Power Supply ISO16750-2 / ISO7637-2)
Applications
Industrial / Vehicular
Response time
8 ms
IP
IP65 Front, IP42 Rear (all IP65 optional)
Mechanical specifications
Dimensions
739.1 x 248.85 x 56mm (see drawing)
Weight
7000 gr
Enclosure
Aluminum, Passive Cooling Technology (custom colors available)
Operation temperature
-10ºC to 50ºC Continuous, -20ºC to 60ºC Peak
Vibrations
2G 2-500Hz
Shock
25G 6ms EN60068-2-64 / EN60068-2-6 / EN60068-2-29
Optical specifications
Brightness
900nits (+/-10-%)
Backlight
LED. min. 50.000h @700nits , 70,000h @ 300 nits
MTBF / Lifespan
Controller and LCD: >80,000h
Contrast
Min 4500:1
Angle
178º H, 178º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight Readable and Transflective
BA2905 - BA2906
BA2905 and BA2906 are a very wide 29 inches native TFT monitor (1920 x 540 px) with CPU. They include high brightness and wide viewing angle, mounting a 300 or 700 nits LED backlight with a PMMA cover lens which brings a IP65 front and IP40 rear (opt. full IP65). Also includes a projected capacitive touch panel (PCAP).
BA2905 and BA2906 include CPU, Quad-core ARM Cortex-A 17 or Intel (Single core, Dual core, Quad core). It has been designed with slim frame and reduced depth. The enclosure has been built with steel and aluminum and it operates in harsh environments from -25ºC to 55ªC.
They support wide power supplies from 9-36VDC, 43-160VDC, 14-160VDC, according with automotive and railway regulations. Thus are perfect for industrial and vehicular applications. Optical finish includes, optionally, anti-glare, anti-reflective and transflective treatments. Dimmer is fully configurable, manual and automatic.
BA2905 with Ethernet, USB and RS485 in M 12 connectors (Power Supply M12 A Coded) for railway applications
BA2906 with standard Ethernet, USB and RS485 connectors.
General specifications
Size
29 inches TFT
Aspect
64:27
Native resolution
1920 x 540px
Inputs
Ethernet / USB / UART (BA2905 M12 connectors)
Audio
Optional Audio Output Stereo 2x1.5W / 2x5W
Cover Lens / Touch
CS Glass / Safety Glass / Projected Capacitive / None
Power supply
9-36VDC / 43-160VDC / 14-160VDC - (BA2905 M12 A Coded)
Power consumption
30W average, 45W max. Power-On in-rush current: 10A
Mounting
Open Frame / Panel Mount
Warranty
24 months
Certification
EN50155* EN45545* (*upon request)
IP
IP65 front, IP40 rear. Optional full IP65
Response time
15 ms
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17
Frequency
1.8GHz
DDR
Up to 4GB DDR4
Graphics
Mali-T760 MP4 GPU
Storage
Internal 8GB to 16GB eMMC , external TF/SD
Watchdog
Configurable watchdog
CPU Specification (Intel)
Cores
E3815 Single Core / E3825 Dual Core / E3845 Quad Core
Frequency
1.46Ghz / 1.33Ghz / 1.91Ghz
DDR
Up to 4GB DDR4
Graphics
Intel Graphics
Storage
Internal 8 to 16G eMMC , external C-FAST / TF
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
739.1 x 248.8 x 28.5 mm (see drawing)
Weight
6.5 Kg
Enclosure
Aluminum, Powder Paint
Operation temperature
-10ºC to 55ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
300 / 700 nits (typ)
Backlight
LED. min. 50.000h @700nits , 70,000h @ 300 nits
MTBF / Lifespan
Controller and LCD: >80,000h
Contrast
Min 1200:1
Angle
178º H, 178º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight Readable and Transflective Enhancements Available
I/O
Ethernet
1 x Base 10/100, Optional Gigabit, M12 Connector D Coded
Daisy Chain
DVI/HDMI or Ethernet
USB
USB 2.0 x 1 Type A
Ignition
Integrated digital input for IGN control
RS232/485
RS232 / RS485 Port (M12 Connector)
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional DVI / HDMI Output
Audio
Optional Line In / Line Out
BA3201
BA3201 is a very wide 32" inches native TFT monitor (1920 x 1080 px) with high brightness and wide viewing angle. It mounts a 400 nits LED backlight with a PMMA cover lens which brings a IP65 front and IP40 rear (opt. full IP65). Also includes a projected capacitive touch panel (PCAP).
BA3201 support wide power supplies from 11-36VDC, 43-160VDC, 14-160VDC, according with automotive and railway regulations. It is perfect for industrial and vehicular applications because it supports DVI and HDMI inputs (fully customizable).
Optical finish includes, optionally, anti-glare, anti-reflective and transflective treatments. Dimmer is fully configurable, manual and automatic.
General specifications
Size
32.0 inches
Aspect
16:9 (HD 1080)
Native resolution
1920 x 1080 px
Inputs
VGA / DVI / HDMI
Audio
Optional Audio Output Stereo 2x1.5W / 2x5W
Cover Lens / Touch
CS Glass / PMMA / Projected Capacitive Touch
Power supply
11-36VDC / 43-160VDC / 14-160VDC - M12 A Coded
Power consumption
50W max. Power-On in-rush current: 10A
Mounting
Open Frame / Panel Mount
Warranty
24 months
Certification
(Contact us)
Applications
Industrial / Vehicular
Response time
10 ms
Mechanical specifications
Dimensions
737 x 432 x 28.5 mm (see drawing)
Weight
8 Kg
Enclosure
Aluminum, Powder Paint
Operation temperature
-10ºC to 55ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
400 nits
Backlight
LED backlight
Backlight lifetime
min. 50.000h
Contrast
1200:1
Angle
178º H, 178º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight Readable and Transfletive
BA3205 / BA3206
BA3205 and BA3206 are very wide 32 inches native FHD TFT monitors (1920 x 1080 px) with CPU. They include high brightness and wide viewing angle, mounting a 400 nits LED backlight with a PMMA cover lens which brings a IP65 front and IP40 rear (opt. full IP65). Also includes a projected capacitive touch panel (PCAP).
BA3205 and BA3206 include CPU, Quad-core ARM Cortex-A 17 or Intel (Single core, Dual core, Quad core). It has been designed with slim frame and reduced depth. The enclosure has been built with steel and aluminum and it operates in harsh environments from -10ºC to 55ªC.
They support wide power supplies from 11-36VDC, 43-160VDC, 14-160VDC, according with automotive and railway regulations. Thus are perfect for industrial and vehicular applications. Optical finish includes, optionally, anti-glare, anti-reflective and transflective treatments. Dimmer is fully configurable, manual and automatic.
BA3205 mounts Ethernet, USB and RS485 in M12 connectors (Power Supply M12 A Coded) for railway applications.
BA3206 mounts standard Ethernet, USB and RS485 connectors.
General specifications
Size
32 inches TFT
Aspect
16:9 (HD 1080)
Native resolution
1920 x 1080 px
Inputs
Ethernet / USB / UART
Audio
Optional Audio Output Stereo 2x1.5W / 2x5W
Cover Lens / Touch
CS Glass / Safety Glass / Projected Capacitive / None
Power supply
11-36VDC / 43-160VDC / 14-160VDC
Power consumption
45W average, 60W max. Power-On in-rush current: 10A
Mounting
Open Frame / Panel Mount
Warranty
24 months
Certification
EN50155* EN45545* (*upon request)
IP
IP65 front, IP40 rear. Optional full IP65
Response time
10 ms
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17
Frequency
1.8GHz
DDR
Up to 4GB DDR4
Graphics
Mali-T760 MP4 GPU
Storage
Internal 8GB to 16GB eMMC , external TF/SD
Watchdog
Configurable watchdog
CPU Specification (Intel)
Cores
E3815 Single Core / E3825 Dual Core / E3845 Quad Core
Frequency
1.46Ghz / 1.33Ghz / 1.91Ghz
DDR
Up to 4GB DDR4
Graphics
Intel Graphics
Storage
Internal 8 to 16G eMMC , external C-FAST / TF
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
737 x 432 x 28.5 mm (see drawing)
Weight
8 Kg
Enclosure
Aluminum, Powder Paint
Operation temperature
-10ºC to 55ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
400 nits (typ)
Backlight
LED. min. 30.000h
MTBF / Lifespan
Controller and LCD: >80,000h
Contrast
Min 1200:1
Angle
178º H, 178º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight Readable and Transflective Enhancements Available
I/O
Ethernet
1 x Base 10/100, Optional Gigabit
Daisy Chain
Ethernet
USB
USB 2.0 x 1 Type A
Ignition
Integrated digital input for IGN control
RS232/485
RS232 / RS485 Port (M12 Connector)
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional DVI / HDMI Output
Audio
Optional Line In / Line Out
Contact
Technical support
Our support team will help you to achieve your requirements
