Bus coach & Train seat VOD entertainment system - IMP series

The IMP series are robust displays ready to be installed in public transport such as: train, railroad, subway, bus, etc. The largest European bus and coach bodybuilders have chosen Inelmatic to install our products in their vehicles.

The enclosure has been specially designed for installation in bus fleets to replace older monitor or previous entertainment solution. The optical enhancements allow passengers to obtain a perfect visual experience from the darkest night (NVIS) to bright sunlight. These enhancements have been researched and developed in the Inelmatic Optical laboratory©.

The IMP Series includes a LED backlight for monitors with a 500nits brightness version, wide angle panel with options for Resistive & Multi-touch Projected Capacitive touch panels.

This monitor series includes a high featured controller including automatic and manual backlight adjustment, depending on the ambient lighting, for example in a bus or in a train during a long trip,

General specifications

General

8 / 10 Inches

(Ask for a specific size)

C o l o r s

256K

ARM

Cortex A9 Quad 1.6GHz, Quad-core ARM Cortex-A17

LVDS / VGA / DVI / HDMI

Customizable inputs

Mechanical

Dimension

(see below drawings)

Mount type

Open frame type & VESA 75mm

Operation Temperature

-10ºC to +70ºC

Vibrations

1G 2-50Hz / 10G 11ms

Applications

Automotive

Train / Railway


Bus

Subway

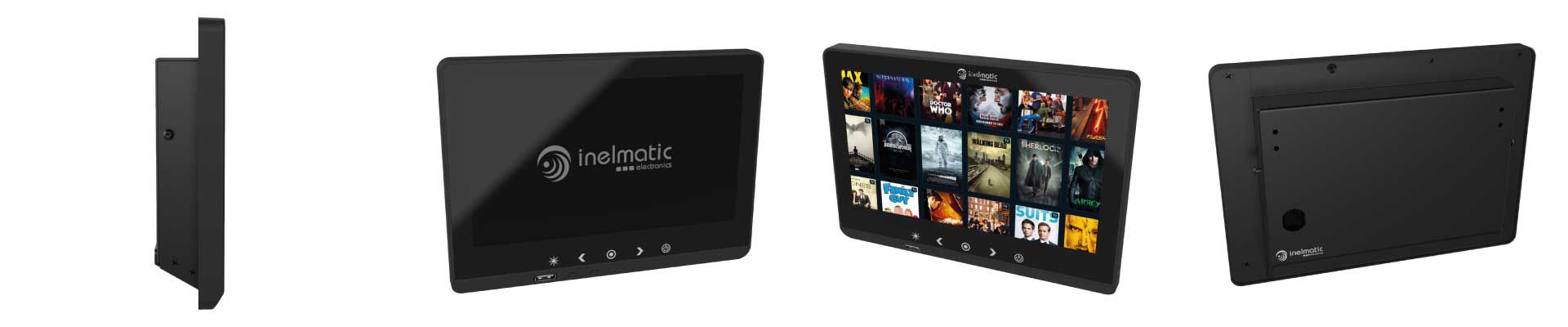

IMP802


IMP802 is an 8 inch multimedia panel pc monitor specially designed in collaboration with large bus companies that wish to integrate latest generation displays into their seats for improved passenger experience and to make the trip more pleasant and enjoyable with VOD content and videogames. The computer includes an ARM Cortex Quad processor and 1GB DDR3 onboard memory (up to 4GB).

An USB connector is mounted in the front case and a RJ45 10/100/1000 Ethernet with optional PoE+ (Power over Ethernet) in the rear part.

IMP802 include a waterproof protection, which follow IP65 front and IP20 rear (anodized aluminum), low power consumption and super fast response time. It’s the ideal solution for installation in train seats and bus seats where passengers frequently drink beverages and liquids.

Includes a high featured controller with automatic and manual backlight adjustment, depending on the ambient lighting in the vehicle, for an improved passenger trip experience. It also includes an optional projected capacitive (PCAP) touch panel with USB controller for user interaction. Custom front touch buttons are also available.

The  IMP802 is available with optional DVI/HDMI output for secondary display, 3G / 4G modem, WiFi and BLE4.0.

Caractéristiques générales

Size

8 inches TFT

Aspect

16:9

Native resolution

1024 x 600 px

Audio

Front 3.5mm Jack x 2

Touch

Projected Capacitive Multi-touch Optional

Power supply

24VDC and PoE

Power consumption

16W Max

Mounting

VESA 75mm / Custom

Warranty

24 months

Certification

CE* / EN50155* / EN45545*/ e-mark*  (*upon request)

IP

IP65 Front / IP20 Rear

Response time

16 ms

CPU Specification (ARM)

Cores

ARM Cortex A9 Quad 1.6GHz + Mali GPU

Memory

Onboard 1GB DDR3 ( Up to 4GB )

Storage

8GB MMC + External

1 x USB 2.0 Type A (optional 2)

Connectors

1 x RJ45 10/100/1000 Ethernet (optional PoE+) RJ45

Optional 1 x RS232/485

Additional RS232/RS485

Options

Optional DVI/HDMI output for secondary display

Optional 3G/4G modem

Optional WiFi

Optional BLE4.0

Mechanical specifications

Dimensions

187.8 x 124.1 x 30.45mm (see drawing)

Weight

1.1Kg

Enclosure

Plastic/Anodized aluminum

Operation temperature

-20ºC to 60ºC

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

500 nits

Backlight

LED. 50000h

MTBF / Lifespan

Controller and LCD: 150,000h

Contrast

1000:1

Angle

178º H, 178º V

Optical finish

Gloss/Anti-glare/Antireflective

Enhancements

Sunlight Readable and Transflective Enhancements Available

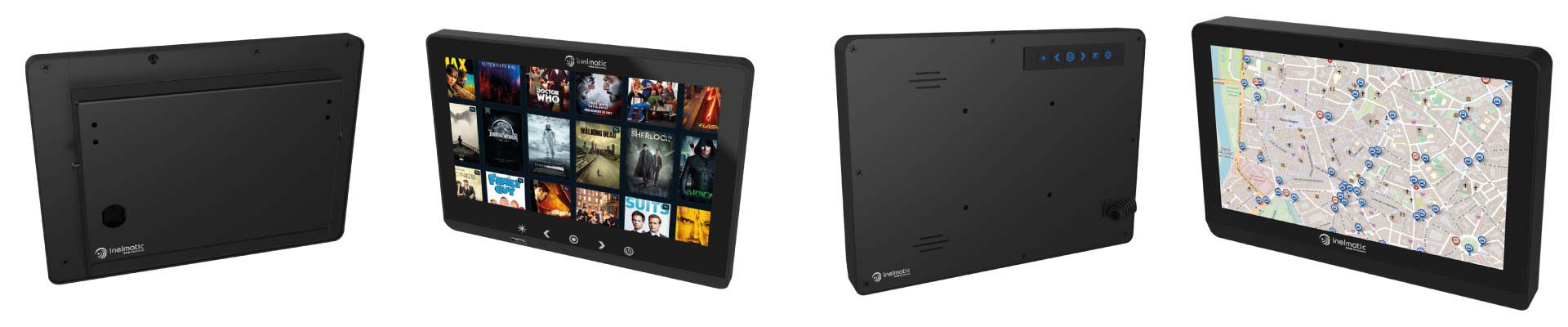

IMP1010


IMP1010 is a 10.1-inch multimedia panel PC monitor specially designed as a train entertainment system for professionals who wish to integrate state-of-the-art displays into their seats to enhance the passenger experience. The computer includes an ARM Cortex Quad processor and 1 GB of on-board DDR3 memory (up to 4 GB).

The IMP1010 includes waterproof protection, IP65 front protection and IP20 rear protection (anodized aluminum). Add also low power consumption and fast response time. Making it the ideal solution for installation in train seats and as a bus entertainment system. Customized rear OSD buttons are available.

It includes a high-performance controller with automatic and manual backlight adjustment, depending on the vehicle's ambient lighting, enhancing the passengers' travel experience. It also includes an optional projected capacitive touch panel (PCAP) with USB controller for user interaction.

The  IMP1010 is available with optional DVI/HDMI output for secondary display, 3G/4G modem, WiFi and BLE4.0.

General specifications

Size

10.1 inches TFT

Resolution

WSVGA

Native resolution

1024 x 600 / 1280 x 800px

Audio

Optional Audio Output

Touch

Resistive 5 Wires/Projected Capacitive

Power supply

9-36V DC / 43-160VDC / 14-160VDC

Power consumption

10W

Mounting

Stand-alone. 4 x M4 fixing

Warranty

24 months

Certification

CE* (*upon request)

IP Rating

IP65 front, IP54 rear

Response time

16 ms

CPU Specification (ARM)

Cores

Quad-core ARM Cortex-A17

Frequency

1.8GHz

Memory

Upto 4G DDR4

Graphics

Touch

Storage

Internal 8 to 16G eMMC , external TF/SD

Watchdog

Configurable watchdog

Mechanical specifications

Dimensions

265 x 193 x 25 (see drawing)

Weight

1.25Kg

Enclosure

Steel and Aluminum. Powder Paint/Anodized

Color: Black. Custom colors available

Operation temperature

-20ºC to 70ºC

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

500 nits

Backlight

LED. 50000h

MTBF / Lifespan

Controller and LCD: 150,000h

Contrast

800:1

Angle

178º H, 178º V

Optical finish

Anti-glare/Anti-reflective

Enhancements

Sunlight Readable and Transflective Enhancements

I/O

Ethernet

1 x Base10/100, optional Gigabit, M12 Connector D Coded

USB

USB 2.0 x 1 M12 connector, USB 2.0 x 1 Type A

Ignition

Integrated digital input for IGN control

Digital I/O

8 Input or 4 in 4 Out optional

Video

Optional DVI/HDMI Output

Audio

Optional Line In/Line Out
