Industrial open frame and panel mount displays - OF series

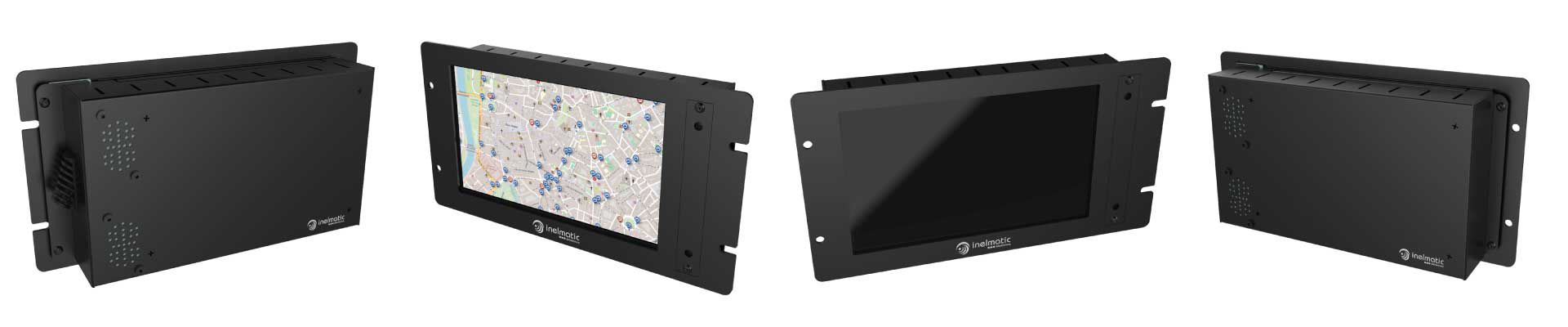

OF Series are industrial grade open frame monitors, from 7" to 42", with a metal or plastic enclosure for a perfect integration in your solution or installation.

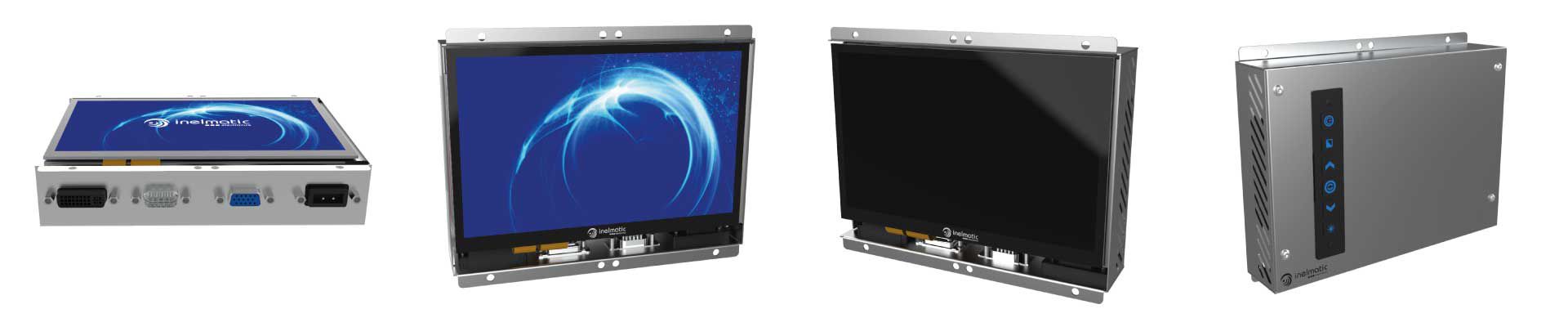

They include LED backlight from low brightness (400nits) to high brightness background (SHB) (1200 nits) versions and wide angle panel. If you need to add human interaction with the monitor there are  options wide Resistive & Multi-touch Projected Capacitive (PCAP) touch panels.

In the optical part, it is possible to add a special lamination as enhancements for a better sunlight readable experience. These enhancements are created in the Inelmatic Optical laboratory©.

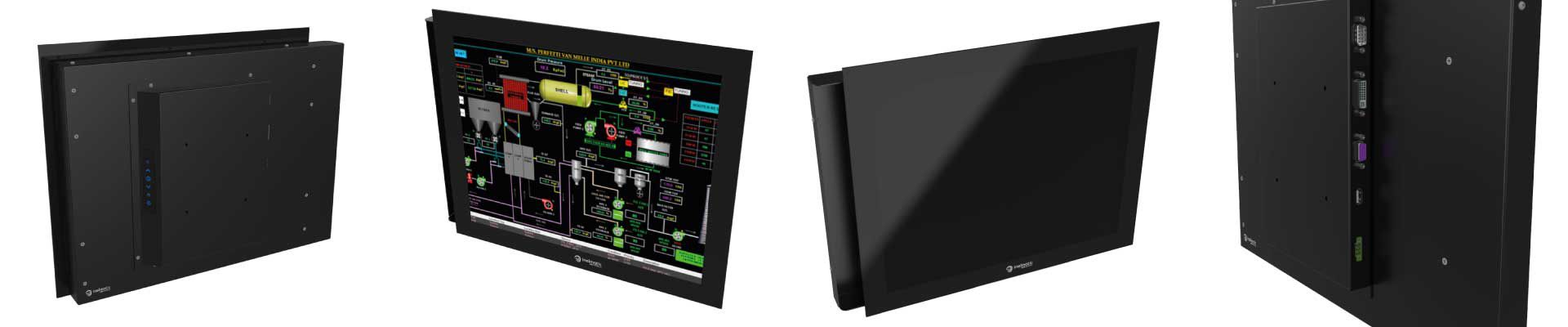

All this serie models include a high featured controller including automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight.

Model Size Resolution Keypad
OF700
7"
800x480px (WVGA)
Rear
OF702
7"
800x480px (WVGA)
None
OF705
7"
800x480px (WVGA)
Rear
OF1000L
10"
800x600px (SVGA)
Rear
OF1004
10"
1024x768px (XGA)
Side
OF1216
12"
1280x1024px (SXGA)
None
OF1504
15"
1280x1024px (SXGA)
Rear
OF1900
19"
1280x1024px (SXGA)
Rear
OF2151 21"
1920x1080px (HD 1080)
None
OF2400 24"
1280x1024px (SXGA)
Rear
OF3156
31"
1920x1080px (HD 1080)
Rear

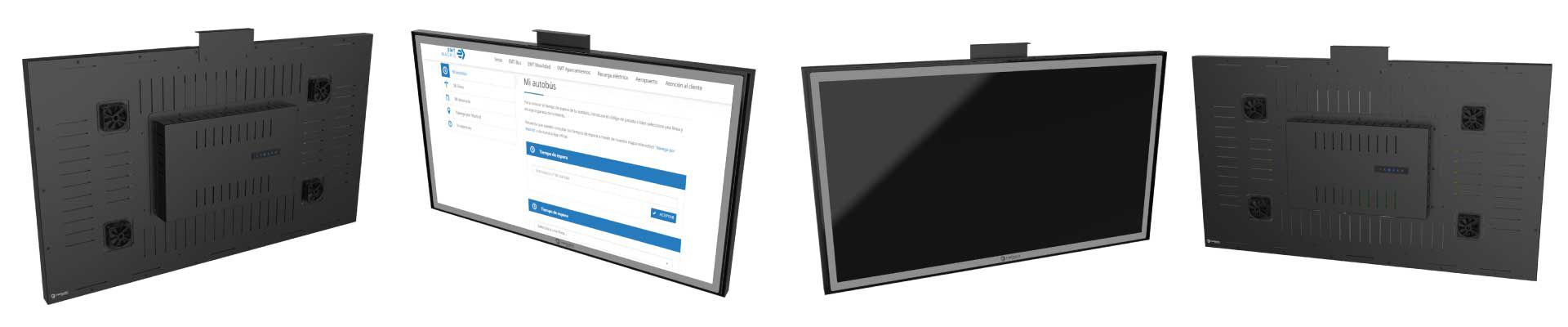

 OF4200  42"
1280x1024px (SXGA)
Rear

General specifications

General

7 / 10 / 12 / 15 / 19 / 24 / 31 / 42 Inches

(Ask for a specific size)

C o l o r s

256K

Autopower on/off



LVDS / VGA / DVI / HDMI

Customizable inputs

Mechanical

Dimension

(see below drawings)

Mount type

Open frame type & VESA 75mm

Operation Temperature

-10ºC to +70ºC

Vibrations

1G 2-50Hz / 10G 11ms

Applications

Automotive


Public transportation


Industrial


Healthcare


OF700


OF700 is a 7 inches WVGA monitor (800 x 480 px),  built with a slim frame and reduced depth.  Optionally resistive or USB/RS232 capacitive touch screen can be added. In the input connectors, LVDS, VGA, HDMI or DVI are factory selectable according customer needs.

In the optical part, included dimmer is fully configurable in manual and automatic mode for a better LED backlight control. It supports high brightness and wide viewing angle for a enhanced user experience.

With an open frame mount design, this serie is ready for the integration in multiple final solutions with an extended operation temperature range, from -20ºC to 70ºC.

According automotive regulations, it works for wide power supply ranges: 9-36VDC, 72VDC, 100VDC, etc... and a very low consumption.

It’s the perfect the Human Machine Interface (HMI) for restricted space and harsh environments, like industry, public transportation vehicles and any other situation where the dimensions and image quality is important, even under strong ambient light or direct sunlight.

General specifications

Size

7 inches WVGA

Aspect

16:9

Native resolution

800x480px

Inputs

LVDS / VGA / DVI / HDMI

Audio

No Audio

Touch Panel

Resistive 4 or 5 wires / Projected Capacitive

I2C / USB / RS232

Power supply

9-36V DC (72V DC, 110 V DC Optional)

Power consumption

10W

Mounting

Open frame type, VESA 75 (customizable)

Warranty

24 months

Certification

CE*, e-mark*, EN50155*  (*upon request)

Applications

Industrial / Vehicular

Response time

16 ms

Mechanical specifications

Dimensions

173 x 113 x 48mm (see drawing)

Weight

700 gr

Enclosure

Steel & Aluminium, wet paint (powder paint opt.)

Operation temperature

-20ºC to 70ºC

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

350 / 500 /1000 nits

Backlight

LED backlight

Backlight lifetime

min. 50.000h

Contrast

500:1

Angle

160º H, 140º V

Optical finish

Anti-glare / Anti-reflective

Enhancements

Sunlight readable and transflective

OF702


OF702 is a 7 inches WVGA monitor (800 x 480 px), built with a special open frame design according customer specifications. It replaces old LCD and CRT monitors in legacy machines and refurbished solutions. Optionally resistive or USB/RS232 capacitive touch screen can be added. In the input connectors, LVDS, VGA, HDMI or DVI are factory selectable, all together in a all-in-one cable.

In the optical part, the LED backlight supports high brightness and wide viewing angle for a enhanced user experience. Speakers are mounted in the rear part.

With an open frame mount design, this model is ready for the integration in multiple final solutions with an extended operation temperature range, from -20ºC to 70ºC. According automotive regulations, it works for wide power supply ranges: 9-36VDC, 72VDC, 100VDC and a very low consumption.

It’s the perfect the Human Machine Interface (HMI) for restricted space and harsh environments, like industry, public transportation vehicles and any other situation where the dimensions and image quality is important, even under strong ambient light or direct sunlight.

OF705


OF705 is a 7 inches WVGA monitor (800 x 480 px), built with a special open frame design according customer specifications. It replaces old LCD and CRT monitors in legacy machines and refurbished solutions. Optionally resistive or USB/RS232 capacitive touch screen can be added. In the input connectors, LVDS, VGA, HDMI or DVI are factory selectable according with the measures of the final screen destination.

In the optical part, the LED backlight supports high brightness and wide viewing angle for a enhanced user experience. Configurable keypad is mounted in the rear part.

With an open frame mount design, this model is ready for the integration in industrial environments, military vehicles, casino & arcade gaming machines and healthcare devices. According automotive regulations, it works for wide power supply ranges: 9-36VDC, 72VDC, 100VDC and a very low consumption.

The design fits for restricted space and harsh environments, like industry, public transportation vehicles and any other situation where the dimensions and image quality is important, even under strong ambient light or direct sunlight.

OF1000L


OF1000L is a 10 inches SVGA monitor (800 x 600 px), built with an open frame mounting option. The enclosure is customizable according old LCD and CRT monitor replacements in legacy machines and refurbished solutions. Optionally resistive or USB/RS232 capacitive touch screen can be added. In the input connectors, LVDS, VGA, HDMI or DVI are factory selectable according with the final destination of the screen.

Rear keypad and OSD are configurable. this size (10 inches) is a good choice for integration in industrial environments, military vehicles, casino & arcade gaming machines and healthcare devices. It works in a wide power supply ranges with a very low consumption. It works fine in restricted space and harsh environments .

OF1004


OF1004 is a 10.4 inches XGA monitor (1024 x 768 px) with 600 or 1000 nits brightness, built with an open frame mounting option. The enclosure is customizable according old LCD and CRT monitor replacemnts in legacy machines and refurbished solutions. Optionally resistive or USB/RS232 capacitive touch screen can be added. In the input connectors, LVDS, VGA, HDMI or DVI are factory selectable according with the final destination of the screen.

Rear keypad and OSD menu are configurable. This size (10 inches) is a good choice for integration in industrial environments, military vehicles, casino & arcade gaming machines and healthcare devices. It works in a wide power supply ranges with a very low consumption.

The rugged metal enclosure fits with Human Machine Interface (HMI) for restricted space and harsh environments. Also enhancements for vision in ambient light or direct sunlight are availables.

General specifications

Size

10.4 inches

Aspect

4:3

Native resolution

1024 x 768 px

Inputs

LVDS / VGA / DVI / HDMI

Audio

No Audio

Touch Panel

Resistive 4 or 5 wires / Projected Capacitive

I2C / USB / RS232

Power supply

9-36V DC

Power consumption

12 - 14W

Mounting

Open Frame type, VESA75 (customizable)

Warranty

24 months

Certification

CE* (*upon request)

Applications

HMI Industiral / Casino / Healthcare / Automotive

Response time

16 ms

Mechanical specifications

Dimensions

251 x 180 x 31.9mm (see drawing)

Weight

1Kg

Enclosure

Steel & Aluminium, paint (powder paint opt.)

Operation temperature

-20ºC to 70ºC

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

600 / 1000 nits

Backlight

LED backlight

Backlight lifetime

50.000h

Contrast

800:1

Angle

178º H, 178º V

Optical finish

Anti-glare / Anti-reflective

Enhancements

Sunlight readable and transflective

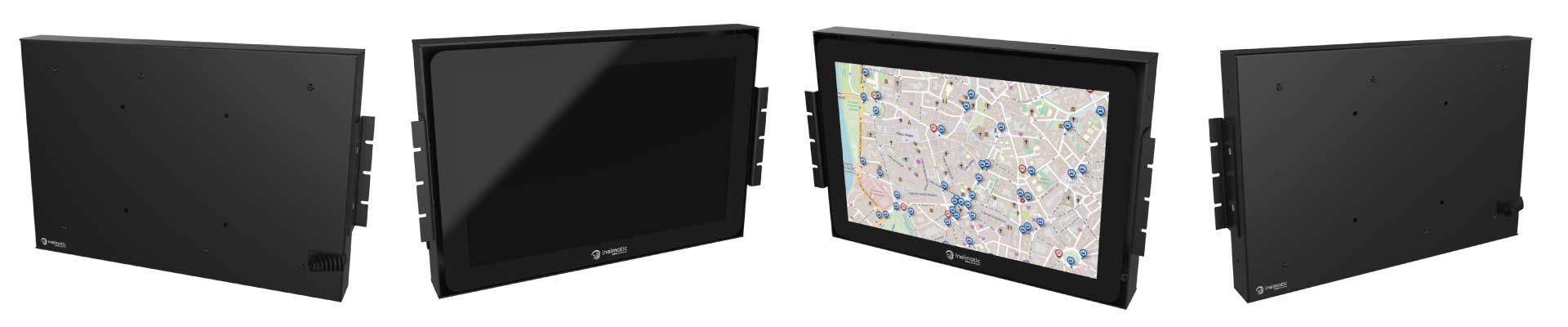

OF1216


OF1216 is a 12 inches WXGA monitor (1280 x 800px), including LED backlight with 400~1000 nits brightness, wide viewing angle panel with Sunlight readable options in Resistive & Multi-touch Projected Capacitive touch panels. It has been designed with a slim frame and reduced depth.

The supported power supply input is from 9 to 36V DC to accomplish with the requirements of the final installation. OF1216 includes a high featured controller including automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night to the bright sunlight.

Besides, the OF1216 includes a resistive or projected capacitive touch panel with I2C/USB/RS232 controller, adding interactivity.

General specifications

Size

12.1 inches

Aspect

16:9

Native resolution

1280 x 800 px

Inputs

LVDS / VGA / DVI / HDMI

Audio

No Audio

Touch Panel (opt.)

Resistive 4 / 5 wires

Projected Capacitive I2C/RS232

Power supply

9-36V DC

Power consumption

15W / 30W

Mounting

Open Frame type, VESA75

Warranty

24 months

Certification

CE* (*upon request)

Applications

Industrial / Defense panel mount

Response time

16 ms

Mechanical specifications

Dimensions

314.4 x 214.4 x 42.3 mm  (see drawing)

Weight

1.5Kg

Enclosure

Steel & Aluminium, paint (powder paint opt.)

Operation temperature

-20ºC to 70ºC

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

400-1000 nits

Backlight

LED backlight

Backlight lifetime

50.000h

Contrast

800:1

Angle

178º H, 178º V

Optical finish

Anti-glare / Anti-reflective

Enhancements

Sunlight readable and transflective

OF1504


OF1504 is a 15 inches XGA monitor (1024 x 768 px), including LED backlight with 350~1000 nits brightness, wide viewing angle panel with Sunlight readable options in Resistive & Multi-touch Projected Capacitive touch panels. It has been designed with a slim frame and reduced depth.

The supported power supply input is from 9 to 36V DC to accomplish with the requirements of the final installation. OF1504 includes a high featured controller including automatic and manual backlight adjustment, depending of the ambient light.

Besides, the OF1504 includes a resistive or projected capacitive touch panel with I2C/USB/RS232 controller, adding interactivity.

General specifications

Size

15 inches

Aspect

4:3

Native resolution

1024 x 768 px

Inputs

LVDS / VGA / DVI / HDMI

Audio

No Audio

Touch Panel (opt.)

Resistive 4 / 5 wires

Projected Capacitive USB/I2C/RS232

Power supply

9-36VDC

Power consumption

15W -30W

Mounting

Open Frame type, VESA75

Warranty

24 months

Certification

CE*, e-mark*  (*upon request)

Applications

Industrial - Panel mount

Response time

16 ms

Mechanical specifications

Dimensions

342 x 273 x 35 mm  (see drawing)

Weight

800 grs

Enclosure

Steel & Aluminium, paint (powder paint opt.)

Operation temperature

-20ºC to 70ºC

Vibrations

1G 2-500Hz

Shock

20G 11ms

Optical specifications

Brightness

350/1000 nits

Backlight

LED backlight

Backlight lifetime

50.000h

Contrast

1000:1

Angle

170º H, 170º V

Optical finish

Anti-glare / Anti-reflective

Enhancements

Sunlight readable and transflective

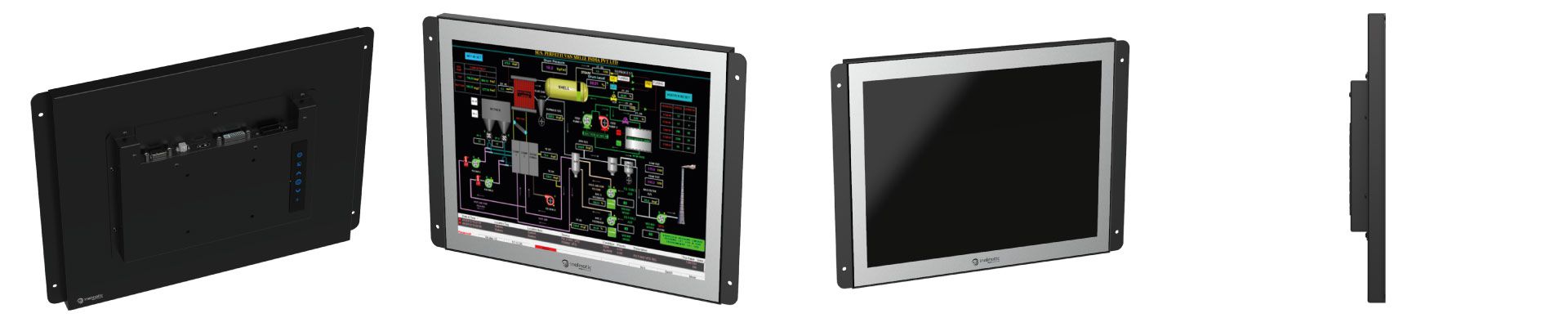

OF1900


OF1900 is a 19 inches SXGA monitor (1280x1024px), including LED backlight with 350~1600 nits brightness and wide viewing angle panel with Sunlight readable options. It has been designed with a slim frame and reduced depth.

The supported power supply input is from 9 to 36V DC to accomplish with the requirements of the final installation. OF1900 includes a high featured controller including automatic and manual backlight adjustment, depending of the ambient light. Rear keypad and OSD menu are configurable.

Besides, the OF1900 includes a resistive or projected capacitive touch panel with I2C/USB/RS232 controller, adding interactivity.

General specifications

Size

19 inches

Aspect

5:4

Native resolution

1280 x 1024 px

Inputs

LVDS / VGA / DVI / HDMI

Audio

No Audio

Touch Panel

Resistive 4 or 5 wires / Projected Capacitive

I2C / USB / RS232

Power supply

9-36VDC

Power consumption

15W - 30W

Mounting

Open Frame type, VESA75 (customizable)

Warranty

24 months

Certification

CE* (*upon request)

Applications

Industrial - Digital Signage kiosks

 Response time

16 ms

Mechanical specifications

Dimensions

438 x 370 x 38.3mm (see drawing)

Weight

2.2KG

Enclosure

Steel & Aluminium, paint (powder paint opt.)

Operation temperature

0ºC to 60ºC max

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

350 - 1600 nits

Backlight

LED backlight

Backlight lifetime

50.000h

Contrast

1000:1

Angle

178º H, 178º V

Optical finish

Anti-glare / Anti-reflective

Enhancements

Sunlight Readable - Transflective

OF2151


OF2151 is a 21 inches HD 1080 monitor (1920x1080px), including LED backlight with 350 / 500 / 900 nits brightness version, wide viewing angle panel with Sunlight readable options in Resistive & Multi-touch Projected Capacitive touch panels with I2C/USB/RS232 controller. It has been designed with a slim frame and reduced depth.

It supports power supply input ranges from 12VDC, 24VDC, 9-36VDC, 43-160VDC, 14-160VDC to accomplish with automotive regulations.  Railway certifications in electronic equipment such as EN50155 and EN45545 are optionally available. In the rear connectors part, it mounts DVI In + Daisy Chain Output, HDMI and VGA.

OF2151 includes a high featured controller including automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night to the direct sunlight.

General specifications

Size

21.5 inches XGA TFT

Aspect

16:9

Native resolution

1920x1080px

Inputs

DVI In + Daisy Chain Output, HDMI, VGA optional

Audio

Optional audio stereo 2x1.5W / 2x1.5W

Touch Panel

Optional Projected Capacitive / None

Cover lens

CS Glass / Safety Glass

Power supply

12VDC / 24VDC / 9-36VDC / 43-160VDC / 14-160VDC

Power consumption

28W average, 35W max. Power

Mounting

Open frame

Warranty

24 months

Certification

EN50155* EN45545* (* upon request)

Applications

Industrial / Vehicular

Response time

16 ms

Mechanical specifications

Dimensions

563.7 x 323.3 x 44 mm (see drawing)

Weight

5Kg

Enclosure

Aluminum, Powder Paint

Operation temperature

-25ºC to 70ºC

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

350 / 500 / 900 nits

Dimmer

Fully configurable Dimmer with Internal / External sensor (optional)

Backlight

LED backlight

Backlight lifetime

min. 50.000h

Contrast

1000:1

Angle

178º H, 178º V

Optical finish

Anti-glare/Anti-reflective

Enhancements

Sunlight Readable and Transflective

OF2400


OF2400 is a SXGA 24 inches monitor (1280x1024px), includes a LED backlight with 350~700 nits brightness versions and wide viewing angle panel. It has been designed with a slim frame and reduced depth.

OF2400 includes a high featured controller including automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight.

This monitor is a good option for locked-gate control in railway and subway stations. Contact us for more information about real showcases.

General specifications

Size

24

Aspect

16:3

Native resolution

1920 x 360 px

Inputs

VGA / DVI / HDMI / USB

Audio

No Audio

Touch Panel

None

Power supply

24VDC

Power consumption

20W - 22W - 30W

Mounting

Open Frame type, VESA75 (customizable)

Warranty

24 months

Certification

CE* (*upon request)

Applications

Access control turnstiles

Response time

16 ms

Mechanical specifications

Dimensions

621.7 x 141.1 x 44.1 mm (see drawing)

Weight

3.2KG

Enclosure

Steel & Aluminium, paint

Operation temperature

-20ºC to 65ºC max

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

350 - 700 nits

Backlight

LED backlight

Backlight lifetime

50.000h

Contrast

1000:1

Angle

178º H, 178º V

Optical finish

Anti-glare / Anti-reflective

Enhancements

Sunlight Readable - Transflective enhancements

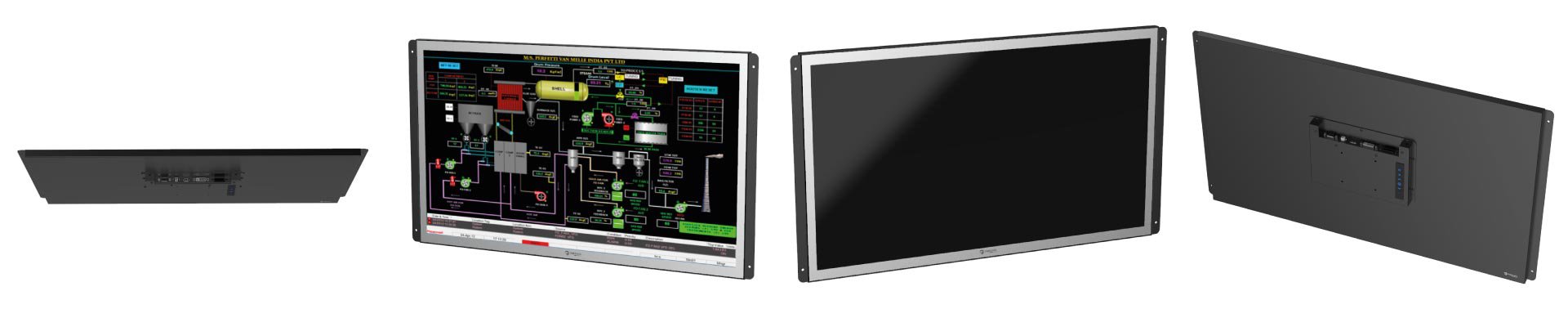

OF3156


OF3156 is a 31.5 inches HD 1080 monitor (1920x1080px), including LED backlight with 350~1000 nits brightness, wide viewing angle panel with Sunlight readable options. It has been designed with a slim frame and reduced depth.

It supports LVDS, VGA, HDMI and DVI inputs (factory selectable). OF3156 includes a high featured controller including automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight.

Besides, the OF3156 includes a resistive or projected capacitive touch panel with I2C/USB/RS232 controller, adding interactivity.

It is also available in 42" (OF4216) and 43" (OF4316). For further details, please ask our sales department through the contact form.

General specifications

Size

31.5 inches

Aspect

16:9

Native resolution

1920 x 1080 px (HD 1080)

Inputs

LVDS / VGA / DVI / HDMI

Audio

No Audio

Touch Panel

Resistive 4 or 5 wires / Projected Capacitive

I2C / USB / RS232

Power supply

24VDC

Power consumption

40W - 85W

Mounting

Open Frame type, VESA75 (customizable)

Warranty

24 months

Certification

CE* (*upon request)

Applications

Kiosks and Digital signage

 Response time

16 ms

Mechanical specifications

Dimensions

735 x 436 x 35mm (see drawing)

Weight

5 Kg

Enclosure

Steel & Aluminium, paint (powder paint opt.)

Operation temperature

-10ºC to 60ºC max

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

350 - 1000 nits

Backlight

LED backlight

Backlight lifetime

50.000h

Contrast

1000:1

Angle

178º H, 178º V

Optical finish

Anti-glare / Anti-reflective

Enhancements

Sunlight Readable - Transflective enhancements

OF4200


OF2400 is a 42 inches HD 1080 monitor (1920x1080px), which includes a LED backlight with 700 nits brightness, wide viewing angle panel with Sunlight readable options. It has been designed with a slim frame and reduced depth.

The supported power supply input is 24V DC to accomplish with the requirements of the final installation: kiosks, digital signage and retail or restaurant advertising screen displays

For integration in ticket vendor machines, the OF4200 includes a projected capacitive touch panel with I2C/USB/RS232 controller, adding interactivity.

General specifications

Size

42 inches

Aspect

16:9

Native resolution

1920 x 1080 px

Inputs

VGA / DVI

Audio

No Audio

Touch Panel

Projected Capacitive. I2C / USB / RS232

Power supply

24VDC

Power consumption

105W

Mounting

Open Frame type (customizable)

Warranty

24 months

Certification

CE* (*upon request)

Applications

Train / Bus station kiosk ticket vendor

 Response time

16 ms

Mechanical specifications

Dimensions

587 x 999 x 87mm (see drawing)

Weight

7 KG

Enclosure

Steel & Aluminium, paint (powder paint opt.)

Operation temperature

-20ºC to 60ºC max

Vibrations

1G 2-500Hz

Shock

10G 11ms

Optical specifications

Brightness

700 nits

Backlight

LED backlight

Backlight lifetime

50.000h

Contrast

4000:1

Angle

178º H, 178º V

Optical finish

Anti-glare / Anti-reflective

Enhancements

Sunlight Readable - Transflective enhancements

Contact

Technical support

Our support team will help you to achieve your requirements
