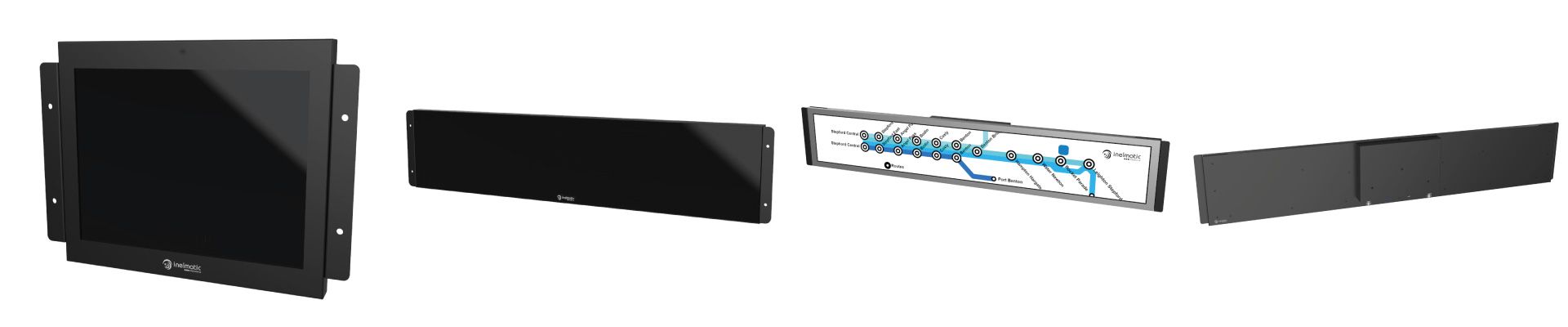

EDO Series
Specially designed for wide sectors:
-
Transportation
-
Industry
-
Military / Marine
-
Healtcare
EDO900
9 inches rugged display:
-
1280x720px (HD720)
-
700 nits
-
Ethernet / USB UART inputs
EDO1000
10 inches rugged display:
-
1024x768px (XGA)
-
600 / 1000 nits
-
Ethernet / USB inputs
EDO1205
12 inches rugged display:
-
1024x768px (XGA)
-
500 nits
-
Ethernet /USB inputs with M12 connectors
EDO1850
18,5 inches FHD touch monitor:
-
1920x1080px
-
350 nits
-
Ethernet /USB inputs
EDO2800
28 inches rugged display:
-
1920x360px
-
700 nits
-
Ethernet / USB / UART inputs
EDO3660
Passenger stops information for metro, train and tram:
-
36.6" in 1920x290px
-
700 nits with a 1200:1 contrast
-
Antiglare and antireflective optical finish

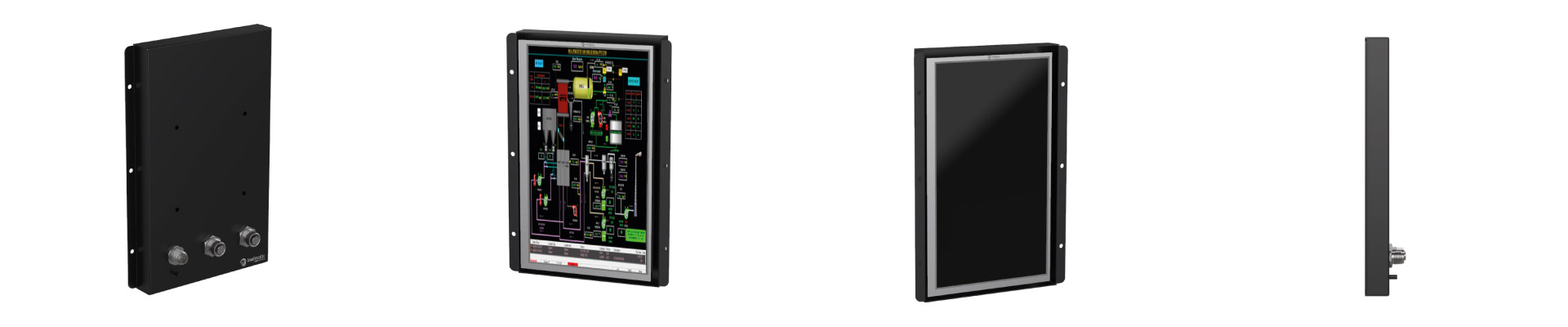

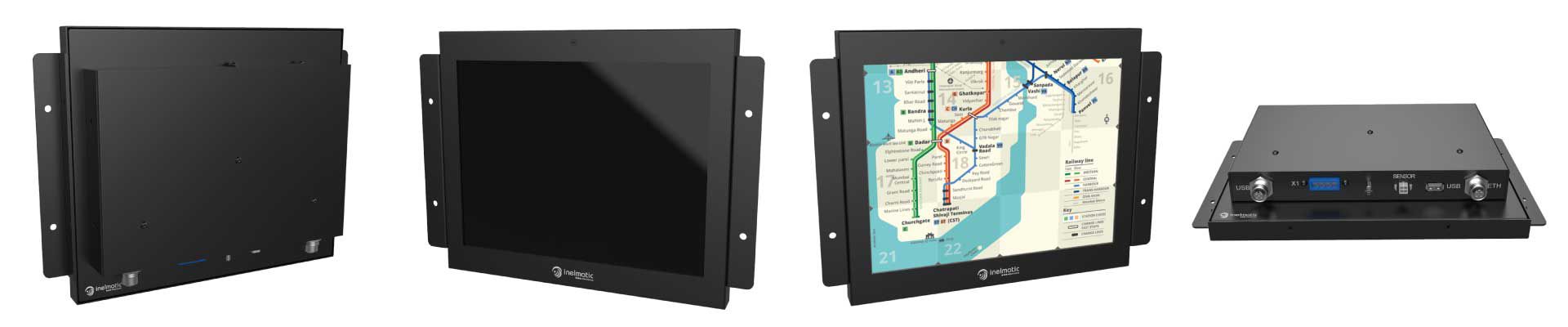

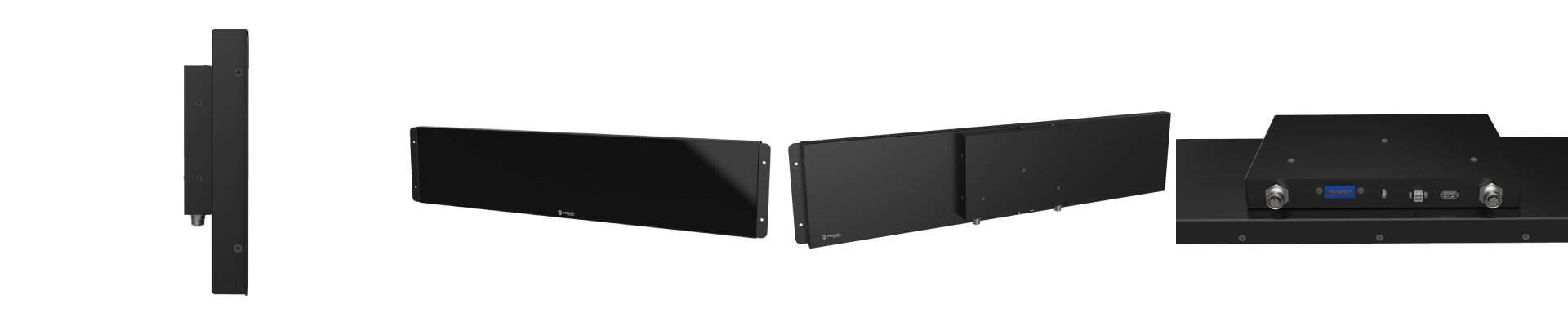

Rugged Open frame HMI screen with CPU - EDO series
EDO Series are industrial grade and vehicular Open Frame display with CPU: Intel Atom or Quad Core ARM. For vehicle integration, this serie is compliance with international regulations for a wide range power supply required in the automotive requirements.
EDO Series include a wide view angle panel and high brightness TFT with a LED backlight. In terms of optical features, there is a optional treatment for Sunlight readable and transflective enhancements. If you want to add interactivity to the products a Resistive & Multi-touch Projected Capacitive touch panel are also available.
The enclosure has been designed specially with a slim and modern frame in steel and aluminium. In all this serie models the dimmer is fully configurable in automatic and manual mode.
| Model | Size | Resolution | CPU |
|
EDO900
|
9" |
1280x720px (HD720) |
Intel / ARM |
|
EDO1000
|
10" |
1024x768px (XGA) |
Intel / ARM |
|
EDO1205
|
12" |
1024x768px (XGA) |
Intel / ARM |
|
EDO1850
|
18.5" | 1920x1080px (FHD) |
Intel / ARM |
|
EDO2800
|
28" |
1920x360px |
Intel / ARM |
|
EDO3660
|
36" |
1920x290px |
Intel / ARM |
General specifications
General
9 / 10 / 12 / 18.5 / 28 / 36 Inches
(Ask for a specific size)
C o l o r s
256K
IP Ingress Protection
IP20, IP42, IP54, IP65 optional
Ethernet / USB /UART
Customizable inputs
Mechanical
Dimension
(see below drawings)
Mount type
Open frame type & VESA 75mm
Operation Temperature
(see produc features)
Vibrations
1G 2-50Hz / 10G 11ms
Applications
Automotive
Railway
Train, metro & Tram
Bus
Bus fleet and bus coaches
Industrial
HMI integrationEDO900
EDO900 is a 9 inches HD720 (1280x720px) open frame screen with integrated CPU for transportation and public vehicles. It has been designed for a very low power consumption and a superfast response time. It’s the ideal solution for integration in bus fleets, bus coaches and railways to obtain important data in real time.
The EDO900 includes a fully configurable manual and automatic dimmer, a high featured controller with automatic and manual backlight adjustment, depending on the ambient light. This is very important for public transportation vehicle drivers which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight. Besides, the EDO900 optionally includes a projected capacitive (PCAP) touch panel.
The EDO900 is available with Ethernet, USB and UART inputs. It can be mounted with VESA75 or stand alone mode.
General specifications
Size
9 inches TFT (HD 720)
Display Area
198.9 × 111.8 mm
Native resolution
1280×720 px HD720
Inputs
Ethernet / USB / UART
Audio
Optional Audio Output Stereo 2x1.5W / 2x5W
Cover Lens / Touch
Glass / PMMA / Projected Capacitive Touch
Power supply
9-36VDC / 43-160VDC / 14-160VDC - Isolated -M12 A Coded
Power consumption
Average: 10W. Maximum 15W
Mounting
Open frame
Warranty
24 months
Certification
EN50155*, EN45545* (*upon request)
IP
IP54 rear side
Response time
15 ms
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17
Frequency
1.8GHz
DDR
Up to 4GB DDR4
Graphics
Mali-T760 MP4 GPU
Storage
Internal 8GB to 16GB eMMC , external TF/SD
Watchdog
Configurable watchdog
CPU Specification (Intel)
Cores
E3815 Single Core / E3825 Dual Core / E3845 Quad Core
Frequency
1.46Ghz / 1.33Ghz / 1.91Ghz
DDR
Up to 4GB DDR4
Graphics
Intel Graphics
Storage
Internal 8GB to 16GB eMMC , external C-FAST / TF
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
153.2 x 222.9 x 19.9mm (see drawing)
Weight
1.5 Kgr
Enclosure
Aluminum, Powder Paint
Operation temperature
-25ºC to 70ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
700 nits
Dimmer
Fully configurable Dimmer with Internal Sensor (optional)
Backlight
LED. min.50000h
MTBF / Lifespan
Controller and LCD: 80.000h
Contrast
1000:1
Angle
170º H, 170º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight readable, NVIS B compliant (opt)
I/O
Ethernet
1 x Base 10/100, Optional Gigabit, M12 Connector D Coded
USB
USB 2.0 (M12 connector)
Ignition
Integrated digital input for IGN control
RS232/485
RS232 / RS485 Port (M12 Connector)
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional DVI / HDMI Output
Audio
Optional Line In / Line Out
EDO1000
EDO1000 is a 10 inches XGA (1024x768px) open frame screen with integrated CPU for public transportation vehicles and industrial environments. It has been designed for a very low power consumption and a superfast response time. This model has been integrated in bus fleets, bus coaches and railways to help vehicle drivers.
The EDO1000 consists of a fully configurable manual as well as an automated dimmer, a high-relief controller with automated and also manual backlight modification, depending on ambient light. This is extremely essential for mass transit car drivers, making it ideal for applications from darkest night (NVIS) to intense sun. In addition, the EDO1000 additionally includes a resistive / projected capacitive touch panel (PCAP).
The EDO1000 is available with Ethernet and USB inputs. It can be mounted with VESA75 or stand alone mode.
General specifications
Size
10.4 inches TFT
Aspect
4:3
Native resolution
1024 x 768 px
Inputs
Ethernet / USB
Audio
Optional Audio Output Stereo 2x1.5W
Touch
Resistive 5 Wires / Projected Capacitive / None
Power supply
9-36VDC / 43-160VDC / 14-160VDC
Power consumption
<20W
Mounting
Stand Alone
Warranty
24 months
Certification
EN50155*, EN45545* (*upon request)
IP
IP42
Response time
16 ms
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17
Frequency
1.8GHz
DDR
Up to 4GB DDR4
Graphics
Mali-T760 MP4 GPU
Storage
Internal 8GB to 16GB eMMC , external TF/SD
Watchdog
Configurable watchdog
CPU Specification (Intel)
Cores
E3815 Single Core / E3825 Dual Core / E3845 Quad Core
Frequency
1.46Ghz / 1.33Ghz / 1.91Ghz
DDR
Up to 4GB DDR4
Graphics
Intel Graphics
Storage
Internal 8GB to 16GB eMMC , external C-FAST / TF
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
286.6 x 207.9 x 30.45mm (see drawing)
Weight
<1500 gr
Enclosure
Plastic / Aluminum
Operation temperature
-20ºC to 70ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
600 nits / 1000 nits
Dimmer
Dimmer with Internal Sensor (optional) or External Sensor (optional)
Backlight
LED. min.50000h
MTBF / Lifespan
Controller and LCD: 100.000h
Contrast
500:1
Angle
170º H, 170º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight readable, NVIS B compliant (opt)
I/O
Ethernet
1 x Base 10/100, Optional Gigabit, M12 Connector D Coded
USB
USB 2.0 x 1 Type A, USB 2.0 x 1 M12 Connector A coded
Ignition
Integrated digital input for IGN control
RS232/485
RS232 / RS485 Port (M12 Connector)
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional DVI / HDMI Output
Audio
Optional Line In / Line Out
EDO1205
EDO1205 is a 12.1 inches XGA (1024x768px) open frame screen with integrated CPU for integration in industrial and automotive environments. It has been designed for a very low power consumption and a superfast response time. It’s the ideal solution for factories with SCADA and MES systems which need to obtain and handle important data in real time.
The EDO1205 contains a fully configurable guidance, as well as an automatic dimmer, a high-relief driver with automated and also manual backlight adjustment, depending on ambient light. This is very important for public transport vehicle drivers, as it is suitable for applications from darkest night (NVIS) to extreme sunlight. In addition, the EDO1205 includes a resistive / projected capacitive touch panel (PCAP).
The EDO1205 is available with Ethernet and USB inputs. It can be mounted with VESA75 or stand alone mode.
General specifications
Size
12.1 inches TFT
Aspect
4:3
Native resolution
1024 x 768 px (XGA)
Inputs
Ethernet / USB
Audio
Optional Audio Output Stereo 2x1.5W
Touch
Resistive 5 Wires / Projected Capacitive / CS Glass / None
Power supply
9-36VDC / 43-160VDC / 14-160VDC
Power consumption
<20W
Mounting
Open Frame
Warranty
24 months
Certification
EN50155*, EN45545* (*upon request)
IP
IP00 Open Frame (IP42 Rear Side)
Response time
25 ms
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17
Frequency
1.8GHz
DDR
Up to 4GB DDR4
Graphics
Mali-T760 MP4 GPU
Storage
Internal 8G eMMC , external TF/SD (Optional)
Watchdog
Configurable watchdog
CPU Specification (Intel)
Cores
E3815 Single Core / E3825 Dual Core / E3845 Quad Core / E3930 Dual Core
Frequency
1.46Ghz / 1.33Ghz / 1.91Ghz / 1.2Ghz
DDR
Up to 8G DDR4
Graphics
Intel Graphics
Storage
Internal 8 to 32G eMMC , external C-FAST / TF
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
277.7 x 204.6 x 48.3mm (see drawing)
Weight
<1.5Kg (without glass protection)
Enclosure
Aluminum, Powder Paint
Operation temperature
-25ºC to 70ºC (optional -40ºC to 70ºC)
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
500 nits, LED backlight
Dimmer
Dimmer with Internal Sensor (optional) or External Sensor (optional)
Backlight
LED. min.50000h
MTBF / Lifespan
Controller and LCD: 100.000h
Contrast
1200:1
Angle
178º H, 178º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight readable and transflective enhacements available
I/O
Ethernet
1 x Base 10/100, Optional Gigabit, M12 Connector D Coded
USB
USB 2.0 x 1 Type A, USB 2.0 x 1 M12 Connector A coded
Ignition
Integrated digital input for IGN control
RS232/485
RS232 / RS485 Port (M12 Connector)
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional DVI / HDMI Output
Audio
Optional Line In / Line Out
EDO1850
EDO1850 is a 18.5 inches Full HD (1920x1080px) open frame screen with integrated CPU for transport and public vehicles. Designed for very low energy consumption and a fast reaction time. It’s the perfect option for integration in bus fleets, bus coaches and also railways to acquire important data in real time.
The EDO1850 consists of a completely configurable manual and automatic dimmer with optional internal and external sensor. Sunlight readable and transflective enhancements available, depending on the ambient light. Besides, the EDO1850 is avaiable with protection glass or touch panel, according to customer specification.
The EDO1850 is offered with Ethernet and USB inputs mounted in an open frame aluminium and powder paint enclosure.
General specifications
Size
18.5 inches Full HD
Display Area
408.96×230.04 mm
Native resolution
1920×1080 px HD1080
Inputs
Ethernet / USB
Audio
Optional Audio Output Stereo 2x1.5W / 2x5W
Cover Lens / Touch
CS Glass / Safety Glass / Projected Capacitive
Power supply
9-36VDC / 43-160VDC / 14-160VDC - M12 A Coded
Power consumption
Average: 25W. Maximum 35W
Mounting
Open frame
Warranty
24 months
Certification
EN50155*, EN45545* (*upon request)
IP
IP0 (Open Frame)
Response time
16 ms
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17
Frequency
1.8GHz
DDR
Up to 4GB DDR4
Graphics
Mali-T760 MP4 GPU
Storage
Internal 8GB to 16GB eMMC , external TF/SD
Watchdog
Configurable watchdog
CPU Specification (Intel)
Cores
E3815 Single Core / E3825 Dual Core / E3845 Quad Core
Frequency
1.46Ghz / 1.33Ghz / 1.91Ghz
DDR
Up to 4G DDR4
Graphics
Intel Graphics
Storage
Internal 8GB to 16GB eMMC , external C-FAST / TF
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
477.46 x 279.25 x 54.4 mm (see drawing)
Weight
6 Kg (CS Glass 5mm)
Enclosure
Aluminum, Powder Paint
Operation temperature
-25ºC to 70ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
350 nits, optional 500 nits
Dimmer
Fully configurable Dimmer with Internal Sensor (optional) and External Sensor (optional)
Backlight
LED. min 50.000h
MTBF / Lifespan
Controller and LCD: >80.000h
Contrast
1200:1
Angle
178º H, 178º V
Optical finish
Anti-glare / Anti-reflective / None (optional)
Enhancements
Sunlight readable and Transflective Enhancements Available (optional)
I/O
Ethernet
1 x Base 10/100, Optional Gigabit, M12 Connector D Coded
USB
USB 2.0 x 1 Type A
Ignition
Integrated digital input for IGN control
RS232/485
RS232 / RS485 Port (optional)
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional DVI / HDMI Output
Audio
Optional Line In / Line Out
EDO2800
EDO2800 is a 28-inch (1920x360) open frame display with a built-in CPU for public transport cars. It is created for very real reduced power consumption and also super fast reaction time. It is the optimal choice for providing information to travelers in detail in train, subway and streetcar.
The EDO2800 includes a fully configurable manual and automatic dimmer, a high featured controller with automatic and manual backlight adjustment, depending on the ambient light. This is very important for passenger visibility when there are sudden changes in exterior light. Besides, the EDO2800 optionally includes a projected capacitive (PCAP) touch panel and a CS glass or a safety glass.
The EDO2800 is available with Ethernet, UART and USB inputs. It can be mounted with VESA75 or stand alone mode.
General specifications
Size
28 inches TFT
Aspect
16:3
Native resolution
1920 x 360 px (display Area 699.8 x 131.2 mm)
Inputs
Ethernet / USB / UART
Audio
Optional Audio Output Stereo 2x1.5W / 2x5W
Cover Lens / Touch
CS Glass / Safety Glass / Projected Capacitive / None
Power supply
9-36VDC / 43-160VDC / 14-160VDC - M12 A Coded
Power consumption
20W average, 30W max
Mounting
Stand Alone, rear custom fixtures
Warranty
24 months
Certification
EN50155* EN45545* (*upon request)
Response time
16 ms
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17
Frequency
1.8GHz
DDR
Up to 4GB DDR4
Graphics
Mali-T760 MP4 GPU
Storage
Internal 8GB to 16GB eMMC , external TF/SD
Watchdog
Configurable watchdog
CPU Specification (Intel)
Cores
E3815 Single Core / E3825 Dual Core / E3845 Quad Core
Frequency
1.46Ghz / 1.33Ghz / 1.91Ghz
DDR
Up to 4GB DDR4
Graphics
Intel Graphics
Storage
Internal 8GB to 16GB eMMC , external C-FAST / TF
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
735.75 x 168.5 x 50 mm (see drawing)
Weight
4.5 Kg
Enclosure
Aluminum, Powder Paint
Operation temperature
-25ºC to 55ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
700 nits
Dimmer
Fully configurable Dimmer with Internal Sensor (optional). External Sensor (optional)
Backlight
LED : 50.000h
MTBF / Lifespan
Controller and LCD> 80.000h
Contrast
Min 1200:1
Angle
178º H, 178º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight readable, NVIS B compliant (opt)
I/O
Ethernet
1 x Base 10/100, Optional Gigabit, M12 Connector D Coded
Daisy Chan
DVI/HDMI or Ethernet
USB
USB 2.0 x 1 Type A
Ignition
Integrated digital input for IGN control
RS232/485
RS232 / RS485 Port (M12 Connector)
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional DVI / HDMI Output
Audio
Optional Line In / Line Out
EDO3660
EDO3660 is a 36 inches (1920x290px) open frame screen with integrated CPU for public transportation vehicles. It has been designed for a very low power consumption and a superfast response time. It’s the ideal solution for integration as passenger stops information display in railway: train, metro and tram.
The EDO3660 includes a fully configurable manual and automatic dimmer, a high featured controller with automatic and manual backlight adjustment, depending on the ambient light. This is very important for passenger visibility when there are sudden changes in exterior light. Besides, the EDO2800 optionally includes a projected capacitive (PCAP) touch panel and a CS glass or a safety glass.
The EDO3660 is available with Ethernet, UART and USB inputs. It can be mounted with VESA75 or stand alone mode.
General specifications
Size
36.6 inches TFT
Aspect
16:2.4
Native resolution
1920 x 290 px
Inputs
Ethernet / USB / UART
Audio
Optional Audio Output Stereo 2x1.5W / 2x5W
Cover Lens / Touch
CS Glass / Safety Glass / Projected Capacitive / None
Power supply
9-36VDC / 43-160VDC / 14-160VDC - M12 A Coded
Power consumption
30W average, 45W max.
Mounting
Open Frame / Panel Mount
Warranty
24 months
Certification
EN50155* EN45545* (*upon request)
Response time
16 ms
CPU Specification (ARM)
Cores
Quad-core ARM Cortex-A17
Frequency
1.8GHz
DDR
Up to 4GB DDR4
Graphics
Mali-T760 MP4 GPU
Storage
Internal 8GB to 16GB eMMC , external TF/SD
Watchdog
Configurable watchdog
CPU Specification (Intel)
Cores
E3815 Single Core / E3825 Dual Core / E3845 Quad Core
Frequency
1.46Ghz / 1.33Ghz / 1.91Ghz
DDR
Up to 4GB DDR4
Graphics
Intel Graphics
Storage
Internal 8GB to 16GB eMMC , external C-FAST / TF
Watchdog
Configurable watchdog
Mechanical specifications
Dimensions
964.5 x 175 x 45.8 mm (see drawing)
Weight
6 Kg
Enclosure
Aluminum, Powder Paint
Operation temperature
-25ºC to 55ºC
Vibrations
1G 2-500Hz
Shock
10G 11ms
Optical specifications
Brightness
700 nits
Backlight
50.000h @700nits , 80,000h @ 400 nits
MTBF / Lifespan
LED> 80.000h
Contrast
Min 1200:1
Angle
178º H, 178º V
Optical finish
Anti-glare / Anti-reflective / None
Enhancements
Sunlight Readable and Transfletive
I/O
Ethernet
1 x Base 10/100, Optional Gigabit, M12 Connector D Coded
Daisy Chan
DVI/HDMI or Ethernet
USB
USB 2.0 x 1 Type A
Ignition
Integrated digital input for IGN control
RS232/485
RS232 / RS485 Port (M12 Connector)
Digital I/O
8 Input or 4 in 4 Out (Optional)
Video
Optional DVI / HDMI Output
Audio
Optional Line In / Line Out
Contact
Technical support
Our support team will help you to achieve your requirements
