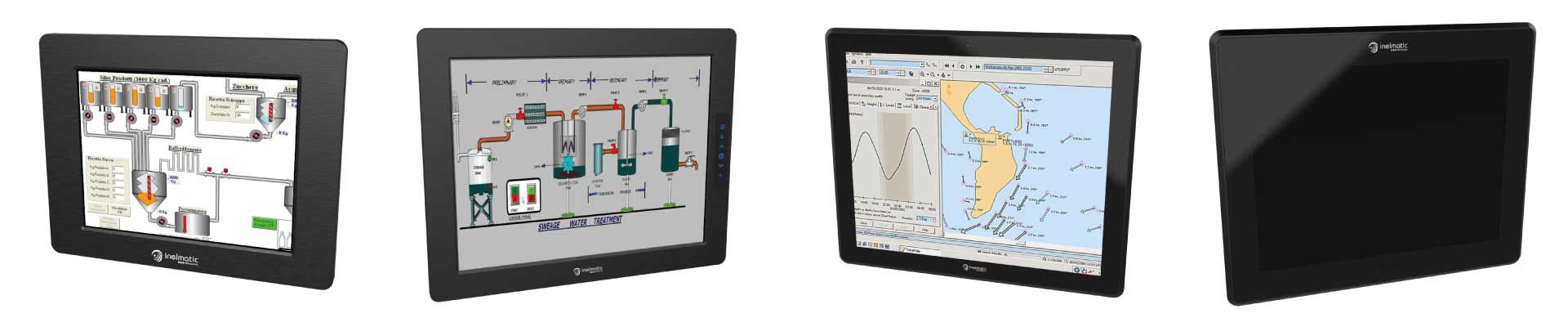

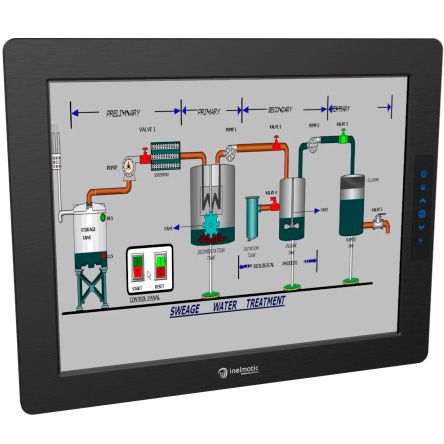

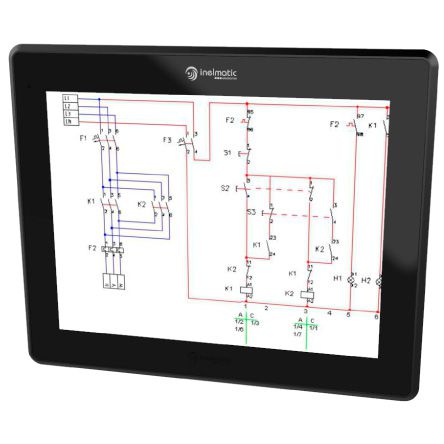

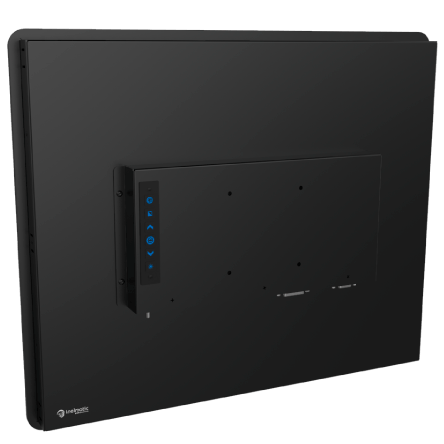

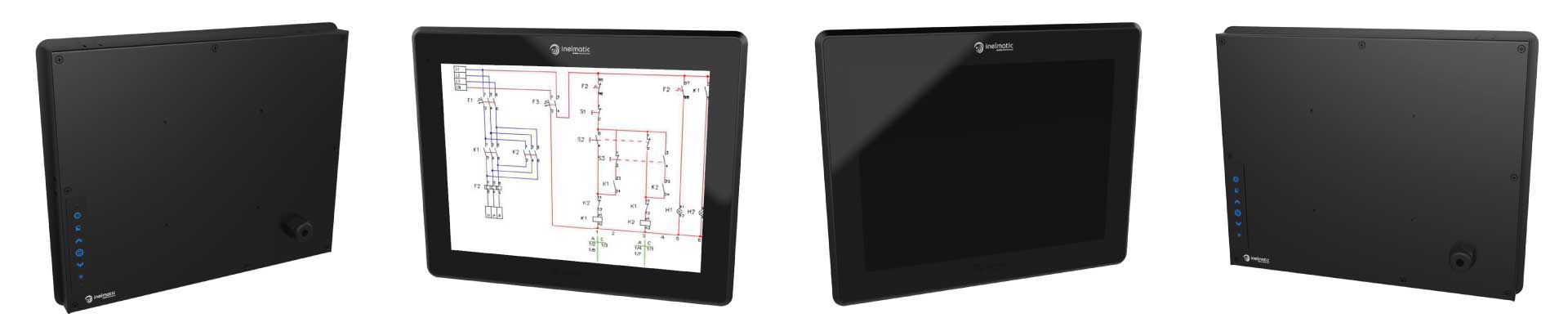

Industrial milling metal displays - MAF series

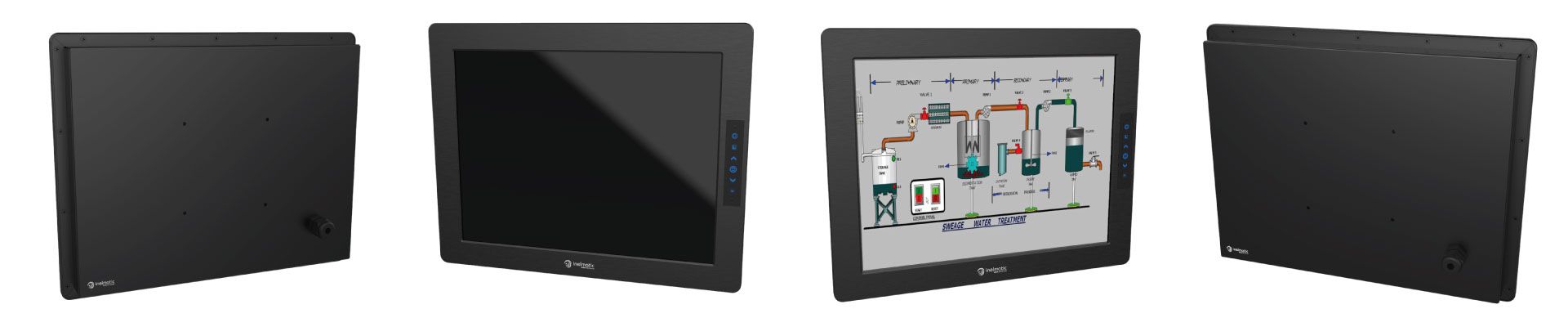

MAF Series is the generation rugged milling metal frame monitor with waterproof function, which follow IP65 ingress protection (IP67 optional), low power consumption and super fast response time. They are the ideal solution for outdoor usage or harsh environments.

In this serie all the products include a high featured controller with automatic and manual backlight adjustment, depending on the ambient light, which makes it suitable for applications from the darkness night (NVIS) to the bright sunlight.  These enhancements have been researched and developed in the Inelmatic Optical laboratory©.

Besides, optionally include a Resistive and capacitive (PCAP) touch scree panel with USB controller, adding interactivity.

Model Size Resolution Keypad
MAF700
7"
800x480px (XVGA)

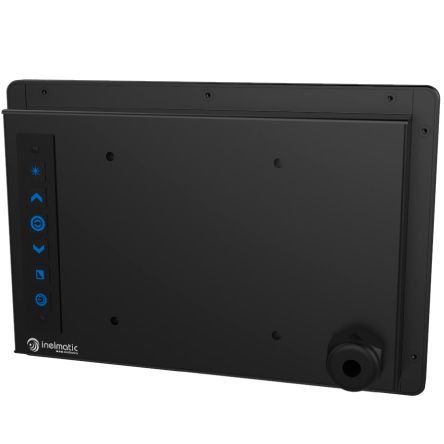

Rear
MAF800
8"
800x600px (SVGA)
Front / Rear
MAF1000
10"
1024x768px (XGA)
Front / Rear
MAF1200
12"
1024x768px (XGA)
Rear
MAF1500
15"
1024x768px (XGA)
Rear
MAF1901
19"
1280x1024px (SXGA)
Rear

General specifications

General

7 / 8 / 10 / 12 / 15 / 19 Inches

(Ask for a specific size)

C o l o r s

256K

Autopower on/off

Composite video input

LVDS / VGA / DVI / HDMI

Customizable inputs

Mechanical

Dimension

(see below drawings)

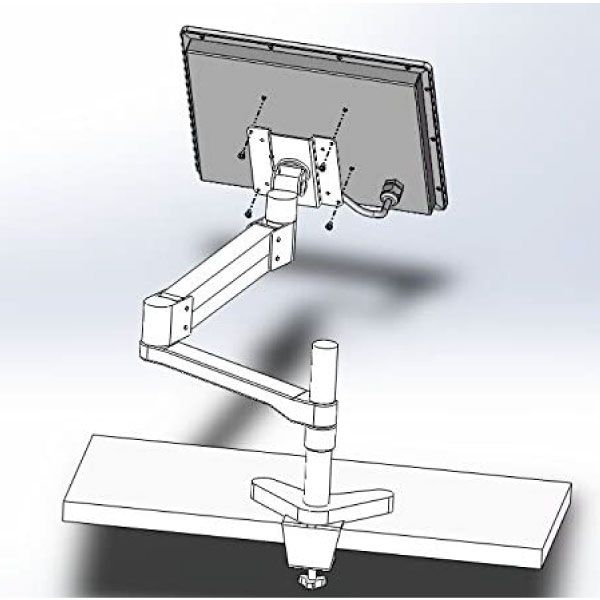

Mount type

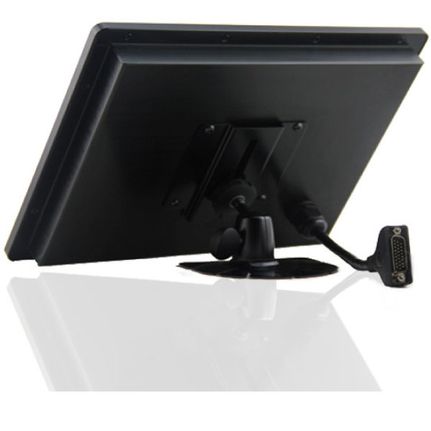

Panel mount type & VESA 75mm

Operation Temperature

-10ºC to +70ºC

Vibrations

1G 2-50Hz / 10G 11ms

Applications

Vehicle


Public transport


Industrial


Healthcare

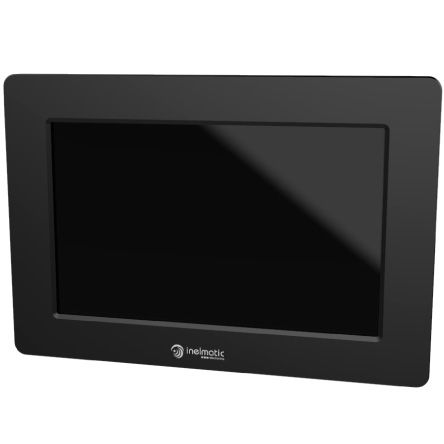

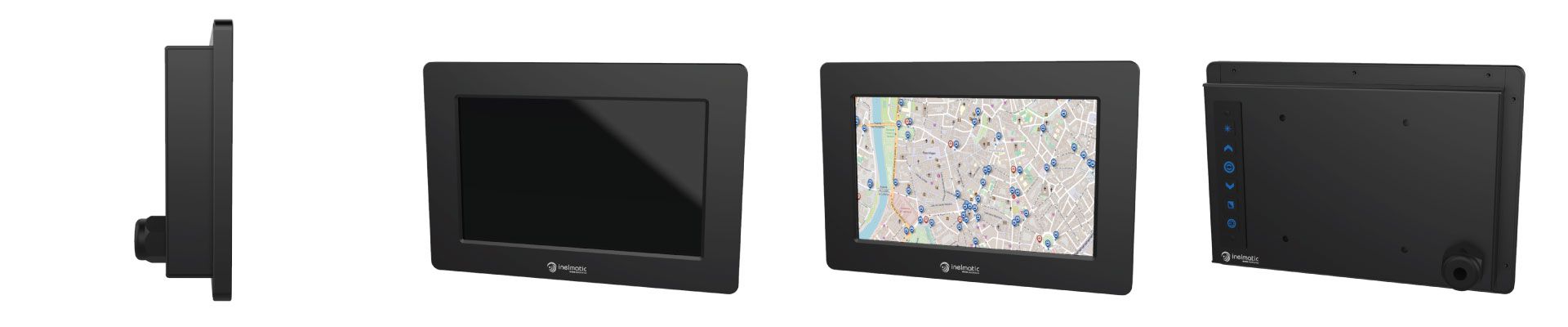

MAF700

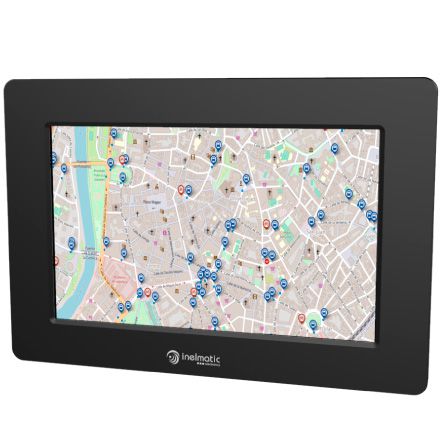

MAF700 belongs to the new generation of rugged milling metal frame monitor with waterproof function, which follow IP65 ingress protection (IP67 optional), low power consumption, super fast response time. It’s the ideal solution for outdoor usage, or harsh environments.

It includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night(NVIS) to the bright sun light. Besides, the MAF700 optionally includes a resistive / capacitive (PCAP) touch panel with USB controller, adding interactivity.

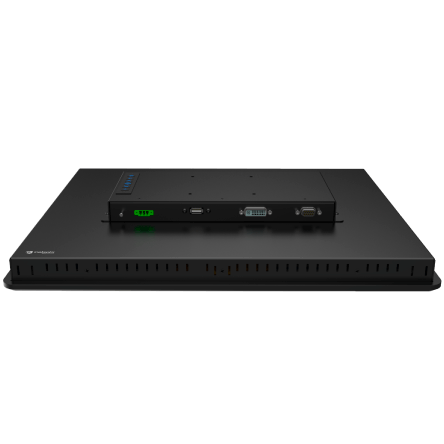

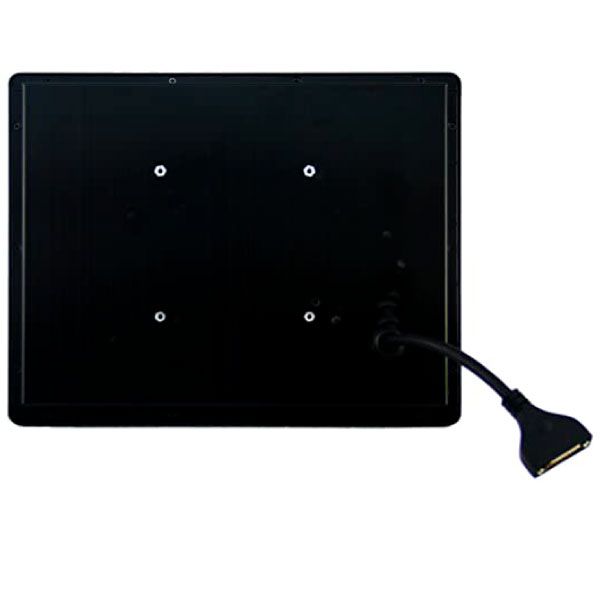

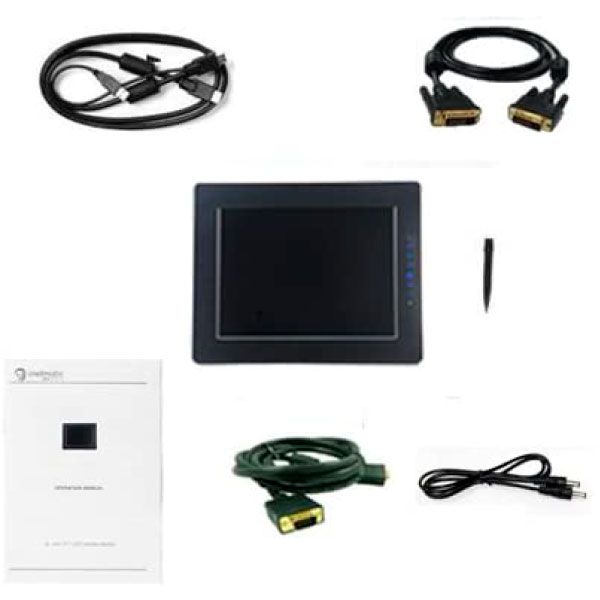

MAF700 is available with VGA input as standard, optional DVI / HDMI, Composite Video and S-Video inputs. All inputs are available as factory option on the rear panel. Optionally it includes “all-in-one cable”, with a lockable connector for an easy and quick installation.

General specifications

Size

7 inches XGA TFT

Aspect

16:9

Native resolution

800x480px

Inputs

VGA / DVI / HDMI / 2xAV (opt)

Audio

No Audio

Touch Panel

Resistive/Capacitive touch(PCAP),
3mm Chemically Strengthened Cover Lens

Power supply

9-36V DC

Power consumption

6W

Mounting

VESA 75mm, customization available

Warranty

12 months international, 24 months Europe

Certification

CE*, e-mark*, EN50155*  (*upon request)

Applications

Industrial / Vehicular

Response time

16 ms

Mechanical specifications

Dimensions

200.4 x 137.4 x 35mm (see drawing)

Weight

1050 gr

Enclosure

Milled Aluminium, folded Aluminium

Operation temperature

-30ºC to 75ºC

Vibrations

1G 5-500Hz

Shock

40G 11ms

Optical specifications

Brightness

600 nits

Backlight

LED backlight

Backlight lifetime

min. 50.000h

Contrast

500:1

Angle

160º H, 140º V

Outdoor readability

MIL-STD-3009

Enhancements

Sunlight readable, NVIS B compliant (opt)

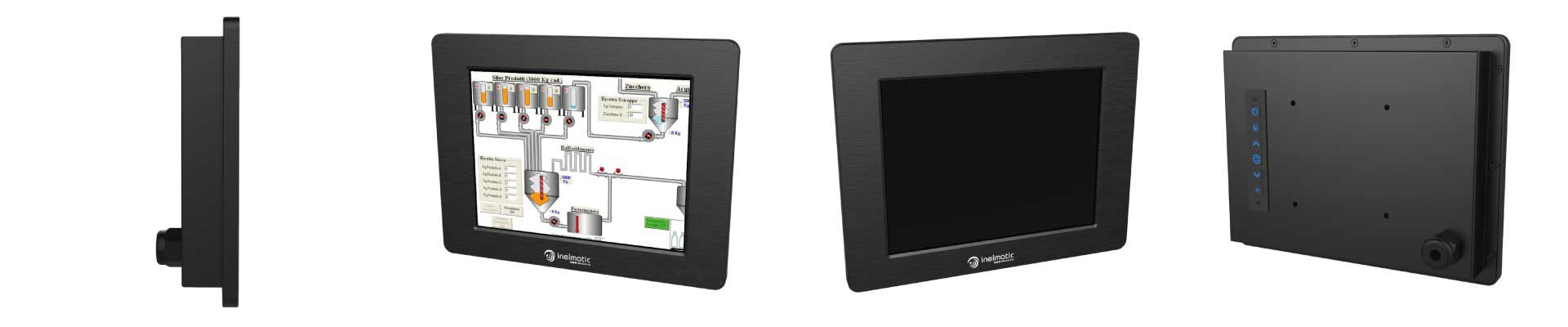

MAF800


MAF800 is a SVGA 8" inch (800x600px) rugged milling metal frame monitor with waterproof function, which follow IP65 ingress protection (IP67 optional), low power consumption, super fast response time. It’s the ideal solution for outdoor usage, or harsh environments.

It includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night(NVIS) to the bright sun light. Besides, MAF800 optionally includes a resistive / capacitive touch panel with USB controller, adding interactivity.

MAF800 is available with VGA and Audio input as standard, optional DVI/HDMI, Composite Video and S-Video inputs. All inputs are available as factory option on the rear panel. Optionally it includes “all in one cable”, with a lockable connector for an easy and quick installation.

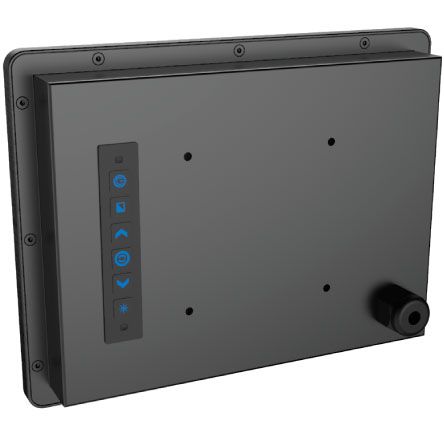

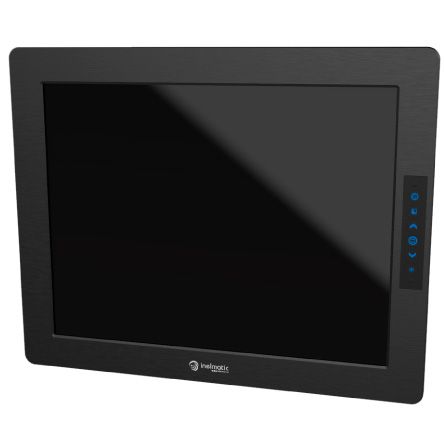

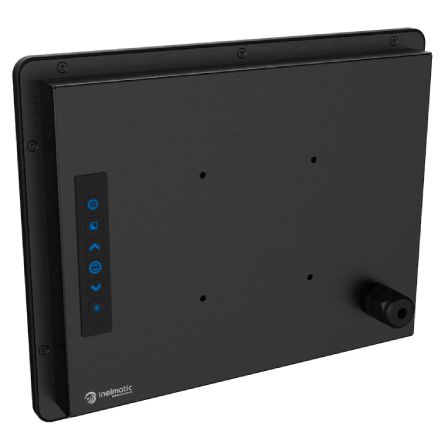

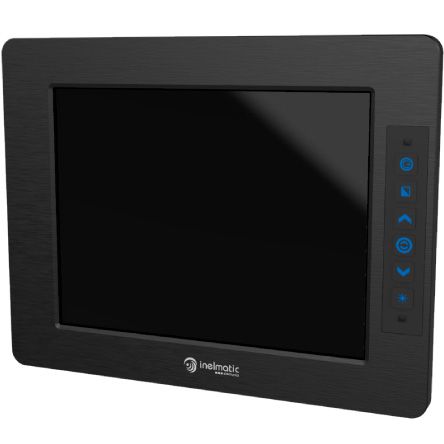

There are two keypad configurations: front or rear keypad.

General specifications

Size

8 inches XGA TFT

Aspect

4:3

Native resolution

800x600px

Inputs

VGA / DVI / HDMI / 2xAV (opt)

Audio

No Audio

Touch Panel

Resistive / Capacitive touch (PCAP)

Cover Lens

3mm Chemically Strengthened Cover Lens

Power supply

9-36V DC

Power consumption

Normal 6W, HB 8W

Mounting

VESA 75mm, customization available

Warranty

12 months international, 24 months Europe

Certification

CE*, e-mark*, EN50155*  (*upon request)

Applications

Industrial / Vehicular

Response time

16 ms

Mechanical specifications

Dimensions

222 x 165.5 x 35.8mm (see drawing)

Weight

1250 gr

Enclosure

Milled Aluminium, folded Aluminium

Operation temperature

-30ºC to 75ºC

Vibrations

1G 5-500Hz

Shock

40G 11ms

Optical specifications

Brightness

500/1000 nits

Backlight

LED backlight

Backlight lifetime

min. 50.000h

Contrast

500:1

Angle

178º H, 178º V

Outdoor readability

MIL-STD-3009

Enhancements

Sunlight readable, NVIS B compliant (opt)

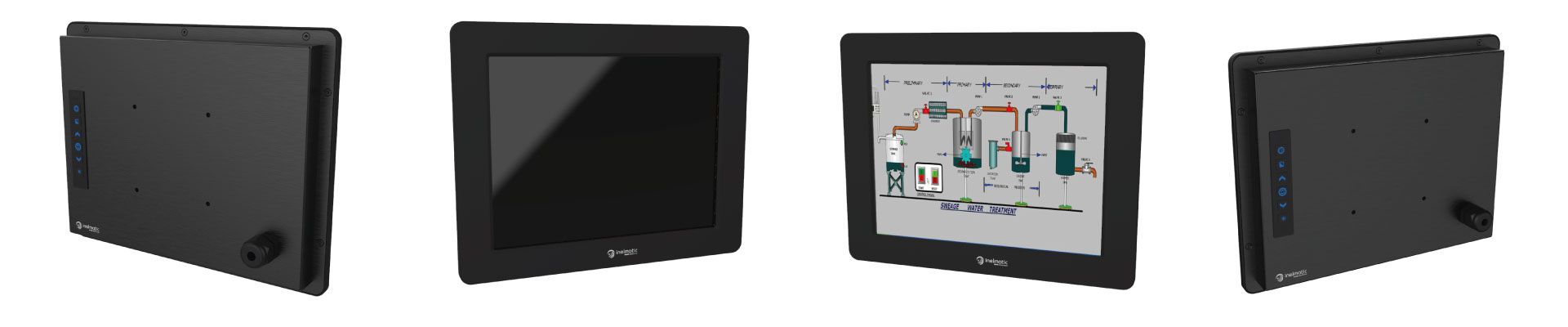

MAF1000


MAF1000 is a XGA 10" inch (1024x768px) rugged milling metal frame monitor with waterproof function, which follow IP65 ingress protection (IP67 optional), low power consumption, super fast response time. It’s the ideal solution for outdoor usage, or harsh environments.

It includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sun light. Besides, the MAF1000 optionally includes a resistive / capacitive (PCAP) touch panel with USB controller, adding interactivity.

MAF1000 is available with VGA input as standard, optional DVI / HDMI, Composite Video and S-Video inputs. All inputs are available as factory option on the rear panel. Optionally it includes “all-in-one cable”, with a lockable connector for an easy and quick installation.

There are two keypad configurations: front or rear keypad.

General specifications

Size

10 inches XGA TFT

Aspect

4:3

Native resolution

1024x768px

Inputs

VGA / DVI / HDMI / 2xAV (opt)

Audio

No Audio

Touch Panel

Resistive/Capacitive touch(PCAP),
3mm Chemically Strengthened Cover Lens

Power supply

9-36V DC

Power consumption

6W

Mounting

VESA 75mm, customization available

Warranty

12 months international, 24 months Europe

Certification

CE*, e-mark*, EN50155*  (*upon request)

Applications

Industrial / Vehicular

Response time

16 ms

Mechanical specifications

Dimensions

200.4 x 137.4 x 35mm (see drawing)

Weight

1050 gr

Enclosure

Milled Aluminium, folded Aluminium

Operation temperature

-30ºC to 75ºC

Vibrations

1G 5-500Hz

Shock

40G 11ms

Optical specifications

Brightness

400/600/1200 nits

Backlight

LED backlight

Backlight lifetime

min. 50.000h

Contrast

500:1

Color

256.000

Outdoor readability

MIL-STD-3009

Enhancements

Sunlight readable, NVIS B compliant (opt)

MAF1200


MAF1200  is a XGA 12" inch (1024x768px) rugged milling metal frame monitor with waterproof touch screen function, which follow IP65 ingress protection (IP67 optional), low power consumption, super fast response time. It’s the ideal solution for outdoor usage, or harsh environments.

It includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight. Besides, the MAF1200 optionally includes a resistive / capacitive touch panel with USB controller, adding interactivity.

MAF1200 is available with VGA input as standard, optional DVI/HDMI, Composite Video and S-Video inputs. All inputs are available as factory option on the rear panel. Optionally it includes “all-in-one cable”, with a lockable connector for an easy and quick installation.

General specifications

Size

12.1 inches XGA TFT

Aspect

4:3

Native resolution

1024x768px

Inputs

VGA / DVI / HDMI / 2xAV (opt)

Audio

No Audio

Touch Panel

Resistive/Capacitive touch(PCAP),
3mm Chemically Strengthened Cover Lens

Power supply

9-36V DC

Power consumption

12-14W

Mounting

VESA 75mm, customization available

Warranty

12 months international, 24 months Europe

Certification

CE*, e-mark*, EN50155*  (*upon request)

Applications

Industrial / Vehicular

Response time

16 ms

Mechanical specifications

Dimensions

315.8 x 260.3 x 33mm (see drawing)

Weight

1450 gr

Enclosure

Milled Aluminium, folded Aluminium

Operation temperature

-20ºC to 70ºC

Vibrations

1G 5-500Hz

Shock

40G 11ms

Optical specifications

Brightness

600 nits

Backlight

LED backlight

Backlight lifetime

min. 50.000h

Contrast

500:1

Angle

178º H, 178º V

Outdoor readability

MIL-STD-3009

Enhancements

Sunlight readable, NVIS B compliant (opt)

MAF1500


MAF1500 is a XGA 15" inch (1024x768px) rugged milling metal frame monitor with waterproof function , which follow IP65 ingress protection (IP67 optional), low power consumption, super fast response time. It’s the ideal solution for outdoor usage, or harsh environments.

It includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night(NVIS) to the bright sun light. Besides, the MAF1200 optionally includes a resistive / capacitive touch panel with USB controller, adding interactivity.

MAF1500 is available with VGA input as standard, optional DVI/HDMI, Composite Video and S-Video inputs. All inputs are available as factory option on the rear panel. Optionally it includes “all-in-one cable”, with a lockable connector for an easy and quick installation.

For further details, ask for datasheet or contact our sales and technical team.

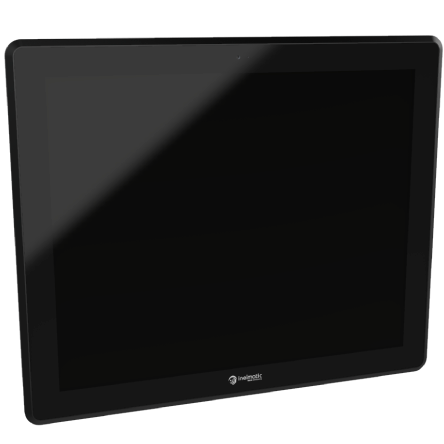

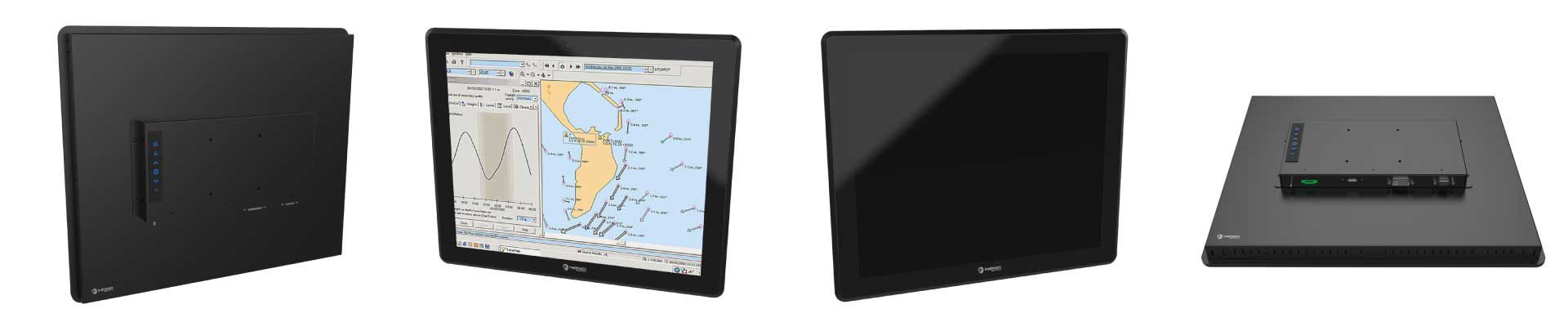

MAF1901


MAF1901 is a SXGA 19" inch (1280x1024px) rugged milling metal frame monitor with waterproof function , which follow IP65 ingress protection (IP67 optional), low power consumption, super fast response time. It’s the ideal solution for outdoor usage, or harsh environments.

It includes a high featured controller with automatic and manual backlight adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sunlight. Besides, the MAF1200 optionally includes a resistive / capacitive touch panel with USB controller, adding interactivity.

MAF1500 is available with VGA input as standard, optional DVI/HDMI, Composite Video and S-Video inputs. All inputs are available as factory option on the rear panel. Optionally it includes “all-in-one cable”, with a lockable connector for an easy and quick installation.

For further details, ask for datasheet or contact our sales and technical team.
