VDS1600

Infotainment content player

Inelmatic as a leading manufacturer of electronic devices with more than 15 years of experience in the sector, we would like to present our device VDS1600, with a design, quality and manufacturing of the best quality.

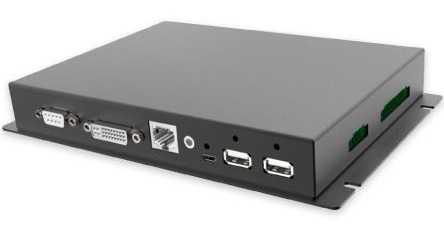

Embedded display VDS1600 - Inelmatic

Designed to be used as digital signage for advertising in public areas and for passenger information systems (PIS) in transportation such as bus, railway and metro

Together with the BA series, the VDS1600 has been used as a public transport content player on EMT buses in Madrid

What embedded means - Inelmatic

Photo: www.madridmobilite.com

But what is an infotainment system?

With a combination of information and entertainment, an infotainment system is one that concentrates connectivity, entertainment and information applications into a single interface to facilitate.

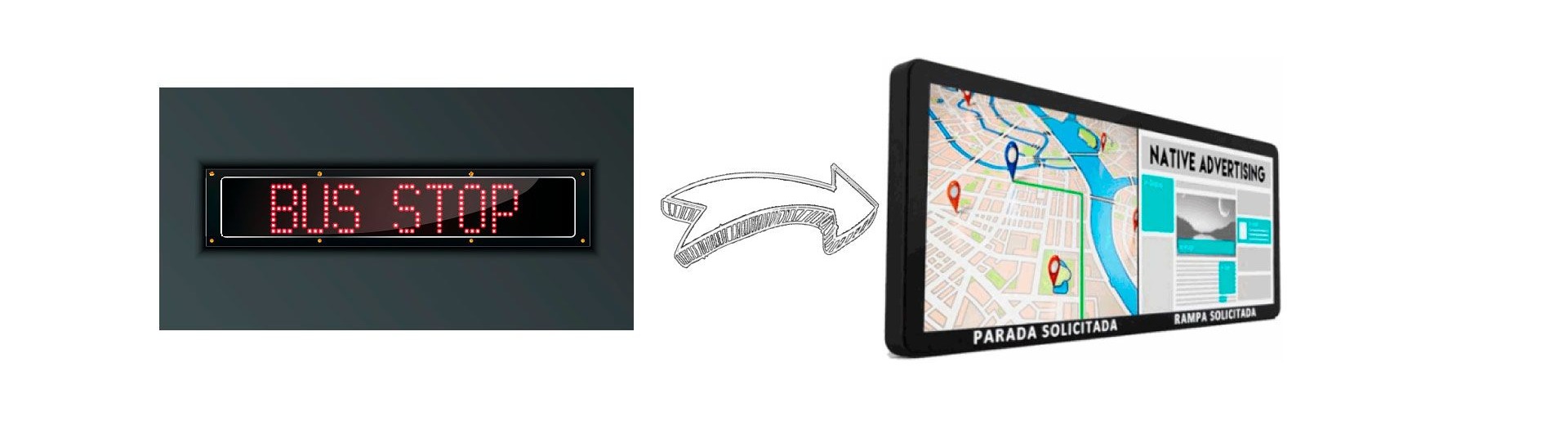

Inelmatic designs and manufactures displays for information systems, using the latest backlight technology with a fanless design so that the displays are maintenance free. They include an anti-vandal cover that protects the display from unintentional or intentional damage as well as easy cleaning with liquids. They enable transport operators to provide passengers with textual and graphical information to make their journey safe and trouble-free.

displays for information systems - Inelmatic

Specifically the VDS 1600 is an android player with the following basic structure. For more information review the datasheet or contact our experts.

VDS1600 basic structure - Inelmatic

CPU

Single, Dual, Quad

Memory

DDR4 1G, 2G, 4G

Dimensions

200 x 135 x 30 mm

Operating temperature

-20ºC to 70ºC

Vibration

2G 2-500Hz / 25G 6ms

Power consumption

7W maximum

Power supply

  12/24VCC   9/36VCC

outputs

               DVI-D                 Optional: HDMI, LVDS

I/O

RS323/RS885, USB 2.0, UART, Ethernet, Wifi, 4G

Contact us

For further information or any questions, please contact us
